Can the Quad coupling K, stainless steel (24Â° DIN 2353 socket, external metric threads) be used in seawater or corrosive environments?

Yes . Quad coupling K, stainless steel (24Â° DIN 2353 socket, external metric threads) made of AISI 316 steel is generally suitable for seawater and many corrosive environments. AISI 316 (marine-grade) stainless steel has molybdenum added for improved resistance to chloride-induced pitting and crevice corrosion versus 304 stainless, making it commonly specified for marine and offshore applications. However, suitability depends on specifics: - Seawater exposure: AISI 316 performs well in atmospheric and intermittent seawater exposure and in many seawater systems, but continuous immersion in warm, oxygenated seawater or areas with high flow and turbulence can accelerate localized corrosion (pitting, crevice corrosion). For prolonged, severe seawater service, duplex stainless steels, super-austenitics, or non-ferrous alloys (e.g., titanium, superaustenitic alloys) may be preferable. - Galvanic corrosion: When connected to dissimilar metals, galvanic corrosion risk exists. Ensure compatible materials or use isolation measures. - Fluids and chemicals: âCorrosive environmentsâ covers a wide range; AISI 316 resists many acids and salts but is not universally resistant (e.g., strong chlorides, reducing acids, or high-temperature acidic conditions may attack it). - Threads and seals: Threads, fittings, and any sealing materials (O-rings, coatings) must also be compatible with seawater/corrosive media. - Maintenance and inspection: Regular inspection, cleaning, and cathodic protection (where appropriate) extend service life. Conclusion: Quad coupling K, stainless steel (AISI 316) is suitable for many seawater and corrosive applications but verify the specific service conditions (temperature, flow, chloride concentration, dissimilar metals, and required lifetime). For severe or critical marine service, consider higher-grade alloys or consult a corrosion specialist.

Is Quad coupling K, stainless steel suitable for use with potable water systems or drinking water applications?

Quad coupling K, stainless steel (AISI 316) is made from a corrosion-resistant grade commonly used in potable water systems and drinking water applications. AISI 316 offers good resistance to chlorides and general corrosion, making it suitable for many water environments. However, suitability also depends on surface finish, potential leachable contaminants, seals/gaskets (if any), and applicable local drinking-water approvals or standards. DIN 2353 four-way connector, type K (24Â° socket, external metric threads) in AISI 316 is materially appropriate, but you should verify compliance with local potable-water certifications (e.g., NSF/ANSI, WRAS, ACS) and ensure any non-metallic components meet drinking-water requirements before use.

What maintenance intervals are recommended for Quad coupling K, stainless steel to ensure reliable performance?

Recommended maintenance intervals for Quad coupling K, stainless steel to ensure reliable performance: - Daily/Before use: Visual inspection for external damage, corrosion, cracks, or deformation of threads and sealing faces. Check for leaks during pressure test or brief operation. - Weekly (light/low-duty applications): Clean external surfaces and threads, remove debris and deposits, verify thread engagement and tightness, inspect O-rings or seals if fitted. - Monthly (typical industrial use): Perform more thorough inspection: disassemble connector (if applicable), inspect sealing surfaces (24Â° DIN 2353 cone) for nicks or wear, inspect mating components, replace any damaged seals, apply corrosion-inhibiting lubricant suitable for AISI 316 stainless steel threads if required. - Quarterly (heavy-duty, high-pressure, or safety-critical systems): Full functional test under working pressure, dimensional check of fittings and cones for wear beyond allowable limits, replace seals and any suspect components, verify torque values and thread condition. - Annually: Comprehensive service: strip, clean, ultrasonic if needed, inspect for material fatigue or corrosion (pitting, crevice corrosion), perform pressure and leak tests to certification standard, replace seals and any components showing wear, update records. - After any adverse event: Immediate inspection and service following overpressure, impact, or contamination incident. Notes specific to Quad coupling K, stainless steel (AISI 316, 24Â° DIN 2353): AISI 316 offers good corrosion resistance, but environments with chlorides or aggressive chemicals require more frequent inspection. Light-series (L) may need more frequent checks under heavy loads than heavy-series (S). Adjust intervals based on actual service conditions (pressure cycles, temperature, media, environmental corrosion). Always follow manufacturer torque and assembly instructions and replace fittings that show wear exceeding DIN 2353 tolerances.

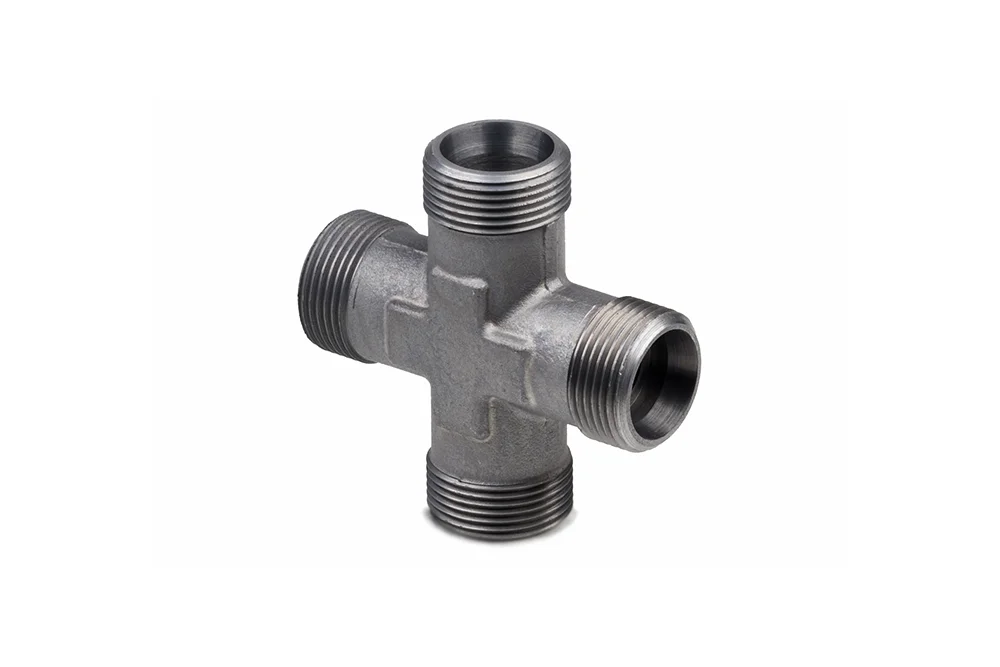

Raccord en croix K, acier inoxydable

Informations complémentaires

Matériau	SS – acier inoxydable

Raccord DIN 2353 en croix, type K : douille 24° DIN 2353 avec filetages mâles métriques. Disponible en : L (série légère), S (série lourde). Matériau : acier AISI 316.

Liste des variantes de produit

Référence article	Nom de la variante du produit	DN	BAR	Disponibilité	Actions
HD-K-06L-SS	Raccord DIN 2353 K 6L, AISI 316	-	315	En stock	Demande
HD-K-06S-SS	Raccord DIN 2353 K 6S, AISI 316	-	630	En stock	Demande
HD-K-08L-SS	Raccord DIN 2353 K 8L, AISI 316	-	315	En stock	Demande
HD-K-08S-SS	Raccord DIN 2353 K 8S, AISI 316	-	630	En stock	Demande
HD-K-10L-SS	Raccord DIN 2353 K 10L, AISI 316	-	315	En stock	Demande
HD-K-10S-SS	Raccord DIN 2353 K 10S, AISI 316	-	630	En stock	Demande
HD-K-12L-SS	Raccord DIN 2353 K 12L, AISI 316	-	315	En stock	Demande
HD-K-12S-SS	Raccord DIN 2353 K 12S, AISI 316	-	630	En stock	Demande
HD-K-14S-SS	Raccord DIN 2353 K 14S, AISI 316	-	630	En stock	Demande
HD-K-15L-SS	Raccord DIN 2353 K 15L, AISI 316	-	315	En stock	Demande
HD-K-16S-SS	Raccord DIN 2353 K 16S, AISI 316	-	400	En stock	Demande
HD-K-18L-SS	Raccord DIN 2353 K 18L, AISI 316	-	315	En stock	Demande
HD-K-20S-SS	Raccord DIN 2353 K 20S, AISI 316	-	400	En stock	Demande
HD-K-22L-SS	Raccord DIN 2353 K 22L, AISI 316	-	160	En stock	Demande
HD-K-25S-SS	Raccord DIN 2353 K 25S, AISI 316	-	400	En stock	Demande
HD-K-28L-SS	Raccord DIN 2353 K 28L, AISI 316	-	160	En stock	Demande
HD-K-30S-SS	Raccord DIN 2353 K 30S, AISI 316	-	400	En stock	Demande
HD-K-35L-SS	Raccord DIN 2353 K 35L, AISI 316	-	160	En stock	Demande
HD-K-38S-SS	Raccord DIN 2353 K 38S, AISI 316	-	315	En stock	Demande
HD-K-42L-SS	Raccord DIN 2353 K 42L, AISI 316	-	160	En stock	Demande

Vous avez besoin d'une plus grande quantité de produits ou d'un devis personnalisé ?

Appelez-nous : +33 679 352 568 ou envoyez-nous un e-mail : wirthjeanpierre@aol.fr

Envoyer une demande

Raccord DIN 2353 en croix, type K : douille 24° DIN 2353 avec filetages mâles métriques. Disponible en : L (série légère), S (série lourde). Matériau : acier AISI 316.
