Is the WSV bulkhead angle fitting, carbon steel, compatible with 24Â° DIN 2353 hoses and standard metric external threads on both sides?

Yes. The WSV bulkhead angle fitting, carbon steel is compatible with 24Â° DIN 2353 hoses and with standard metric external threads on both sides. The product description specifies a 24Â° DIN 2353 socket and external metric threads on both ends, and it is supplied with a counter nut for proper connection to DIN 2353 fittings. It is available in light (L) and heavy (S) series and made of galvanized carbon steel, so it conforms to the 24Â° sealing geometry and standard metric thread interfaces used with DIN 2353 hose fittings.

Does the WSV bulkhead angle fitting, carbon steel, come with counter nuts pre-installed for both L and S series?

Yes. The WSV bulkhead angle fitting, carbon steel is supplied with counter nuts pre-installed for both L (light) and S (heavy) series. It is a 24Â° DIN 2353 angular wall fitting with a socket and external metric thread on both sides, made of galvanized carbon steel, and available in both series with counter nuts included.

Can the WSV bulkhead angle fitting, carbon steel, L and S series be used in hydraulic systems requiring zinc-plated corrosion protection?

Yes. the WSV bulkhead angle fitting, carbon steel, L and S series can be used in hydraulic systems that require zinc-plated corrosion protection, with these caveats: - Corrosion protection: The description states material is carbon steel, galvanized. Galvanizing (zinc coating) provides sacrificial corrosion protection suitable for many hydraulic applications, so the fittings meet basic zinc-plated protection requirements. - Compatibility with hydraulic fluids and pressure: Zinc-plated carbon steel is commonly used for hydraulic fittings per DIN 2353; ensure the specific hydraulic fluid, operating temperature, and system pressure are compatible with galvanized carbon steel and with the L (light) or S (heavy) series pressure ratings. - Thread and sealing: The WSV bulkhead angle fitting uses 24Â° DIN 2353 cone connections with counter nut and external metric threads. Proper assembly and torquing per DIN 2353 are required to achieve leak-free joints; the zinc coating should not interfere with sealing surfacesâif coating thickness or damage occurs at the cone sealing area, reconditioning or removal of excess plating may be necessary. - Environmental and longevity considerations: In aggressive environments (chlorides, seawater, acidic conditions), standard galvanizing may be insufficient; consider additional corrosion protection (e.g., zinc-nickel plating, stainless steel fittings, or protective coatings) for long-term service. Recommendation: Verify the systemâs fluid, pressure/temperature, and environmental exposure against the manufacturerâs specifications for the WSV bulkhead angle fitting, carbon steel (L or S). If higher corrosion resistance is required, choose an alternative material or enhanced plating.

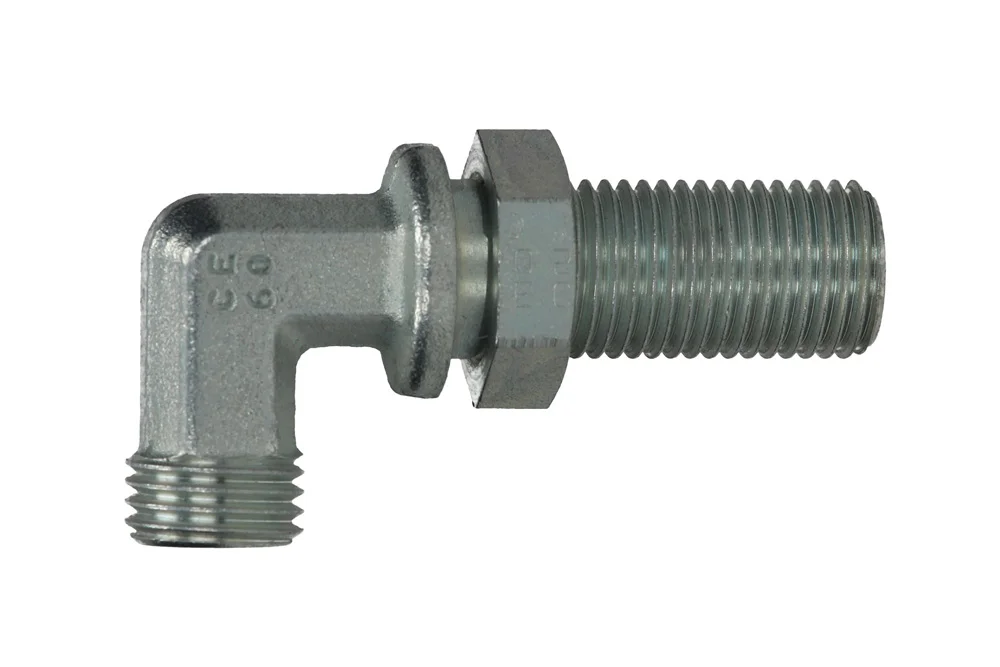

Raccord coudé traversant WSV, acier au carbone

Informations complémentaires

Matériau	CS – acier (fonte)

Raccord DIN 2353 coudé traversant, type WSV avec contre-écrou : douille 24° DIN 2353 avec filetage mâle métrique des deux côtés. Disponible en : L (série légère), S (série lourde). Matière : acier au carbone, galvanisé.

Liste des variantes de produit

Référence article	Nom de la variante du produit	DN	BAR	Disponibilité	Actions
HD-WSV-06L	Raccord DIN 2353 WSV 6L	-	315	En stock	Demande
HD-WSV-06S	Raccord DIN 2353 WSV 6S	-	630	En stock	Demande
HD-WSV-08L	Raccord DIN 2353 WSV 8L	-	315	En stock	Demande
HD-WSV-08S	Raccord DIN 2353 WSV 8S	-	630	En stock	Demande
HD-WSV-10L	Raccord DIN 2353 WSV 10L	-	315	En stock	Demande
HD-WSV-10S	Raccord DIN 2353 WSV 10S	-	630	En stock	Demande
HD-WSV-12L	Raccord DIN 2353 WSV 12L	-	315	En stock	Demande
HD-WSV-12S	Raccord DIN 2353 WSV 12S	-	630	En stock	Demande
HD-WSV-14S	Raccord DIN 2353 WSV 14S	-	630	En stock	Demande
HD-WSV-15L	Raccord DIN 2353 WSV 15L	-	315	En stock	Demande
HD-WSV-16S	Raccord DIN 2353 WSV 16S	-	400	En stock	Demande
HD-WSV-18L	Raccord DIN 2353 WSV 18L	-	315	En stock	Demande
HD-WSV-20S	Raccord DIN 2353 WSV 20S	-	400	En stock	Demande
HD-WSV-22L	Raccord DIN 2353 WSV 22L	-	160	En stock	Demande
HD-WSV-25S	Raccord DIN 2353 WSV 25S	-	400	En stock	Demande
HD-WSV-28L	Raccord DIN 2353 WSV 28L	-	160	En stock	Demande
HD-WSV-30S	Raccord DIN 2353 WSV 30S	-	400	En stock	Demande
HD-WSV-35L	Raccord DIN 2353 WSV 35L	-	160	En stock	Demande
HD-WSV-38S	Raccord DIN 2353 WSV 38S	-	315	En stock	Demande
HD-WSV-42L	Raccord DIN 2353 WSV 42L	-	160	En stock	Demande

Vous avez besoin d'une plus grande quantité de produits ou d'un devis personnalisé ?

Appelez-nous : +33 679 352 568 ou envoyez-nous un e-mail : wirthjeanpierre@aol.fr

Envoyer une demande

Raccord DIN 2353 coudé traversant, type WSV avec contre-écrou : douille 24° DIN 2353 avec filetage mâle métrique des deux côtés. Disponible en : L (série légère), S (série lourde). Matière : acier au carbone, galvanisé.
