Is the Tee fitting T, carbon steel, compatible with standard 24Â° DIN 2353 metric threaded ports and interchangeable across LL, L, and S series?

Yes. The Tee fitting T, carbon steel Format uses a 24Â° DIN 2353 socket with external metric threads, so it is compatible with standard 24Â° DIN 2353 metric threaded ports. Because it is available in LL (very light), L (light) and S (heavy) series, the thread form and sealing principle follow the DIN 2353 standard and are therefore interchangeable across LL, L and S series in terms of thread fit and 24Â° sealing interface. Note: while threads and 24Â° sealing faces are compatible, ensure series-specific dimensional and pressure-class differences (wall thickness, hex sizes, and rated working pressures) meet your application requirements before substituting between LL, L and S.

Can Tee fitting T, carbon steel, withstand corrosion in outdoor galvanized applications over long-term use?

Tee fitting T, carbon steel Format, galvanized (per DIN 2353) offers corrosion resistance suitable for many outdoor applications, but long-term performance depends on conditions. Hot-dip or electro-galvanized carbon steel provides a protective zinc layer that slows corrosion; in mild, non-aggressive environments (rural, low-saline atmospheres) it can perform well for years. In highly corrosive settings-coastal (salt spray), industrial atmospheres, continuous wetting, or where mechanical damage exposes base steel-the zinc coating will eventually corrode, risking rust and reduced integrity. For long-term outdoor use in aggressive conditions, consider stainless steel or additional protective measures (thicker/heavier galvanizing, paint/coatings, cathodic protection, regular maintenance). Choose series (LL/L/S) based on mechanical load; heavier series tolerates damage better, which also affects durability.

Does Tee fitting T, carbon steel, come with traceable material certificates for galvanized finishes?

Yes. Tee fitting T, carbon steel (DIN 2353, 24Â° socket with external metric threads; available LL, L, S; galvanized) can be supplied with traceable material certificates for the galvanized finish. Standard practice for carbon-steel hydraulic fittings intended for industrial use is to provide mill or material certificates (e.g., EN 10204/3.1 or 2.1) documenting base material chemistry and heat treatment. For galvanized finishes, an additional coating report or certificate indicating the galvanizing process and coating thickness (e.g., in Âµm) can be issued upon request. To ensure you receive traceable certificates, specify at order stage: - Required certificate type (EN 10204 3.1 preferred for full traceability). - Whether you need coating/galvanizing certificate details (process, thickness, adhesion testing). - Batch/heat number traceability and any inspection or testing requirements. Confirm availability and any extra cost or lead time with the supplier before ordering.

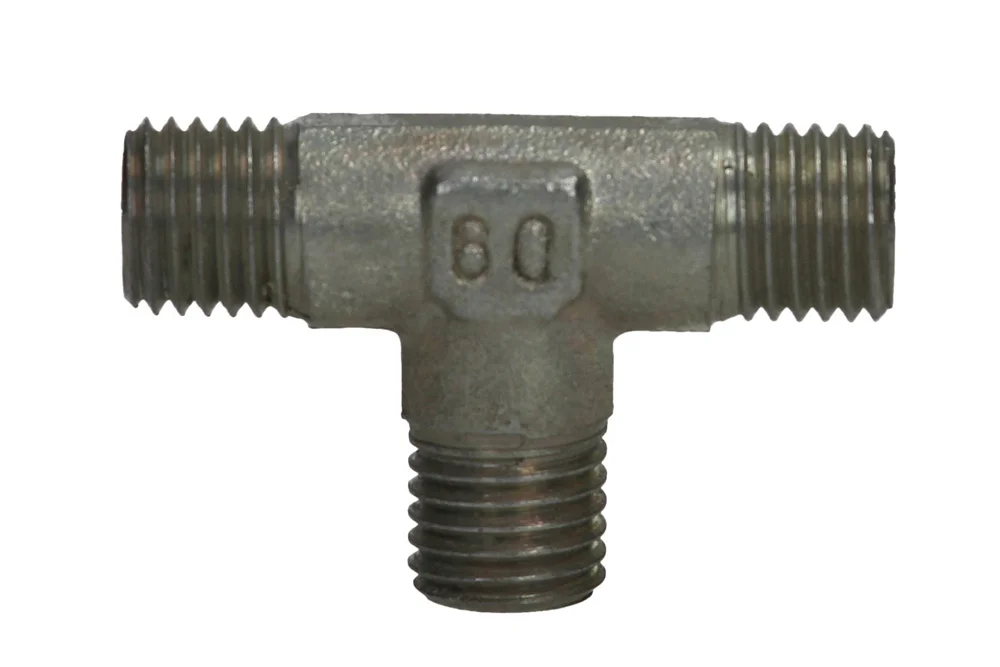

Raccord en T, type T, acier au carbone

Informations complémentaires

Matériau	CS – acier (fonte)

Raccord DIN 2353 en T, type T : douille 24° DIN 2353 avec filetages mâles métriques. Disponible en : LL (série très légère), L (série légère), S (série lourde). Matière : acier au carbone, galvanisé.

Liste des variantes de produit

Référence article	Nom de la variante du produit	DN	BAR	Disponibilité	Actions
HD-T-04LL	Raccord DIN 2353 T 4LL	-	100	En stock	Demande
HD-T-06L	Raccord en T DIN 2353 6L	-	315	En stock	Demande
HD-T-06LL	Raccord en T DIN 2353 6LL	-	100	En stock	Demande
HD-T-06S	Raccord en T DIN 2353 6S	-	630	En stock	Demande
HD-T-08L	Raccord en T DIN 2353 8L	-	315	En stock	Demande
HD-T-08LL	Raccord en T DIN 2353 8LL	-	100	En stock	Demande
HD-T-08S	Raccord en T DIN 2353 8S	-	630	En stock	Demande
HD-T-10L	Raccord en T DIN 2353 10L	-	315	En stock	Demande
HD-T-10S	Raccord en T DIN 2353 10S	-	630	En stock	Demande
HD-T-12L	Raccord en T DIN 2353 12L	-	315	En stock	Demande
HD-T-12S	Raccord en T DIN 2353 12S	-	630	En stock	Demande
HD-T-14S	Raccord en T DIN 2353 14S	-	630	En stock	Demande
HD-T-15L	Raccord en T DIN 2353 15L	-	315	En stock	Demande
HD-T-16S	Raccord en T DIN 2353 16S	-	400	En stock	Demande
HD-T-18L	Raccord en T DIN 2353 18L	-	315	En stock	Demande
HD-T-20S	Raccord en T DIN 2353 20S	-	400	En stock	Demande
HD-T-22L	Raccord en T DIN 2353 22L	-	160	En stock	Demande
HD-T-25S	Raccord en T DIN 2353 25S	-	400	En stock	Demande
HD-T-28L	Raccord en T DIN 2353 28L	-	160	En stock	Demande
HD-T-30S	Raccord en T DIN 2353 30S	-	400	En stock	Demande
HD-T-35L	Raccord en T DIN 2353 35L	-	160	En stock	Demande
HD-T-38S	Raccord en T DIN 2353 38S	-	315	En stock	Demande
HD-T-42L	Raccord en T DIN 2353 42L	-	160	En stock	Demande

Vous avez besoin d'une plus grande quantité de produits ou d'un devis personnalisé ?

Appelez-nous : +33 679 352 568 ou envoyez-nous un e-mail : wirthjeanpierre@aol.fr

Envoyer une demande

Raccord DIN 2353 en T, type T : douille 24° DIN 2353 avec filetages mâles métriques. Disponible en : LL (série très légère), L (série légère), S (série lourde). Matière : acier au carbone, galvanisé.
