Is the ORFS 90Â° hydraulic end, type ZOW210, carbon steel compatible with standard crimping sleeves for industrial hoses?

Yes. The ORFS 90Â° hydraulic end, type ZOW210, carbon steel is compatible with standard crimping sleeves for industrial hoses. The product description states it is a standard hydraulic end (type Z) with an internal UNF thread and nut, flat ORFS sealing, 90Â° angle, and is explicitly designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the hose type. Ensure you use a crimping sleeve matched to the hose construction and size and follow the hose and fitting manufacturerâs crimp specifications and tooling settings for a secure, leak-free assembly.

Can ORFS 90Â° hydraulic end, type ZOW210, carbon steel be used with hoses requiring flat-seal (ORFS) fittings and standard UNF-thread nuts?

Yes. ORFS 90Â° hydraulic end, type ZOW210, carbon steel is designed for hoses requiring flat-seal (ORFS) fittings and uses internal UNF threads with a nut. It is a 90Â° standard hydraulic tail intended for crimping with a matching crimping sleeve for the hose type, and its flat sealing face (ORFS) provides the required seal. Ensure the crimp sleeve, hose, and nut sizes match the ZOW210 UNF thread and hose specification, and verify pressure ratings and material compatibility before assembly.

Does ORFS 90Â° hydraulic end, type ZOW210, carbon steel require specific crimping parameters or tools?

ORFS 90Â° hydraulic end, type ZOW210, carbon steel requires appropriate crimping but no unique proprietary machine beyond standard hose-assembly practice. According to the product description (type Z with regular hydraulic tail, internal UNF thread and nut, flat ORFS sealing, 90Â° angle, carbon steel, galvanized), it is designed for crimping into hydraulic and industrial hoses using a crimping sleeve suitable for the hose type. Practical implications: - Use a crimping sleeve sized for the specific hose inner/outer diameter and construction (e.g., spiral, textile). The sleeve must match the hose manufacturerâs recommended dimensions. - Use a hydraulic or mechanical crimping machine capable of producing the required crimp diameter and profile for that sleeve. Typical portable hydraulic crimpers or bench-top machines used for industrial hose assemblies are appropriate. - Follow the hose and sleeve manufacturerâs crimping parameters (crimp diameter, number of crimps if applicable, crimping force). The ZOW210 itself does not state unique crimp values. rely on sleeve/hose data. - Ensure correct insertion depth of the hose onto the ZOW210 tail before crimping and verify alignment so the ORFS sealing face and nut remain undamaged. - Inspect the crimp (dimensional check, visual inspection, leak or pressure test) per industry standards. - Material note: carbon steel, galvanized finish does not change crimp method but avoid damaging plating during assembly; apply torque to the nut per specified values when fitting the ORFS face. In summary: use a crimping sleeve and machine appropriate for your hose type and follow the sleeve/hose manufacturerâs crimping parameters; the ZOW210 itself does not require a special proprietary tool beyond standard hose crimping equipment.

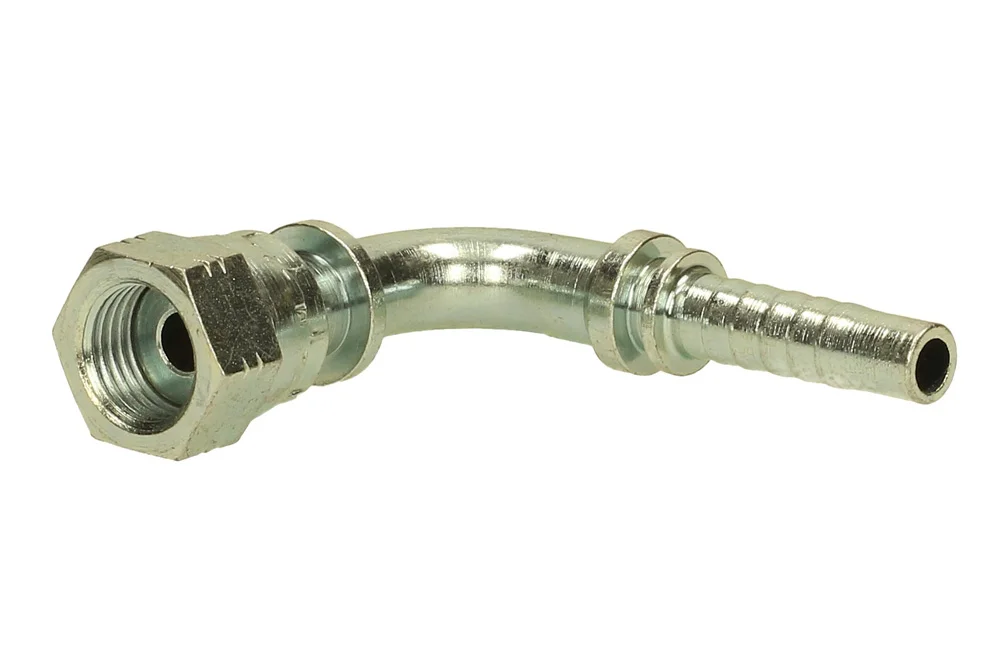

Embout hydraulique ORFS 90°, type ZOW210, acier carbone

Informations complémentaires

Matériau	CS – acier (fonte)

Embout hydraulique standard (type Z – avec une « queue » hydraulique classique pour flexible), avec filetage UNF femelle et écrou, étanchéité plate (ORFS), angle 90°. Conçu pour le sertissage sur flexibles hydrauliques et industriels à l’aide d’une bague de sertissage adaptée au type de flexible. Matière : acier carbone, galvanisé.

Liste des variantes de produit

Référence article	Nom de la variante du produit	DN	BAR	Disponibilité	Actions
TI-ZOW210-09-04	Embout ORFS 90° F 9/16", flexible 1/4"	6	-	En stock	Demande
TI-ZOW210-09-05	Embout ORFS 90° femelle 9/16", tuyau 5/16"	8	-	En stock	Demande
TI-ZOW210-09-06	Embout ORFS 90° femelle 9/16", tuyau 3/8"	10	-	En stock	Demande
TI-ZOW210-11-04	Embout ORFS 90° FF 11/16", tuyau 1/4"	6	-	En stock	Demande
TI-ZOW210-11-05	Embout ORFS 90° femelle 11/16", tuyau 5/16"	8	-	En stock	Demande
TI-ZOW210-11-06	Embout ORFS 90° femelle 11/16", flexible 3/8"	10	-	En stock	Demande
TI-ZOW210-13-06	Embout ORFS 90° femelle 13/16", tuyau 3/8"	10	-	En stock	Demande
TI-ZOW210-13-08	Raccord terminal ORFS 90° femelle 13/16", flexible 1/2"	12	-	En stock	Demande
TI-ZOW210-16-08	Embout ORFS 90° femelle 1", tuyau 1/2"	12	-	En stock	Demande
TI-ZOW210-16-10	Raccord final ORFS 90° femelle 1", tuyau 5/8"	16	-	En stock	Demande
TI-ZOW210-19-10	Embout ORFS 90° femelle 1.3/16", flexible 5/8"	16	-	En stock	Demande
TI-ZOW210-19-12	Embout ORFS 90° femelle 1.3/16", tuyau 3/4"	20	-	En stock	Demande
TI-ZOW210-23-12	Embout ORFS 90° femelle 1.7/16", tuyau 3/4"	20	-	En stock	Demande
TI-ZOW210-23-16	Embout ORFS coudé 90° femelle 1 7/16", tuyau 1"	25	-	En stock	Demande
TI-ZOW210-27-20	Raccord terminal ORFS 90° femelle 1.11/16", flexible 1.1/4"	32	-	En stock	Demande
TI-ZOW210-32-24	Embout ORFS 90° femelle 2", tuyau 1 1/2"	38	-	En stock	Demande

Vous avez besoin d'une plus grande quantité de produits ou d'un devis personnalisé ?

Appelez-nous : +33 679 352 568 ou envoyez-nous un e-mail : wirthjeanpierre@aol.fr

Envoyer une demande

Embout hydraulique standard (type Z – avec une « queue » hydraulique classique pour flexible), avec filetage UNF femelle et écrou, étanchéité plate (ORFS), angle 90°. Conçu pour le sertissage sur flexibles hydrauliques et industriels à l’aide d’une bague de sertissage adaptée au type de flexible. Matière : acier carbone, galvanisé.
