Is the DKR 90Â° hydraulic end, type ZBW410 - COMPACT, carbon steel compatible with all standard crimping sleeves for hydraulic hoses?

The DKR 90Â° hydraulic end, type ZBW410 - COMPACT, carbon steel is designed to be crimped into hydraulic and industrial hoses using a crimping sleeve appropriate for the specific hose type. It features a standard Z-type hydraulic tail, internal BSP thread with nut and a 60Â° DKR sealing cone. Compatibility with crimping sleeves depends on the hose and sleeve dimensions and profile rather than the fitting model alone. If the crimping sleeve matches the hose construction and is sized/profined for the hoseâs internal diameter and cover thickness.and is suitable for crimping a carbon-steel fitting with a compact 90Â° tail.then the ZBW410 can be used with that sleeve. Confirmations required: - Sleeve inner profile and length match the hose and the fittingâs insertion depth. - Sleeve material and crimping specifications are rated for carbon steel fittings. - Crimping machine settings (die, pressure) are appropriate for the hose, sleeve, and ZBW410 geometry. - Sleeve and assembled hose meet applicable standards and pressure ratings for the application. In short: the DKR 90Â° hydraulic end, type ZBW410 - COMPACT, carbon steel is compatible with standard crimping sleeves only when the sleeve is specifically suitable for the hose type and sized for the fitting; verify sleeve dimensions, material and crimping specs before assembly.

Can DKR 90Â° hydraulic end, type ZBW410 - COMPACT, carbon steel be used with hoses requiring a 60Â° sealing cone (DKR) and internal BSP thread?

Yes. DKR 90Â° hydraulic end, type ZBW410 - COMPACT, carbon steel Format is compatible with hoses requiring a 60Â° sealing cone (DKR) and internal BSP thread. The product description specifies it is a type Z hydraulic end with internal BSP thread and nut, a 60Â° sealing cone (DKR), 90Â° angled COMPACT design, made of carbon steel and galvanized, and intended for crimping with a suitable crimping sleeve for the hose type-so it matches your stated requirements.

Does DKR 90Â° hydraulic end, type ZBW410 - COMPACT, carbon steel require specific torque values when tightening the nut?

NoâDKR 90Â° hydraulic end, type ZBW410 - COMPACT, carbon steel does not require a specific torque value for tightening the nut as part of its normal assembly procedure. This fitting is designed for crimping onto the hose using a matching crimping sleeve appropriate to the hose type; the mechanical retention and seal rely on the correct crimping process, not on torquing the nut to a specified value. However, general assembly notes: - The nut should be hand-tightened to engage threads and position the fitting; final sealing is achieved by the 60Â° DKR cone seating and the crimped sleeve. - Avoid excessive torque on the nut to prevent thread damage, distortion of the sealing cone, or compromise of the crimped assembly. - Follow hose manufacturer and crimper tool recommendations for crimp dimensions, pressures, and procedures. - For reassembly or maintenance involving threaded connections with mating ports, refer to the mating componentâs specifications (port material, thread type) and use correct sealing practice (e.g., thread sealant if required) rather than applying an arbitrary torque value. If a torque specification is needed for a specific installation (e.g., to ensure proper preload on a mating port), obtain torque values from the port/component manufacturer or from your engineering/installation standards, because the ZBW410 itself is intended to be secured by crimping rather than by a torque-controlled nut.

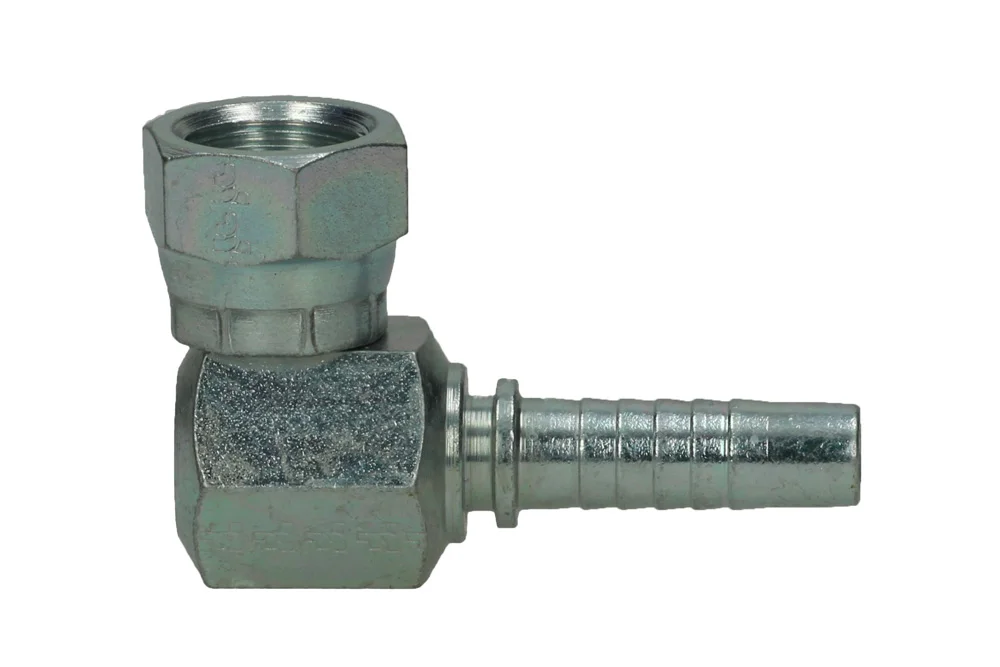

Embout hydraulique DKR 90°, type ZBW410 – COMPACT, acier au carbone

Informations complémentaires

Matériau	CS – acier (fonte)

Embout hydraulique standard (type Z – avec « queue » hydraulique classique pour tuyau), à filetage femelle BSP avec écrou, cône d’étanchéité 60° (DKR), coudé 90° de type COMPACT. Destiné au sertissage sur flexibles hydrauliques et industriels à l’aide d’une douille de sertissage adaptée au type de tuyau. Matériau : acier au carbone, galvanisé.

Liste des variantes de produit

Référence article	Nom de la variante du produit	DN	BAR	Disponibilité	Actions
TI-ZBW410-04-04	Raccord coudé 90° COMPACT femelle 1/4" BSP, tuyau 1/4", cône 60°	6	-	En stock	Demande
TI-ZBW410-06-06	Raccord coudé 90° COMPACT femelle 3/8" BSP, tuyau 3/8", cône 60°	10	-	En stock	Demande
TI-ZBW410-08-08	Raccord coudé 90° COMPACT femelle 1/2" BSP, tuyau 1/2", cône 60°	12	-	En stock	Demande
TI-ZBW410-12-12	Raccord coudé 90° COMPACT femelle 3/4" BSP, tuyau 3/4", cône 60°	20	-	En stock	Demande

Vous avez besoin d'une plus grande quantité de produits ou d'un devis personnalisé ?

Appelez-nous : +33 679 352 568 ou envoyez-nous un e-mail : wirthjeanpierre@aol.fr

Envoyer une demande

Embout hydraulique standard (type Z – avec « queue » hydraulique classique pour tuyau), à filetage femelle BSP avec écrou, cône d’étanchéité 60° (DKR), coudé 90° de type COMPACT. Destiné au sertissage sur flexibles hydrauliques et industriels à l’aide d’une douille de sertissage adaptée au type de tuyau. Matériau : acier au carbone, galvanisé.
