Raccord à visser GE-BE, acier au carbone

Informations complémentaires

Matériau	CS – acier (fonte)

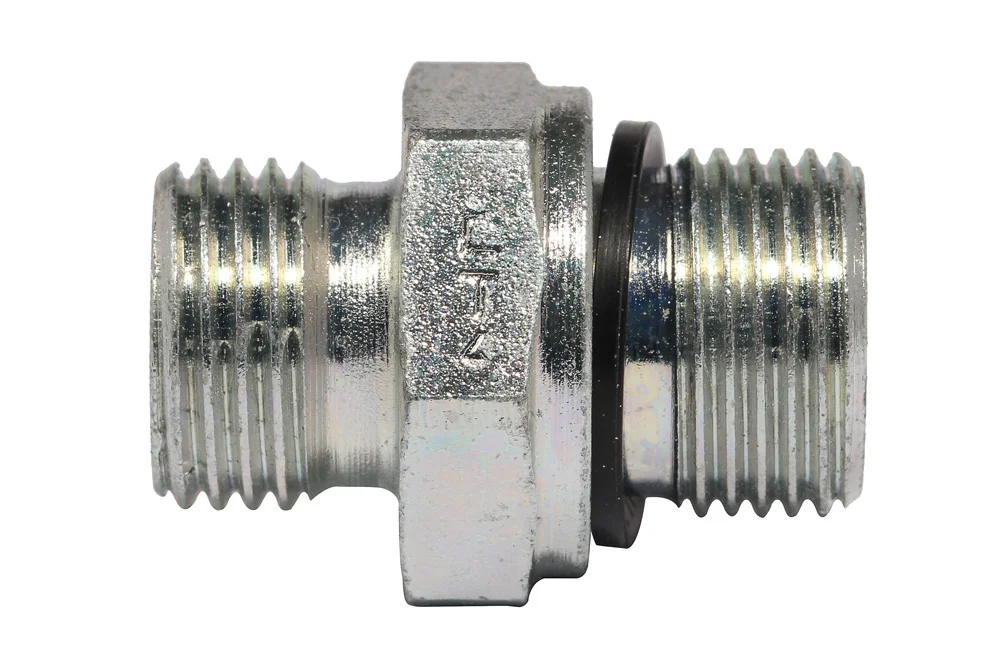

Raccord DIN 2353 à visser, type GE-BE : douille 24° DIN 2353 avec filetage mâle métrique et filetage mâle BSP (étanchéité DIN 3852 type E – joint élastomère à section rectangulaire). Coefficient de sécurité 4:1. Disponible en : LL (série très légère), L (série légère), S (série lourde). Matière : acier au carbone, galvanisé.

Liste des variantes de produit

Référence article	Nom de la variante du produit	DN	BAR	Disponibilité	Actions
HD-GE-04LL-BE-02	Raccord DIN 2353 GE 4LL 1/8" BSP	-	100	En stock	Demande
HD-GE-06L-BE-02	Raccord DIN 2353 GE 6L 1/8" BSP	-	315	En stock	Demande
HD-GE-06L-BE-04	Raccord DIN 2353 GE 6L 1/4" BSP	-	500	En stock	Demande
HD-GE-06L-BE-06	Raccord DIN 2353 GE 6L 3/8" BSP	-	400	En stock	Demande
HD-GE-06LL-BE-02	Raccord DIN 2353 GE 6LL 1/8" BSP	-	100	En stock	Demande
HD-GE-06S-BE-04	Raccord DIN 2353 GE 6S 1/4" BSP	-	630	En stock	Demande
HD-GE-08L-BE-02	Raccord DIN 2353 GE 8L 1/8" BSP	-	500	En stock	Demande
HD-GE-08L-BE-04	Raccord DIN 2353 GE 8L 1/4" BSP	-	315	En stock	Demande
HD-GE-08L-BE-06	Raccord DIN 2353 GE 8L 3/8" BSP	-	400	En stock	Demande
HD-GE-08L-BE-08	Raccord DIN 2353 GE 8L 1/2" BSP	-	400	En stock	Demande
HD-GE-08LL-BE-02	Raccord DIN 2353 GE 8LL 1/8" BSP	-	100	En stock	Demande
HD-GE-08S-BE-04	Raccord DIN 2353 GE 8S 1/4" BSP	-	630	En stock	Demande
HD-GE-08S-BE-06	Raccord DIN 2353 GE 8S 3/8" BSP	-	800	En stock	Demande
HD-GE-10L-BE-02	Raccord DIN 2353 GE 10L 1/8" BSP	-	500	En stock	Demande
HD-GE-10L-BE-04	Raccord DIN 2353 GE 10L 1/4" BSP	-	315	En stock	Demande
HD-GE-10L-BE-06	Raccord DIN 2353 GE 10L 3/8" BSP	-	400	En stock	Demande
HD-GE-10L-BE-08	Raccord DIN 2353 GE 10L 1/2" BSP	-	400	En stock	Demande
HD-GE-10S-BE-04	Raccord DIN 2353 GE 10S 1/4" BSP	-	800	En stock	Demande
HD-GE-10S-BE-06	Raccord DIN 2353 GE 10S 3/8" BSP	-	630	En stock	Demande
HD-GE-10S-BE-08	Raccord DIN 2353 GE 10S 1/2" BSP	-	630	En stock	Demande
HD-GE-12L-BE-04	Raccord DIN 2353 GE 12L 1/4" BSP	-	400	En stock	Demande
HD-GE-12L-BE-06	Raccord DIN 2353 GE 12L 3/8" BSP	-	315	En stock	Demande
HD-GE-12L-BE-08	Raccord DIN 2353 GE 12L 1/2" BSP	-	400	En stock	Demande
HD-GE-12S-BE-04	Raccord DIN 2353 GE 12S 1/4" BSP	-	630	En stock	Demande
HD-GE-12S-BE-06	Raccord DIN 2353 GE 12S 3/8" BSP	-	630	En stock	Demande
HD-GE-12S-BE-08	Raccord DIN 2353 GE 12S 1/2" BSP	-	630	En stock	Demande
HD-GE-14S-BE-06	Raccord DIN 2353 GE 14S 3/8" BSP	-	630	En stock	Demande
HD-GE-14S-BE-08	Raccord DIN 2353 GE 14S 1/2" BSP	-	630	En stock	Demande
HD-GE-15L-BE-06	Raccord DIN 2353 GE 15L 3/8" BSP	-	400	En stock	Demande
HD-GE-15L-BE-08	Raccord DIN 2353 GE 15L 1/2" BSP	-	315	En stock	Demande
HD-GE-15L-BE-12	Raccord DIN 2353 GE 15L 3/4" BSP	-	250	En stock	Demande
HD-GE-16S-BE-06	Raccord DIN 2353 GE 16S 3/8" BSP	-	630	En stock	Demande
HD-GE-16S-BE-08	Raccord DIN 2353 GE 16S 1/2" BSP	-	400	En stock	Demande
HD-GE-16S-BE-12	Raccord DIN 2353 GE 16S 3/4" BSP	-	420	En stock	Demande
HD-GE-18L-BE-08	Raccord DIN 2353 GE 18L 1/2" BSP	-	315	En stock	Demande
HD-GE-18L-BE-12	Raccord DIN 2353 GE 18L 3/4" BSP	-	250	En stock	Demande
HD-GE-20S-BE-08	Raccord DIN 2353 GE 20S 1/2" BSP	-	420	En stock	Demande
HD-GE-20S-BE-12	Raccord DIN 2353 GE 20S 3/4" BSP	-	400	En stock	Demande
HD-GE-20S-BE-16	Raccord DIN 2353 GE 20S 1" BSP	-	420	En stock	Demande
HD-GE-22L-BE-08	Raccord DIN 2353 GE 22L 1/2" BSP	-	250	En stock	Demande
HD-GE-22L-BE-12	Raccord DIN 2353 GE 22L 3/4" BSP	-	160	En stock	Demande
HD-GE-22L-BE-16	Raccord DIN 2353 GE 22L 1" BSP	-	250	En stock	Demande
HD-GE-25S-BE-12	Raccord DIN 2353 GE 25S 3/4" BSP	-	420	En stock	Demande
HD-GE-25S-BE-16	Raccord DIN 2353 GE 25S 1" BSP	-	400	En stock	Demande
HD-GE-28L-BE-12	Raccord DIN 2353 GE 28L 3/4" BSP	-	250	En stock	Demande
HD-GE-28L-BE-16	Raccord DIN 2353 GE 28L 1" BSP	-	160	En stock	Demande
HD-GE-30S-BE-16	Raccord DIN 2353 GE 30S 1" BSP	-	420	En stock	Demande
HD-GE-30S-BE-20	Raccord DIN 2353 GE 30S 1.1/4" BSP	-	400	En stock	Demande
HD-GE-35L-BE-16	Raccord DIN 2353 GE 35L 1" BSP	-	250	En stock	Demande
HD-GE-35L-BE-20	Raccord DIN 2353 GE 35L 1.1/4" BSP	-	160	En stock	Demande
HD-GE-38S-BE-20	Raccord DIN 2353 GE 38S 1.1/4" BSP	-	420	En stock	Demande
HD-GE-38S-BE-24	Raccord DIN 2353 GE 38S 1.1/2" BSP	-	315	En stock	Demande
HD-GE-42L-BE-20	Raccord DIN 2353 GE 42L 1.1/4" BSP	-	250	En stock	Demande
HD-GE-42L-BE-24	Raccord DIN 2353 GE 42L 1.1/2" BSP	-	160	En stock	Demande
