Is the Hose end with GW NPT, stainless steel, 130HF compatible with aggressive chemicals and suitable for use in nuclear power environments?

Hose end with GW NPT, stainless steel, 130HF: Yes.this fitting is designed for demanding industrial use, including chemical and nuclear power applications. Key points: - Material: AISI 316 stainless steel offers good corrosion resistance to many aggressive chemicals, including chlorides and acids at moderate concentrations and temperatures. - Intended use: The 130HF type is primarily intended for chemical, petrochemical, pharmaceutical, energy, nuclear power, and process engineering industries, indicating suitability for such environments. - Threading: NPT internal threaded connection provides a standard, pressure-capable joint when properly installed with compatible hoses and sealing methods. Caveats: - Chemical compatibility depends on specific media, concentration, temperature and exposure time; AISI 316 is not universally resistant (e.g., concentrated hydrochloric or sulfuric acids, some halogenated hydrocarbons, and certain high-temperature chloride environments can cause corrosion). - Nuclear suitability requires compliance with applicable nuclear standards, traceability, and sometimes special certifications or testing beyond base material and intended-use statements. Verify radiation, pressure, temperature ratings, and any required nuclear-qualified documentation. Recommendation: Confirm compatibility by cross-checking the specific chemicals, concentrations, temperatures, pressures, and regulatory/certification requirements for the nuclear facility; perform material compatibility checks and obtain necessary certification if required.

Can Hose end with GW NPT, stainless steel, 130HF be used with food-grade or pharmaceutical fluids and meet sanitary standards?

Hose end with GW NPT, stainless steel, 130HF Format: Likely suitable for many food-grade or pharmaceutical applications because it is made of AISI 316 stainless steel and is designed for pharmaceutical and process industries. However, meeting sanitary standards depends on additional factors: surface finish (Ra), internal geometry (crevices/drainability), seals/gaskets material (must be FDA/USP-compliant), traceability and documentation (material certificates, FDA/EC compliance), and cleaning/sterilization compatibility. If the specific 130HF configuration has a polished hygienic internal finish, appropriate elastomers (or metal-to-metal joints) and required certifications, it can meet sanitary requirements. Without explicit sanitary finish and certification from the manufacturer, you cannot assume it meets food/pharma sanitary standards - verify surface finish, seal materials and documentation before use.

Does Hose end with GW NPT, stainless steel, 130HF support high-pressure steam and thermal cycling in process plants?

Yes. Hose end with GW NPT, stainless steel, 130HF Format is suitable for highâpressure steam and thermal cycling in process plants, with some important considerations. Why itâs suitable: - Material: AISI 316 stainless steel offers good corrosion resistance and strength at elevated temperatures typical for steam service. - Design intent: The 130HF type is expressly intended for chemical, petrochemical, pharmaceutical, energy, nuclear power and process engineering industries, which commonly require components rated for pressure, temperature swings and aggressive media. - Thread type: GW NPT internal threaded hose fitting (NPT) is a common pressure-capable connection used in industrial steam and process lines when properly specified and installed. Important caveats: - Maximum allowable pressure and temperature are determined by specific fitting dimensions, wall thickness, hose assembly, and applicable standards. these are not given in the brief description. Verify manufacturerâs pressure/temperature ratings for the exact 130HF part number and hose combination. - Steam and thermal cycling impose fatigue and creep demands. Confirm the fittingâs cyclic fatigue rating, material heat treatment and any applicable certifications (e.g., PED, ASME) for repeated thermal cycles. - Sealing: NPT is a tapered thread that relies on thread engagement and sealing compound or tape; for highâtemperature steam, ensure proper sealing method compatible with steam. - Compatibility: Check gasket/seal materials, hose inner liner, and weld or crimp method for steam and condensate corrosion/erosion resistance. - Installation and inspection: Use correct assembly torque, proper supports to minimize flexing, and schedule inspections for stress, leaks, and corrosion. Conclusion: Hose end with GW NPT, stainless steel, 130HF Format can support highâpressure steam and thermal cycling in process plants when the specific partâs pressure/temperature ratings, cyclic fatigue capability, sealing method and compatibility with the hose and process conditions are confirmed with the manufacturer and relevant codes.

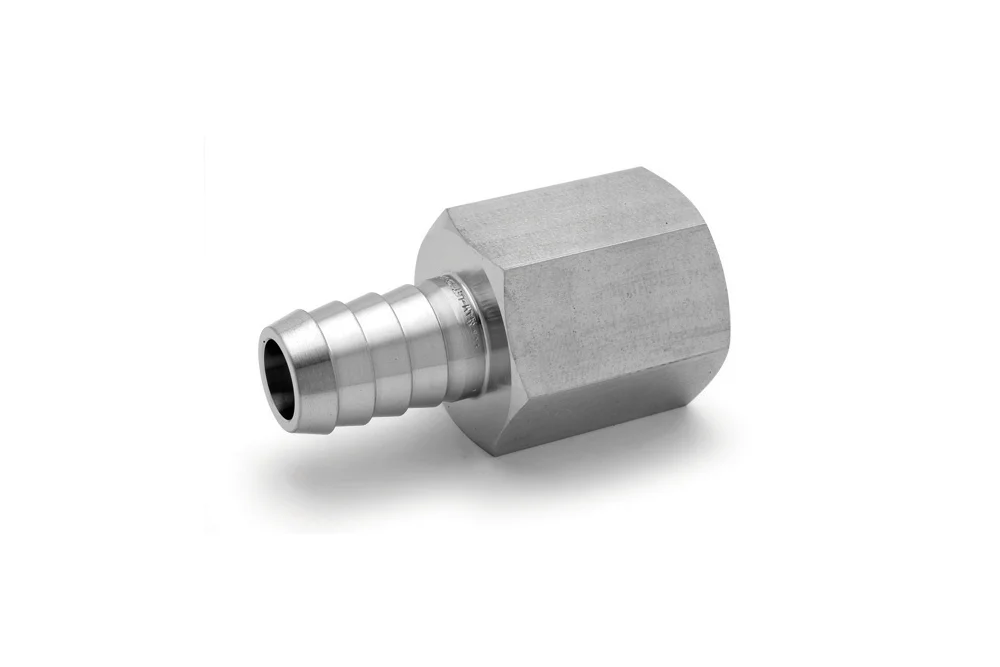

Embout pour tuyau à filetage femelle NPT, acier inoxydable, 130HF

Fixations filetées de précision, Tous les produits/

Informations complémentaires

Matériau	SS – acier inoxydable
Longueur standard [m]	2

Embout à filetage femelle NPT pour tuyau, type 130HF, destiné principalement aux industries chimique, pétrochimique, pharmaceutique, énergétique, aux centrales nucléaires et au génie des procédés. Matériau : acier AISI 316.

Liste des variantes de produit

Référence article	Nom de la variante du produit	DN	BAR	Disponibilité	Actions
HM-P130HF-02-02-SS	Embout femelle NPT 1/8" pour tuyau 1/8", inox	-	-	En stock	Demande
HM-P130HF-02-04-SS	Embout femelle NPT 1/8" pour tuyau 1/4", inox	-	-	En stock	Demande
HM-P130HF-02-05-SS	Embout femelle NPT 1/8" pour tuyau 5/16", inox	-	-	En stock	Demande
HM-P130HF-04-02-SS	Embout femelle NPT 1/4" pour tuyau 1/8", inox	-	-	En stock	Demande
HM-P130HF-04-03-SS	Embout femelle NPT 1/4" pour tuyau 3/16", inox	-	-	En stock	Demande
HM-P130HF-04-04-SS	Embout femelle NPT 1/4" pour tuyau 1/4", inox	-	-	En stock	Demande
HM-P130HF-04-05-SS	Embout femelle NPT 1/4" pour tuyau 5/16", inox	-	-	En stock	Demande
HM-P130HF-04-06-SS	Embout femelle NPT 1/4" pour tuyau 3/8", inox	-	-	En stock	Demande
HM-P130HF-04-08-SS	Embout femelle NPT 1/4" pour tuyau 1/2", inox	-	-	En stock	Demande
HM-P130HF-06-04-SS	Embout femelle NPT 3/8" pour tuyau 1/4", inox	-	-	En stock	Demande
HM-P130HF-06-05-SS	Embout femelle NPT 3/8" pour tuyau 5/16", inox	-	-	En stock	Demande
HM-P130HF-06-06-SS	Embout femelle NPT 3/8" pour tuyau 3/8", inox	-	-	En stock	Demande
HM-P130HF-06-08-SS	Embout femelle NPT 3/8" pour tuyau 1/2", inox	-	-	En stock	Demande
HM-P130HF-08-06-SS	Embout femelle NPT 1/2" pour tuyau 3/8", inox	-	-	En stock	Demande
HM-P130HF-08-08-SS	Embout femelle NPT 1/2" pour tuyau 1/2", inox	-	-	En stock	Demande
HM-P130HF-12-12-SS	Embout femelle NPT 3/4" pour tuyau 3/4", inox	-	-	En stock	Demande
HM-P130HF-16-16-SS	Embout femelle NPT 1" pour tuyau 1", inox	-	-	En stock	Demande

Vous avez besoin d'une plus grande quantité de produits ou d'un devis personnalisé ?

Appelez-nous : +33 679 352 568 ou envoyez-nous un e-mail : wirthjeanpierre@aol.fr

Envoyer une demande

Embout à filetage femelle NPT pour tuyau, type 130HF, destiné principalement aux industries chimique, pétrochimique, pharmaceutique, énergétique, aux centrales nucléaires et au génie des procédés. Matériau : acier AISI 316.
