Is the Elbow 90Â° with GZ NPT stainless steel, 100HM compatible with AISI 316 chemical-resistant piping systems and suitable for nuclear and pharmaceutical applications?

Yes. The Elbow 90Â° with GZ NPT stainless steel, 100HM is specified as a 90Â° elbow with external NPT thread, type 100HM, made of AISI 316 stainless steel and intended mainly for the chemical, petrochemical, pharmaceutical, energy, nuclear power, and process engineering industries. Given this: - Compatibility with AISI 316 chemical-resistant piping: Yes . the fitting is manufactured from AISI 316, so it is metallurgically compatible with AISI 316 piping and offers the same general corrosion resistance and chemical compatibility expected of that grade. - Suitability for pharmaceutical applications: Yes . the product is intended for the pharmaceutical industry. AISI 316 is commonly used in pharmaceutical systems for its corrosion resistance and cleanability; however final suitability may depend on surface finish, cleaning/sterilization requirements, and regulatory specs (e.g., FDA, USP) specific to the installation. - Suitability for nuclear applications: It is intended for nuclear power industry use, indicating design intent for that sector. AISI 316 is used in many nuclear systems, but actual acceptability depends on project-specific nuclear codes, radiation, temperature, pressure, welding and traceability requirements, and qualification/certification demanded by the facility. Recommendation: The Elbow 90Â° with GZ NPT stainless steel, 100HM is materially and commercially aligned with chemical-resistant AISI 316 piping and is intended for pharmaceutical and nuclear sectors, but confirm required surface finishes, certifications (material test reports, traceability, welding qualifications), and compliance with any industry-specific standards before final acceptance.

Does Elbow 90Â° with GZ NPT stainless steel, 100HM meet ASME and NPT pressure ratings for chemical and nuclear plant use?

Short answer: Not necessarily. Elbow 90Â° with GZ NPT stainless steel, 100HM is described as a 90Â° elbow with external NPT thread, type 100HM, made of AISI 316 and intended for chemical, petrochemical, pharmaceutical, energy, nuclear power and process industries. That description alone does not confirm compliance with ASME or NPT pressure ratings. To meet ASME (B16.9/B31.x, etc.) and NPT pressure/threading standards for chemical and nuclear plant use you need documented evidence: material certifications (e.g., EN 10204 3.1/3.2), dimensional and wall-thickness conformity to the applicable ASME standard, pressure rating/temperature charts, traceable heat numbers, welding/fabrication records, and, for nuclear service, specific nuclear qualification/certification (N-stamp or equivalent) and testing (NDE, hydrostatic tests, PMI). NPT threads must follow ASME/ANSI B1.20.1 tolerances. Without those certificates and test reports, you cannot assume Elbow 90Â° with GZ NPT stainless steel, 100HM meets required ASME and NPT pressure ratings for chemical or nuclear plants. Request supplier certifications and test reports for verification.

Does Elbow 90Â° with GZ NPT stainless steel, 100HM resist corrosion from common chemical process media?

Yes. Elbow 90Â° with GZ NPT stainless steel, 100HM (AISI 316) offers good general corrosion resistance to many common chemical process media. AISI 316 is an austenitic stainless steel alloyed with molybdenum, which improves resistance to pitting and crevice corrosion versus 304 in chloride-containing environments and many acidic media. Typical compatibilities include diluted acids (acetic, phosphoric), alkalis, organic solvents, and process water under normal temperatures and concentrations. However, suitability is conditional: - Chloride-rich, hot, or stagnant environments increase risk of pitting and stress corrosion cracking; higher-alloy grades (e.g., duplex, 904L, Hastelloy) may be required for aggressive chloride service. - Strong oxidizing acids (hot concentrated sulfuric, nitric) or halogenated media can attack 316. - High-temperature corrosive gases or molten salts may exceed 316âs limits. - Wet H2S environments can cause sulfide stress cracking; sour service standards and material selection must be checked. Recommendation: evaluate the specific media, concentration, temperature, pressure and exposure conditions. For critical or aggressive services, run compatibility checks using corrosion resistance tables, consult corrosion engineers or suppliers, and consider more resistant alloys or protective linings.

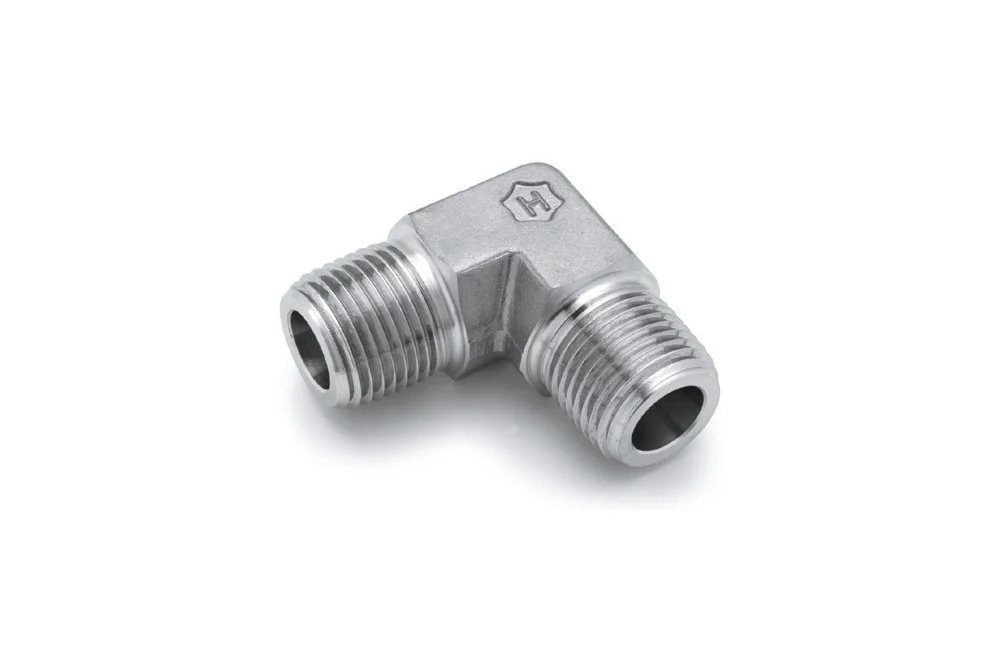

Coude 90° à filetage mâle NPT en acier inoxydable, 100HM

Fixations filetées de précision, Tous les produits/

Informations complémentaires

Matériau	SS – acier inoxydable

Coude 90° à filetage mâle NPT, type 100HM, destiné principalement à l’industrie chimique, pétrochimique, pharmaceutique, à l’énergie, aux centrales nucléaires et à l’ingénierie des procédés. Matériau : acier AISI 316.

Liste des variantes de produit

Référence article	Nom de la variante du produit	DN	BAR	Disponibilité	Actions
HM-P100HM-02-SS	Coude 90° M 1/8" NPT, inox	-	690	En stock	Demande
HM-P100HM-04-SS	Coude 90° M 1/4" NPT, inox	-	552	En stock	Demande
HM-P100HM-06-SS	Coude 90° M 3/8" NPT, inox	-	538	En stock	Demande
HM-P100HM-08-SS	Coude 90° M 1/2" NPT, inox	-	531	En stock	Demande
HM-P100HM-12-SS	Coude 90° M 3/4" NPT, inox	-	503	En stock	Demande
HM-P100HM-16-SS	Coude 90° M 1" NPT, inox	-	366	En stock	Demande

Vous avez besoin d'une plus grande quantité de produits ou d'un devis personnalisé ?

Appelez-nous : +33 679 352 568 ou envoyez-nous un e-mail : wirthjeanpierre@aol.fr

Envoyer une demande

Coude 90° à filetage mâle NPT, type 100HM, destiné principalement à l’industrie chimique, pétrochimique, pharmaceutique, à l’énergie, aux centrales nucléaires et à l’ingénierie des procédés. Matériau : acier AISI 316.
