Does the Mini angle reduction valve RMC (thread-wire) require lubrication when used with non-oiled compressed air to maintain performance and lifespan?

Mini angle reduction valve RMC (thread-wire) does not strictly require additional lubrication when used with non-oiled compressed air. The product specification explicitly allows operation with filtered compressed air, oiled or non-oiled, and the valve is designed for pressures up to 10 bar and temperatures â20 Â°C to +60 Â°C. However, to maintain optimal performance and maximize service life, follow these practical precautions: - Ensure the air is properly filtered to remove particulates and condensate that can cause wear. - Keep operating conditions within the specified pressure and temperature ranges. - If the installation sees heavy cycling, contaminated air, or sticky/seizing behavior, periodic light lubrication of upstream components or use of minimally oiled supply can reduce internal wear. Do not apply lubricant directly to sealing O-rings unless the lubricant is compatible with the elastomer. - Follow the manufacturerâs maintenance schedule and replace seals/O-rings if wear or leakage appears. In summary: routine external lubrication is not required for Mini angle reduction valve RMC (thread-wire) with non-oiled air, but good filtration, correct conditions and occasional maintenance will preserve performance and lifespan.

Can the Mini angle reduction valve RMC (thread-wire) withstand continuous 10 bar inlet pressure without performance loss?

Mini angle reduction valve RMC (thread-wire) is rated with a working pressure of 10 bar and an output pressure range of 1â8 bar. That means the valve is designed to tolerate a continuous inlet pressure up to 10 bar when used with the specified medium (filtered compressed air, oiled or non-oiled) and within the stated temperature range (â20Â°C to +60Â°C). To avoid performance loss, ensure correct installation (threaded connection with Oâring at inlet, plug at outlet), proper filtration and maintenance, and do not exceed the 10 bar working pressure. If your system may produce pressure spikes above 10 bar or extreme temperatures, consult the manufacturer or choose a valve with a higher safety margin.

How does the Mini angle reduction valve RMC (thread-wire) perform at temperatures below 0Â°C and down to -20Â°C?

The Mini angle reduction valve RMC (thread-wire) is specified for operation in the temperature range from â20Â°C to +60Â°C. At temperatures below 0Â°C down to â20Â°C it will function as designed, maintaining its output pressure range of 1â8 bar and withstanding the maximum working pressure of 10 bar, provided the medium is filtered compressed air (oiled or nonâoiled) as specified. Important practical considerations at subzero temperatures: - Materials and seals (Oâring at the inlet) are rated for the declared operating range; ensure the Oâring material used in your installation is compatible with low temperatures to avoid hardening or leakage. - Condensed moisture in the compressed air can freeze and cause blockages or affect valve performance; use appropriate drying/filtration to prevent ice formation. - Lubrication behavior may change in the cold; if using oiled air, confirm the oilâs viscosity remains suitable down to â20Â°C. - Mechanical clearances and responsiveness can be slightly affected by cold, but the valve geometry ensures proper installation alignment. In summary, the Mini angle reduction valve RMC (thread-wire) is designed to operate down to â20Â°C, but reliable lowâtemperature performance requires appropriate air drying/filtration, compatible seal materials, and suitable lubrication.

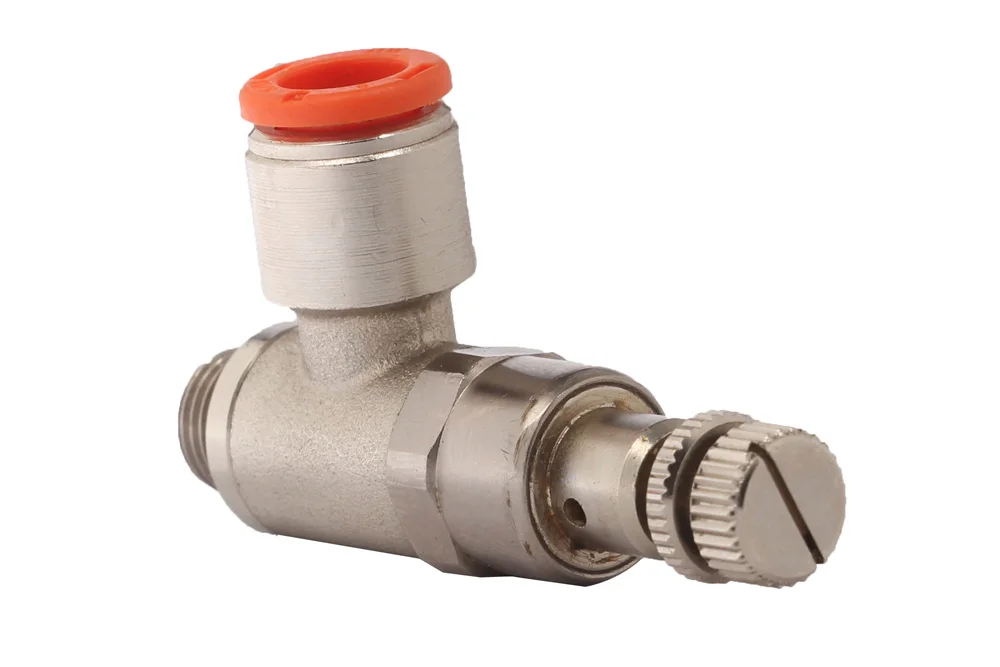

Mini réducteur de pression coudé RMC (filetage – tube)

Raccords fonctionnels, Tous les produits/

Informations complémentaires

Matériau	B – laiton (bronze)

Le mini réducteur de pression coudé de type RMC (raccord fileté à joint torique à l’entrée et raccord enfichable à la sortie) assure, grâce à sa géométrie, le parallélisme du tube par rapport aux autres éléments de l’installation. Plage de pression de sortie : 1 ÷ 8 bar. Pression de service : 10 bar. Température de service : de -20°C à +60°C. Fluide : air comprimé filtré, lubrifié ou non lubrifié.

Liste des variantes de produit

Référence article	Nom de la variante du produit	DN	BAR	Disponibilité	Actions
MW-9061102	Vanne réductrice coudée RMC, mâle BSP 1/8" - tuyau 4 mm (sortie)	-	10	En stock	Demande
MW-9061108	Vanne réductrice coudée RMC, mâle BSP 1/8" - tuyau 6 mm (sortie)	-	10	En stock	Demande
MW-9061109	Vanne réductrice coudée RMC, mâle BSP 1/4" - tuyau 6 mm (sortie)	-	10	En stock	Demande
MW-9061110	Vanne réductrice coudée RMC, mâle BSP 1/8" - tuyau 8 mm (sortie)	-	10	En stock	Demande
MW-9061111	Vanne réductrice coudée RMC, mâle BSP 1/4" - tuyau 8 mm (sortie)	-	10	En stock	Demande
MW-9061112	Vanne réductrice coudée RMC, mâle BSP 1/4" - tuyau 10 mm (sortie)	-	10	En stock	Demande

Vous avez besoin d'une plus grande quantité de produits ou d'un devis personnalisé ?

Appelez-nous : +33 679 352 568 ou envoyez-nous un e-mail : wirthjeanpierre@aol.fr

Envoyer une demande

Le mini réducteur de pression coudé de type RMC (raccord fileté à joint torique à l’entrée et raccord enfichable à la sortie) assure, grâce à sa géométrie, le parallélisme du tube par rapport aux autres éléments de l’installation. Plage de pression de sortie : 1 ÷ 8 bar. Pression de service : 10 bar. Température de service : de -20°C à +60°C. Fluide : air comprimé filtré, lubrifié ou non lubrifié.
