What is the adjustment procedure for the RMS cartridge pneumatic pressure reducing valve to set output pressure between 1 and 8 bar?

To adjust the RMS cartridge pneumatic pressure reducing valve to set the output pressure between 1 and 8 bar, follow this procedure: 1. Ensure supply conditions: confirm working pressure is present (up to 10 bar), medium is filtered compressed air (oiled or non-oiled), and ambient temperature is within -20Â°C to +60Â°C. 2. Isolate and depressurize: before any adjustment, isolate the valve or system section and relieve downstream pressure for safe access. 3. Connect measurement: attach a calibrated pressure gauge to the valveâs output port or downstream test point to read output pressure accurately. 4. Restore supply and operate: reapply supply pressure to the valve (â¤10 bar). Ensure no excessive flow demand or leak that could skew readings. 5. Adjust setpoint: using the valveâs adjustment screw/knob (cartridge-mounted), turn slowly: - Clockwise to increase output pressure. - Counterclockwise to decrease output pressure. Make small incremental turns, allowing the pressure to stabilize after each adjustment. 6. Verify range and stability: continue adjustments until the gauge indicates the desired pressure within the 1â8 bar range. Confirm stability under expected flow conditions and check for any pressure drop when demand varies. 7. Lock setting and secure: if the RMS cartridge has a locking mechanism, tighten it to secure the setpoint. Re-pressurize the system fully and perform a final check for leaks and correct operation. 8. Document: record the set pressure and any relevant settings for maintenance. Safety note: follow site safety procedures and manufacturer-specific instructions if available.

How do I verify the RMS cartridge pneumatic pressure reducing valve maintains a stable 1â8 bar output under varying inlet pressures?

To verify the RMS cartridge pneumatic pressure reducing valve maintains a stable 1â8 bar output under varying inlet pressures, follow these steps: 1. Install the RMS cartridge pneumatic pressure reducing valve per manufacturer instructions (direct in-device or block-mounted) using filtered compressed air. 2. Connect a calibrated pressure transducer to the valve outlet and a separate transducer to the inlet. Log both signals continuously. 3. Stabilize system temperature between -20Â°C and +60Â°C. 4. Sweep inlet pressure from low up to the working pressure (e.g., 0â10 bar) and include transient steps and rapid changes. At each inlet level record outlet pressure and response time. 5. Adjust the valve setpoint across the 1â8 bar range and verify the outlet reaches and holds each setpoint within specified tolerance under steady and changing inlet conditions. 6. Introduce typical load flows and measure pressure drop and stability under flow. 7. Repeat tests with oiled and non-oiled air if used. 8. Accept if outlet remains within the 1â8 bar setpoint range with minimal deviation and recovers rapidly after inlet transients; otherwise inspect installation, filters, or replace the valve.

How do I troubleshoot an RMS cartridge pneumatic pressure reducing valve that fails to reach 1â8 bar output?

First check basic conditions: supply pressure must be at or above 10 bar (working pressure) and stable; if supply is significantly below this, the RMS cartridge pneumatic pressure reducing valve cannot regulate to 1â8 bar. Ensure the compressed air is filtered to specification and free of debrisâcontaminants can jam the valve seat or pilot. Stepwise troubleshooting: 1. Visual and serviceability check - Inspect for external damage, improper installation or loose fittings. - Confirm correct orientation and mounting (direct device or block mounting) and that common supply lines are not blocked. 2. Supply and downstream checks - Verify supply pressure with a reliable gauge at the cartridge inlet while under load. If supply fluctuates or drops below ~10 bar, restore supply pressure. - Check for excessive downstream leaks. Large leaks can prevent the RMS cartridge pneumatic pressure reducing valve from building output pressure to setpoint. 3. Adjustment and control elements - Confirm setpoint adjustment is within the 1â8 bar range and that the adjustment mechanism moves freely. Back off and re-set while observing the output gauge. - If the valve has a lock or tamper-proof cap, ensure itâs fully disengaged during setting. 4. Internal contamination and wear - Depressurize and disassemble per safety procedure. Inspect diaphragm, poppet/seat, springs and seals for wear, deformation or dirt. Replace damaged or hardened seals. - Clean internal passages and the pilot orifices; small blockages commonly limit maximum output. 5. Lubrication and medium - Ensure medium is filtered compressed air; both oiled and non-oiled air are acceptable, but heavy contamination or inappropriate lubricants can impair function. Use recommended filtration and maintenance. 6. Temperature and operating limits - Confirm ambient and media temperature between -20Â°C and +60Â°C. Extreme temperatures can change spring rate or seal elasticity, limiting pressure capability. 7. Testing and replacement - After reassembly, slowly pressurize and verify output on a calibrated gauge. If the valve still cannot reach the set output despite correct supply, clean internals and replace worn components or replace the entire RMS cartridge pneumatic pressure reducing valve. If youâve verified supply pressure â¥10 bar, eliminated downstream leaks, cleaned/replaced internal seals and the problem persists, replace the RMS cartridge pneumatic pressure reducing valve.

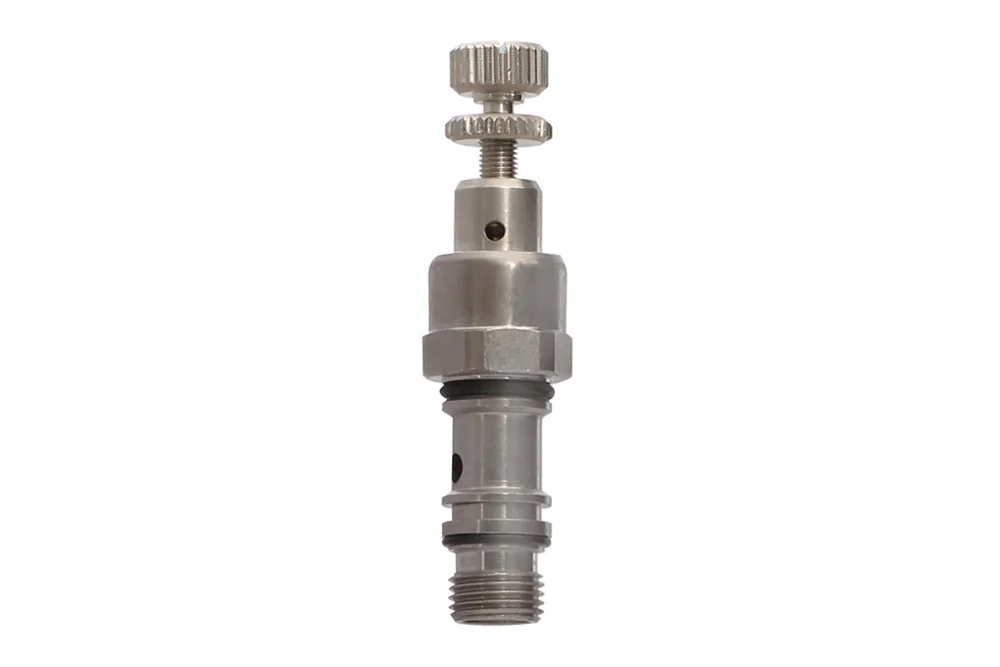

Réducteur de pression pneumatique à cartouche RMS

Raccords fonctionnels, Tous les produits/

Informations complémentaires

Matériau	P – matériau (plastique)

Réducteur de pression en version à cartouche, pour montage direct dans l’appareil ou montage en bloc avec alimentation commune et différents réglages de la pression d’air de sortie. Plage de pression de sortie : 1 ÷ 8 bar. Pression de service : 10 bar. Température de service : de -20°C à +60°C. Fluide : air comprimé filtré, lubrifié ou non lubrifié.

Liste des variantes de produit

Référence article	Nom de la variante du produit	DN	BAR	Disponibilité	Prix	Quantité	Actions	Catalogue
MW-9061001	Soupape réductrice à cartouche RMS, filetage mâle BSP 1/8	-	10	En stock	0 zł		Demande
MW-9061002	Soupape réductrice à cartouche RMS, filetage mâle BSP 1/4	-	10	En stock	0 zł		Demande

Vous avez besoin d'une plus grande quantité de produits ou d'un devis personnalisé ?

Appelez-nous : +33 679 352 568 ou envoyez-nous un e-mail : wirthjeanpierre@aol.fr

Envoyer une demande

Réducteur de pression en version à cartouche, pour montage direct dans l’appareil ou montage en bloc avec alimentation commune et différents réglages de la pression d’air de sortie. Plage de pression de sortie : 1 ÷ 8 bar. Pression de service : 10 bar. Température de service : de -20°C à +60°C. Fluide : air comprimé filtré, lubrifié ou non lubrifié.
