Embout hydraulique vissé 45°, filetage femelle BSP, acier carbone, type DKR S

Informations complémentaires

Matériau	CS – acier (fonte)

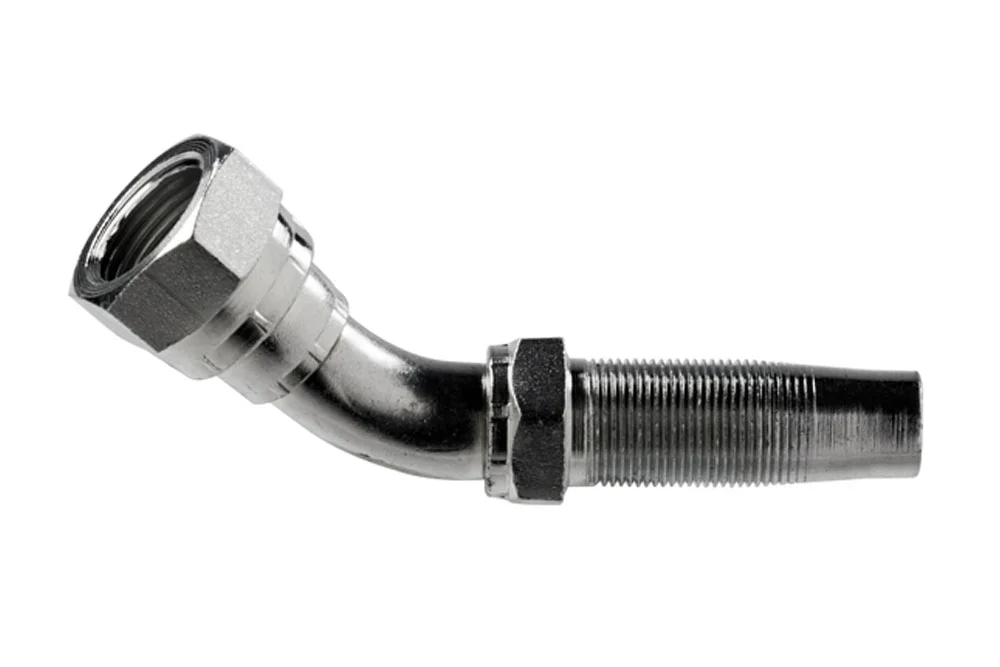

Embout hydraulique vissé, type S, avec filetage interne BSP et écrou, cône d’étanchéité 60° (DKR), coudé 45°. Conçu pour le vissage sur des flexibles en caoutchouc et thermoplastique à l’aide d’une bague vissée. Matière : acier carbone, galvanisé.

Liste des variantes de produit

Référence article	Nom de la variante du produit	DN	BAR	Disponibilité	Actions
TI-SBW310-02-03	Raccord coudé 45° femelle 1/8" BSP, tuyau 3/16"	5	-	En stock	Demande
TI-SBW310-04-03	Raccord coudé vissé 45° FF 1/4" BSP, tuyau 3/16"	5	-	En stock	Demande
TI-SBW310-04-04	Raccord coudé vissé 45° F 1/4" BSP, tuyau 1/4"	6	-	En stock	Demande
TI-SBW310-06-05	Embout coudé vissé 45° femelle 3/8" BSP, tuyau 5/16"	8	-	En stock	Demande
TI-SBW310-06-06	Embout coudé 45° femelle 3/8" BSP, tuyau 3/8"	10	-	En stock	Demande
TI-SBW310-08-08	Embout coudé 45° femelle 1/2" BSP, flexible 1/2"	12	-	En stock	Demande
TI-SBW310-10-10	Embout coudé 45° femelle 5/8" BSP, tuyau 5/8"	16	-	En stock	Demande
TI-SBW310-12-12	Raccord coudé 45° femelle 3/4" BSP, tuyau 3/4"	20	-	En stock	Demande
TI-SBW310-16-16	Raccord à visser 45° femelle 1" BSP, tuyau 1"	25	-	En stock	Demande
TI-SBW310-20-20	Raccord coudé 45° femelle 1.1/4" BSP, tuyau 1.1/4"	32	-	En stock	Demande
TI-SBW310-24-24	Raccord d’extrémité vissable à 45°, femelle 1.1/2" BSP, tuyau 1.1/2"	38	-	En stock	Demande

Vous avez besoin d'une plus grande quantité de produits ou d'un devis personnalisé ?

Appelez-nous : +33 679 352 568 ou envoyez-nous un e-mail : wirthjeanpierre@aol.fr

Envoyer une demande

Embout hydraulique vissé, type S, avec filetage interne BSP et écrou, cône d’étanchéité 60° (DKR), coudé 45°. Conçu pour le vissage sur des flexibles en caoutchouc et thermoplastique à l’aide d’une bague vissée. Matière : acier carbone, galvanisé.
