Can DKL hydraulic end, type ZMW111, light series, AISI 304 steel be crimped using standard crimping sleeves for hydraulic hoses?

Yes . the DKL hydraulic end, type ZMW111, light series, AISI 304 steel can be crimped using a standard crimping sleeve appropriate for the hose type. The product description explicitly states it is "designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the type of hose." Key points to ensure correct and safe crimping: - Use a crimping sleeve matched to the hose construction (e.g., single-wire, multi-wire, textile) and nominal size. - Verify sleeve material and dimensions are compatible with AISI 304 steel fitting and hose specifications. - Ensure the crimping machine and die set are rated for the lightweight series dimensions of ZMW111 to achieve proper crimp diameter and uniform pressure. - Confirm metal-to-metal sealing (internal metric thread and nut, universal cone 24Â°/60Â° DKL) is properly engaged and that the crimped sleeve provides sufficient retention for intended pressure and application. - Follow hose manufacturer and crimp-sleeve supplier guidelines, and perform pressure testing after assembly. If any uncertainty exists about sleeve size or crimping parameters, consult the hose and sleeve manufacturers or technical datasheets before assembly.

Is DKL hydraulic end, type ZMW111, light series, AISI 304 steel compatible with stainless-steel crimping sleeves for industrial hoses?

Yes. DKL hydraulic end, type ZMW111, light series, AISI 304 steel is compatible with stainless-steel crimping sleeves for industrial hoses, provided the sleeve is designed for the specific hose type and crimping dimensions. The fitting is explicitly designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the hose; material AISI 304 is compatible with stainless sleeves. Ensure the sleeve profile, crimp diameter, and crimping procedure match the hose and ZMW111 specifications to achieve a proper metal-to-metal seal and safe operation.

Does DKL hydraulic end, type ZMW111, light series, AISI 304 steel require a specific crimp diameter for compatible sleeves?

DKL hydraulic end, type ZMW111, light series, AISI 304 steel does not specify a single universal crimp diameter in the provided description. The fitting is described as a standard hydraulic end (type Z) with a universal cone (24Â°/60Â° DKL), designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the type of hose. This means the required crimp sleeve diameter depends on the hose construction, hose inner and outer diameters, and the sleeve profile recommended by the hose manufacturer. For correct and safe assembly you must: - Use the crimp sleeve size and profile recommended by the hose manufacturer for the specific hose model paired with the ZMW111 fitting. - Follow crimping tool and procedure specifications (crimp force, die set) appropriate for the sleeve and hose. - Verify compatibility with AISI 304 material if sleeves or mating components require specific materials or surface treatments. If you need a precise crimp diameter, provide the exact hose type (manufacturer and part number) or consult the hose supplierâs crimp charts and the sleeve manufacturerâs recommendations.

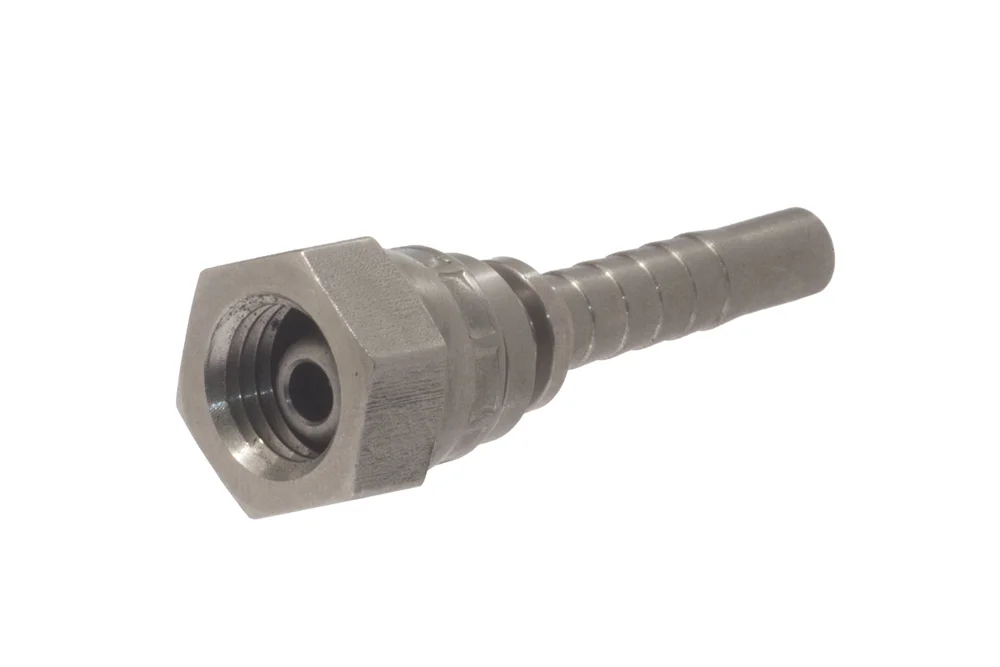

Embout hydraulique DKL, type ZMW111, série légère, acier AISI 304

Informations complémentaires

Matériau	SS – acier inoxydable
Longueur standard [m]	2

Embout hydraulique standard (type Z – avec « queue » hydraulique classique pour flexible), à filetage femelle métrique avec écrou, étanchéité métal-métal, cône universel 24°/60° (DKL), série légère. Destiné au sertissage sur flexibles hydrauliques et industriels à l’aide d’une bague de sertissage adaptée au type de flexible. Matière : acier AISI 304.

Liste des variantes de produit

Référence article	Nom de la variante du produit	DN	BAR	Disponibilité	Actions
TI-ZMW111-12-04-SS304	Embout femelle M12x1,5, tuyau 1/4", 24/60°, léger, AISI 304	6	-	En stock	Demande
TI-ZMW111-16-05-SS304	Embout femelle M16x1,5, tuyau 5/16", 24/60°, léger, AISI 304	8	-	En stock	Demande
TI-ZMW111-16-10-SS304	Embout femelle M16x1,5, tuyau 5/8", 24/60°, léger, AISI 304	16	-	En stock	Demande
TI-ZMW111-18-08-SS304	Extrémité femelle M18x1,5, tuyau 1/2", 24/60°, légère, 304	12	-	En stock	Demande
TI-ZMW111-22-08-SS304	Embout femelle M22x1,5, tuyau 1/2", 24/60°, léger, AISI 304	12	-	En stock	Demande
TI-ZMW111-26-08-SS304	Extrémité femelle M26x1,5, tuyau 1/2", 24/60°, légère, 304	12	-	En stock	Demande
TI-ZMW111-26-10-SS304	Embout femelle M26x1,5, tuyau 5/8", 24/60°, léger, AISI 304	16	-	En stock	Demande
TI-ZMW111-30-12-SS304	Embout femelle M30x2, tuyau 3/4", 24/60°, léger, AISI 304	20	-	En stock	Demande

Vous avez besoin d'une plus grande quantité de produits ou d'un devis personnalisé ?

Appelez-nous : +33 679 352 568 ou envoyez-nous un e-mail : wirthjeanpierre@aol.fr

Envoyer une demande

Embout hydraulique standard (type Z – avec « queue » hydraulique classique pour flexible), à filetage femelle métrique avec écrou, étanchéité métal-métal, cône universel 24°/60° (DKL), série légère. Destiné au sertissage sur flexibles hydrauliques et industriels à l’aide d’une bague de sertissage adaptée au type de flexible. Matière : acier AISI 304.
