Is the AGJ hydraulic end, type ZJZ110 in AISI 316L steel compatible with standard crimping sleeves for hose crimping?

Yes. The AGJ hydraulic end, type ZJZ110 in AISI 316L steel is designed for crimping into hydraulic and industrial hoses using a crimping sleeve that is suitable for the specific hose type. It has a regular hydraulic âtailâ (type Z) and an external UNF thread with sealing on a 74Â° cone (AGJ), which are standard features for hose assemblies intended for sleeve crimping. Ensure you use a crimping sleeve matched to the hose construction and dimensions and follow the hose and sleeve manufacturerâs crimping specifications and tooling settings for proper, leakâfree assembly.

Can AGJ hydraulic end, type ZJZ110, AISI 316L steel be used with hoses requiring a 74Â° cone external UNF thread seal?

Yes. AGJ hydraulic end, type ZJZ110, AISI 316L steel is designed with an external UNF thread and seals on a 74Â° cone (AGJ), and is intended for crimping to hydraulic and industrial hoses using a suitable crimping sleeve. Therefore it is compatible with hoses requiring a 74Â° cone external UNF thread seal, provided the hose assembly uses the correct sleeve and crimping specifications for ZJZ110 and AISI 316L material.

Does AGJ hydraulic end, type ZJZ110, AISI 316L steel require a specific crimping sleeve profile?

NoâAGJ hydraulic end, type ZJZ110, AISI 316L steel does not require a unique or proprietary crimping sleeve profile. The description states it is designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the type of hose. That means you should use a sleeve profile specified by the hose manufacturer (or the hose/crimping system guidelines) that matches the hose construction, diameter, and application. Key points: - The fitting has an external UNF thread and 74Â° cone (AGJ) sealing, but the sleeve selection is driven by the hose type, not the fitting material or cone. - Use a sleeve material and profile recommended for the hose inner/outer layers and operating pressures (e.g., single-wire, two-wire, textile). - Ensure the sleeve dimensions match the hose nominal size and the crimping die set used by your crimping machine. - Follow hose manufacturer crimp specifications (crimp diameter, depth, and pattern) and perform pressure/burst testing after assembly. In short: choose a crimping sleeve compatible with the hose type and the crimping equipment; no special sleeve profile is mandated by the AGJ hydraulic end ZJZ110 itself.

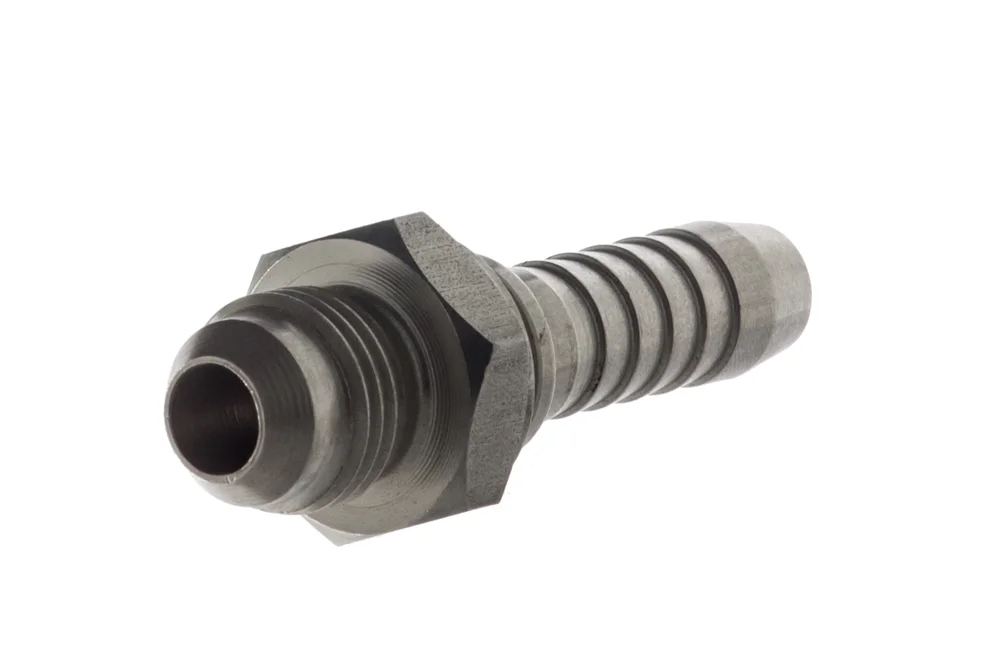

Embout hydraulique AGJ, type ZJZ110, acier AISI 316L

Informations complémentaires

Matériau	SS – acier inoxydable
Longueur standard [m]	50

Embout hydraulique standard (type Z – avec « queue » hydraulique classique pour flexible), avec filetage externe UNF, étanchéité sur cône 74° (AGJ). Conçu pour le sertissage sur flexibles hydrauliques et industriels à l’aide d’une bague de sertissage adaptée au type de flexible. Matière : acier AISI 316L.

Liste des variantes de produit

Référence article	Nom de la variante du produit	DN	BAR	Disponibilité	Actions
TI-ZJZ110-07-03-SS	Raccord terminal JIC mâle 7/16", tuyau 3/16", cône 74°, AISI 316L	5	-	En stock	Demande
TI-ZJZ110-07-04-SS	Embout JIC mâle 7/16", tuyau 1/4", cône 74°, AISI 316L	6	-	En stock	Demande
TI-ZJZ110-08-04-SS	Embout JIC mâle 1/2", tuyau 1/4", cône 74°, AISI 316L	6	-	En stock	Demande
TI-ZJZ110-08-05-SS	Embout JIC mâle 1/2", tuyau 5/16", cône 74°, AISI 316L	8	-	En stock	Demande
TI-ZJZ110-09-04-SS	Embout JIC mâle 9/16", tuyau 1/4", cône 74°, AISI 316L	6	-	En stock	Demande
TI-ZJZ110-09-05-SS	Embout final JIC mâle 9/16", tuyau 5/16", cône 74°, AISI 316L	8	-	En stock	Demande
TI-ZJZ110-09-06-SS	Embout JIC M 9/16", tuyau 3/8", cône 74°, AISI 316L	10	-	En stock	Demande
TI-ZJZ110-12-06-SS	Raccord d’extrémité JIC mâle 3/4", flexible 3/8", cône 74°, AISI 316L	10	-	En stock	Demande
TI-ZJZ110-12-08-SS	Raccord terminal JIC mâle 3/4", tuyau 1/2", cône 74°, AISI 316L	12	-	En stock	Demande
TI-ZJZ110-14-06-SS	Extrémité JIC mâle 7/8", tuyau 3/8", cône 74°, AISI 316L	10	-	En stock	Demande
TI-ZJZ110-14-08-SS	Embout JIC mâle 7/8", flexible 1/2", cône 74°, AISI 316L	12	-	En stock	Demande
TI-ZJZ110-14-10-SS	Raccord JIC mâle 7/8", tuyau 5/8", cône 74°, AISI 316L	16	-	En stock	Demande
TI-ZJZ110-17-10-SS	Raccord d’extrémité JIC mâle 1.1/16", flexible 5/8", cône 74°, AISI 316L	16	-	En stock	Demande
TI-ZJZ110-17-12-SS	Embout JIC mâle 1.1/16", tuyau 3/4", cône 74°, AISI 316L	20	-	En stock	Demande
TI-ZJZ110-17-16-SS	Raccord d’extrémité JIC GZ 1.1/16", tuyau 1", cône 74°, AISI 316L	25	-	En stock	Demande
TI-ZJZ110-21-12-SS	Embout JIC mâle 1 5/16", tuyau 3/4", cône 74°, AISI 316L	20	-	En stock	Demande
TI-ZJZ110-21-16-SS	Raccord terminal JIC mâle 1.5/16", tuyau 1", cône 74°, AISI 316L	25	-	En stock	Demande
TI-ZJZ110-26-16-SS	Embout JIC mâle 1,5/8", tuyau 1", cône 74°, AISI 316L	25	-	En stock	Demande
TI-ZJZ110-26-20-SS	Embout JIC mâle 1.5/8", tuyau 1.1/4", cône 74°, AISI 316L	32	-	En stock	Demande
TI-ZJZ110-30-24-SS	Embout JIC mâle 1.7/8", tuyau 1.1/2", cône 74°, AISI 316L	38	-	En stock	Demande
TI-ZJZ110-40-32-SS	Extrémité JIC GZ 2.1/2", tuyau 2", cône 74°, AISI 316L	50	-	En stock	Demande

Vous avez besoin d'une plus grande quantité de produits ou d'un devis personnalisé ?

Appelez-nous : +33 679 352 568 ou envoyez-nous un e-mail : wirthjeanpierre@aol.fr

Envoyer une demande

Embout hydraulique standard (type Z – avec « queue » hydraulique classique pour flexible), avec filetage externe UNF, étanchéité sur cône 74° (AGJ). Conçu pour le sertissage sur flexibles hydrauliques et industriels à l’aide d’une bague de sertissage adaptée au type de flexible. Matière : acier AISI 316L.
