Is the Elbow 90Â° with GW NPT stainless steel, 100H compatible with AISI 316 chemical-resistant applications and high-pressure systems?

Yes. The Elbow 90Â° with GW NPT stainless steel, 100H is made of AISI 316, which offers excellent corrosion resistance to many chemicals (including chlorides to a practical extent), making it suitable for most chemical, petrochemical, pharmaceutical and process engineering applications. Its intended use in energy and nuclear industries further indicates design and material selection for demanding environments. However, for high-pressure systems you must verify the specific pressure rating and wall thickness of the type 100H fitting against your systemâs maximum allowable working pressure (MAWP) and applicable standards (ASME, PED, etc.). AISI 316 provides good mechanical strength, but compatibility with high-pressure service depends on the partâs pressure class, thread integrity (internal NPT), jointing method, and operating temperature. Also confirm chemical compatibility for any aggressive agents (e.g., strong chlorides at high temperature, certain halogenated compounds, hot acids) and consider corrosion allowance, welding quality and traceability requirements for critical or nuclear applications. Summary: Material and intended industries indicate suitability for chemical-resistant applications; suitability for high-pressure systems requires checking the 100H fittingâs specific pressure rating, jointing details and service conditions.

Can Elbow 90Â° with GW NPT stainless steel, 100H be used in nuclear power and pharmaceutical piping systems?

Yes. Elbow 90Â° with GW NPT stainless steel, 100H can be used in nuclear power and pharmaceutical piping systems. It is described as primarily intended for the chemical, petrochemical, pharmaceutical, energy, nuclear power, and process engineering industries, and is made of AISI 316 stainless steel, which offers corrosion resistance and compatibility with many process fluids. Final suitability depends on project-specific requirements: pressure/temperature ratings, NPT internal thread compatibility, regulatory and qualification standards (nuclear codes, pharmaceutical GMP/ASME/BPE), traceability, testing, and any additional surface finish or documentation required.

Does Elbow 90Â° with GW NPT stainless steel, 100H meet ASME/B31 code requirements for process piping?

No. not by itself. Reasoning (concise): ASME B31 (process piping codes such as B31.1, B31.3) requires components to be designed, manufactured, and documented to applicable code rules (materials, pressure-temperature ratings, wall thickness, joint types, testing, marking, and traceability). A generic product description. "Elbow 90Â° with GW NPT stainless steel, 100H Format; 90Â° elbow with internal NPT thread, type 100H, primarily intended for the chemical, petrochemical, pharmaceutical, energy, nuclear power, and process engineering industries. Material: AISI 316 steel.". does not provide the mandatory information to demonstrate compliance: - Material spec: AISI 316 is acceptable material for many services, but ASME requires a listed material specification (e.g., UNS S31600 / ASTM designation) with mechanical properties at design temperature. Supplier must supply material certificates traceable to the applicable ASTM/ASME spec. - Pressure-temperature rating: ASME requires allowable stress and pressure-temperature ratings for the fitting. A threaded internal NPT elbow will have pressure limitations that must be documented; NPT joints are generally considered limited for high-pressure or cyclic services. - Wall thickness and design calculations: Required to show adequate wall thickness and reinforcement for allowable internal pressure per B31 rules. - Joining method: NPT female threaded ends are not a full-code welded or forged joint; use of threaded fittings is restricted in many ASME B31 applications (temperature, vibration, cyclic loading, hazardous fluids). Code approval depends on service conditions and may prohibit threaded fittings in certain cases. - Manufacturing, testing, and documentation: ASME requires nondestructive examination, hydrostatic or pneumatic testing, marking, and manufacturer traceability as applicable. No such documentation is included in the description. - Nuclear service: If used in nuclear systems (ASME Section III), additional strict material and fabrication qualifications apply; a generic 100H description is insufficient. Conclusion: To determine ASME B31 compliance you need supplier documentation: material certificates to ASME/ASTM spec, pressure-temperature ratings or fittings schedule, design calculations, allowable stress data, manufacturing and testing records, and confirmation that threaded NPT connections are acceptable for the intended service and code variant. Without those, "Elbow 90Â° with GW NPT stainless steel, 100H Format" cannot be assumed to meet ASME/B31 requirements.

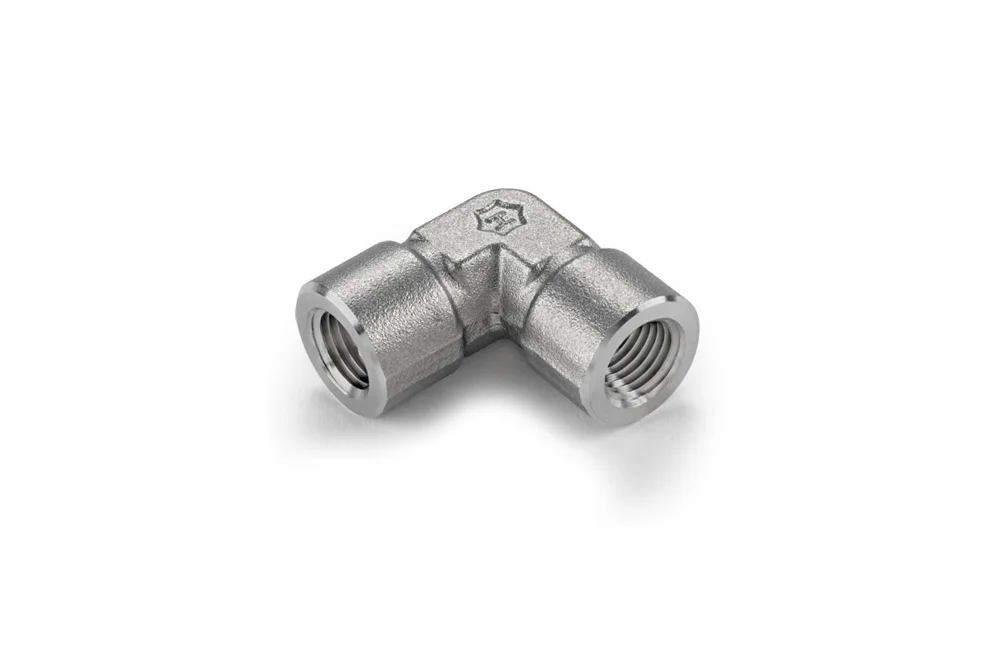

Coude 90° à filetage femelle NPT en acier inoxydable, 100H

Fixations filetées de précision, Tous les produits/

Informations complémentaires

Matériau	SS – acier inoxydable

Coude 90° à filetage femelle NPT, type 100H, destiné principalement à l’industrie chimique, pétrochimique, pharmaceutique, à l’énergie, aux centrales nucléaires et à l’ingénierie des procédés. Matériau : acier AISI 316.

Liste des variantes de produit

Référence article	Nom de la variante du produit	DN	BAR	Disponibilité	Actions
HM-P100H-02-SS	Coude 90° femelle 1/8" NPT, inox	-	448	En stock	Demande
HM-P100H-04-SS	Coude 90° femelle 1/4" NPT, inox	-	455	En stock	Demande
HM-P100H-06-SS	Coude 90° femelle 3/8" NPT, inox	-	366	En stock	Demande
HM-P100H-08-SS	Coude 90° femelle 1/2" NPT, inox	-	338	En stock	Demande
HM-P100H-12-SS	Coude 90° femelle 3/4" NPT, inox	-	317	En stock	Demande
HM-P100H-16-SS	Coude 90° femelle 1" NPT, inox	-	303	En stock	Demande

Vous avez besoin d'une plus grande quantité de produits ou d'un devis personnalisé ?

Appelez-nous : +33 679 352 568 ou envoyez-nous un e-mail : wirthjeanpierre@aol.fr

Envoyer une demande

Coude 90° à filetage femelle NPT, type 100H, destiné principalement à l’industrie chimique, pétrochimique, pharmaceutique, à l’énergie, aux centrales nucléaires et à l’ingénierie des procédés. Matériau : acier AISI 316.
