Is the Elbow 90Â° with GW NPT/GZ NPT stainless steel, 116H compatible with AISI 316 corrosion-resistant welding and cleaning procedures for chemical and pharmaceutical applications?

Yes. Elbow 90Â° with GW NPT/GZ NPT stainless steel, 116H, made of AISI 316, is compatible with industry-standard corrosion-resistant welding and cleaning procedures used in chemical and pharmaceutical applications. AISI 316 offers excellent corrosion resistance (moist chloride environments, many chemicals) and is commonly accepted for pharmaceutical process equipment. The 116H 90Â° elbow with internal and external NPT threads is suitable for applications requiring hygienic cleaning (CIP/SIP) provided welding and installation follow proper practices: use qualified welders, proper filler metals (matching or compatible stainless fillers like 316L/316), control heat input, apply post-weld cleaning/passivation to remove iron contamination, and perform pickling/passivation or electropolishing as required by the application. For pharmaceutical use, verify surface finish, crevice-free jointing, and traceability/certification (material certificates, weld procedure specifications) to meet regulatory and GMP requirements. Also confirm compatibility with specific chemical exposures, pressure/temperature ratings, and any customer-specific validation before installation.

Does the Elbow 90Â° with GW NPT/GZ NPT stainless steel, 116H meet AISI 316 requirements for high-temperature service in petrochemical plants?

The Elbow 90Â° with GW NPT/GZ NPT stainless steel, 116H is made of AISI 316, which provides good corrosion resistance and mechanical properties up to moderately elevated temperatures. However, AISI 316 is not specifically qualified for high-temperature service in petrochemical plants where creep resistance, carburization resistance, and specific high-temperature mechanical properties are required; grades such as 316H (higher C for strength at temperature) or other alloyed stainless steels (e.g., 321, 347, duplex or nickel alloys) are typically specified. Therefore, unless the plantâs temperature and pressure limits fall within AISI 316âs allowable service range per applicable codes and the purchaser verifies operating conditions and certifications, the Elbow 90Â° with GW NPT/GZ NPT stainless steel, 116H generally does not meet typical high-temperature service requirements for petrochemical applications.

Can the Elbow 90Â° with GW NPT/GZ NPT stainless steel, 116H be used in nuclear power plant piping systems?

Yes. Elbow 90Â° with GW NPT/GZ NPT stainless steel, 116H can be used in nuclear power plant piping systems, but with conditions. Why itâs suitable: - The product description explicitly lists ânuclear powerâ among intended industries, indicating design intent for such applications. - Material AISI 316 (stainless steel) offers good corrosion resistance, mechanical strength and temperature performance suitable for many nuclear plant service conditions. - The 90Â° elbow geometry with internal/external NPT threads provides a standard threaded connection option used in various auxiliary and process systems. Conditions and limitations (must be verified case-by-case): - Compliance and certification: Nuclear applications normally require specific nuclear-grade materials, traceability (e.g., material test reports), and certifications (ASME, ASTM, NQA-1, or plant-specific vendor qualification). Confirm the elbowâs documentation meets the plantâs procurement and regulatory requirements. - Radiation, temperature and pressure: Verify the elbowâs rated pressure, temperature limits and long-term behavior under the actual service conditions (including radiation effects if applicable). - Leakage and mechanical integrity: Threaded NPT connections are generally less robust than welded or flanged joints for primary reactor coolant circuits. Use is typically limited to secondary systems, instrumentation, drain/vent lines, or non-safety-critical piping unless authorized by engineering analysis. - Seismic, fatigue and aging: Ensure the component meets seismic, fatigue and aging management criteria per plant engineering standards. - Compatibility: Confirm chemical compatibility with the specific fluids and any insulators, coatings or seals used. Conclusion: Elbow 90Â° with GW NPT/GZ NPT stainless steel, 116H is intended for nuclear power industry use and its AISI 316 construction can be acceptable, but final approval requires verification of certifications, mechanical ratings, service conditions and plant-specific engineering acceptance.

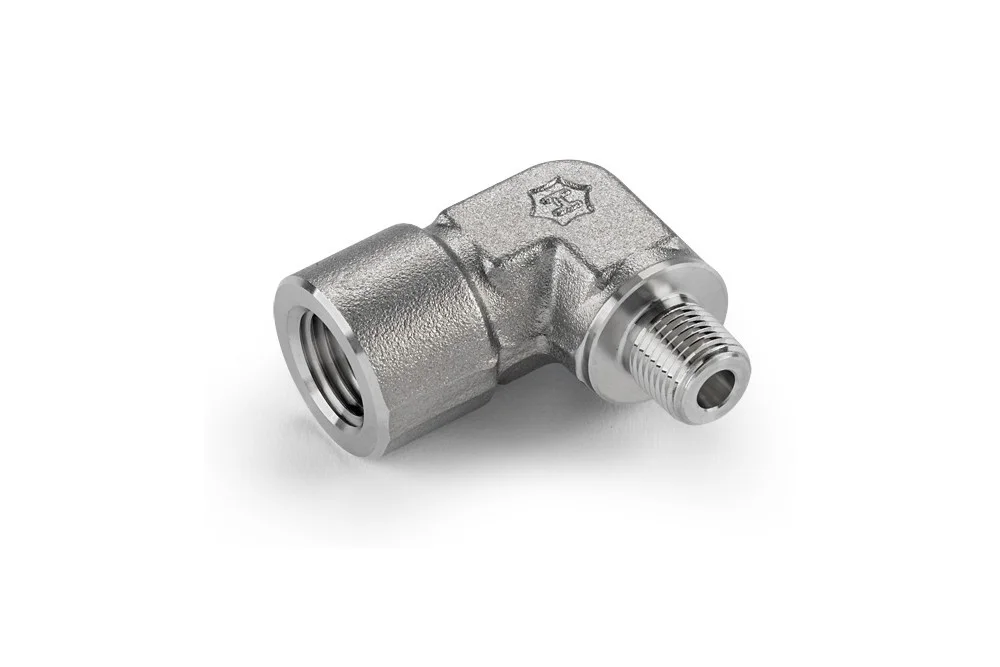

Coude 90° à filetage femelle NPT / filetage mâle NPT, acier inoxydable, 116H

Fixations filetées de précision, Tous les produits/

Informations complémentaires

Matériau	SS – acier inoxydable

Coude 90° à filetage femelle et filetage mâle NPT, type 116H, destiné principalement aux industries chimique, pétrochimique, pharmaceutique, à l’énergie, aux centrales nucléaires et à l’ingénierie des procédés. Matériau : acier AISI 316.

Liste des variantes de produit

Référence article	Nom de la variante du produit	DN	BAR	Disponibilité	Actions
HM-P116H-01-01-SS	Coude 90° FF 1/16" NPT / MF 1/16" NPT, inox	-	462	En stock	Demande
HM-P116H-02-01-SS	Coude 90° FF 1/8" NPT / MF 1/16" NPT, inox	-	462	En stock	Demande
HM-P116H-02-02-SS	Coude 90° FF 1/8" NPT / MF 1/8" NPT, inox	-	448	En stock	Demande
HM-P116H-04-02-SS	Coude 90° FF 1/4" NPT / MF 1/8" NPT, inox	-	448	En stock	Demande
HM-P116H-04-04-SS	Coude 90° FF 1/4" NPT / MF 1/4" NPT, inox	-	455	En stock	Demande
HM-P116H-06-04-SS	Coude 90° FF 3/8" NPT / MF 1/4" NPT, inox	-	455	En stock	Demande
HM-P116H-06-06-SS	Coude 90° FF 3/8" NPT / MF 3/8" NPT, inox	-	366	En stock	Demande
HM-P116H-08-04-SS	Coude 90° FF 1/2" NPT / MF 1/4" NPT, inox	-	455	En stock	Demande
HM-P116H-08-06-SS	Coude 90° FF 1/2" NPT / MF 3/8" NPT, inox	-	366	En stock	Demande
HM-P116H-08-08-SS	Coude 90° FF 1/2" NPT / MF 1/2" NPT, inox	-	338	En stock	Demande
HM-P116H-12-12-SS	Coude 90° FF 3/4" NPT / MF 3/4" NPT, inox	-	317	En stock	Demande
HM-P116H-16-12-SS	Coude 90° FF 1" NPT / MF 3/4" NPT, inox	-	317	En stock	Demande
HM-P116H-16-16-SS	Coude 90° FF 1" NPT / MF 1" NPT, inox	-	303	En stock	Demande

Vous avez besoin d'une plus grande quantité de produits ou d'un devis personnalisé ?

Appelez-nous : +33 679 352 568 ou envoyez-nous un e-mail : wirthjeanpierre@aol.fr

Envoyer une demande

Coude 90° à filetage femelle et filetage mâle NPT, type 116H, destiné principalement aux industries chimique, pétrochimique, pharmaceutique, à l’énergie, aux centrales nucléaires et à l’ingénierie des procédés. Matériau : acier AISI 316.
