Can Adaptor 90Â° with GZ BSP/flange SAE 3000, carbon steel, type A120 be used with both 60Â° cone sealing and O-ring flange gaskets interchangeably?

Yes . Adaptor 90Â° with GZ BSP/flange SAE 3000, carbon steel, type A120 is designed to accept two different sealing methods on its two ends, but they are not interchangeable on the same connection and must be used as intended: - The BSP (GZ) threaded end uses a 60Â° cone sealing. That end requires a matching 60Â° cone seat on the mating fitting; sealing is achieved by metal-to-metal cone contact and cannot be substituted with an Oâring or a flat flange gasket. - The SAE 3000 flange end uses an Oâring (or other gasket located in the flange groove) for sealing. That flange face is prepared for an Oâring/gasket in the groove and is not compatible with 60Â° cone sealing. So, you can use both sealing types on the same adaptor assembly (one end cone-sealed, the other Oâring/gasket-sealed), but you cannot interchange the sealing style on a single end. Ensure you use the correct mating parts and gasket/cone specifications for each end to maintain pressure integrity and avoid leaks.

Is Adaptor 90Â° with GZ BSP/flange SAE 3000, carbon steel, type A120 compatible with both 60Â° cone and O-ring flange gaskets?

Yes. Adaptor 90Â° with GZ BSP/flange SAE 3000, carbon steel, type A120 is compatible with both 60Â° cone and O-ring flange gaskets: the BSP external thread provides 60Â° cone sealing, and the SAE 3000 flange accepts an O-ring (or other gasket) in the flange groove.

Does Adaptor 90Â° with GZ BSP/flange SAE 3000, carbon steel, type A120 support both 60Â° cone and O-ring flange sealing?

Yes. Adaptor 90Â° with GZ BSP/flange SAE 3000, carbon steel, type A120 supports both sealing types: the external BSP thread provides 60Â° cone sealing, and the SAE 3000 flange accepts Oâring sealing (or another gasket placed in the flange groove).

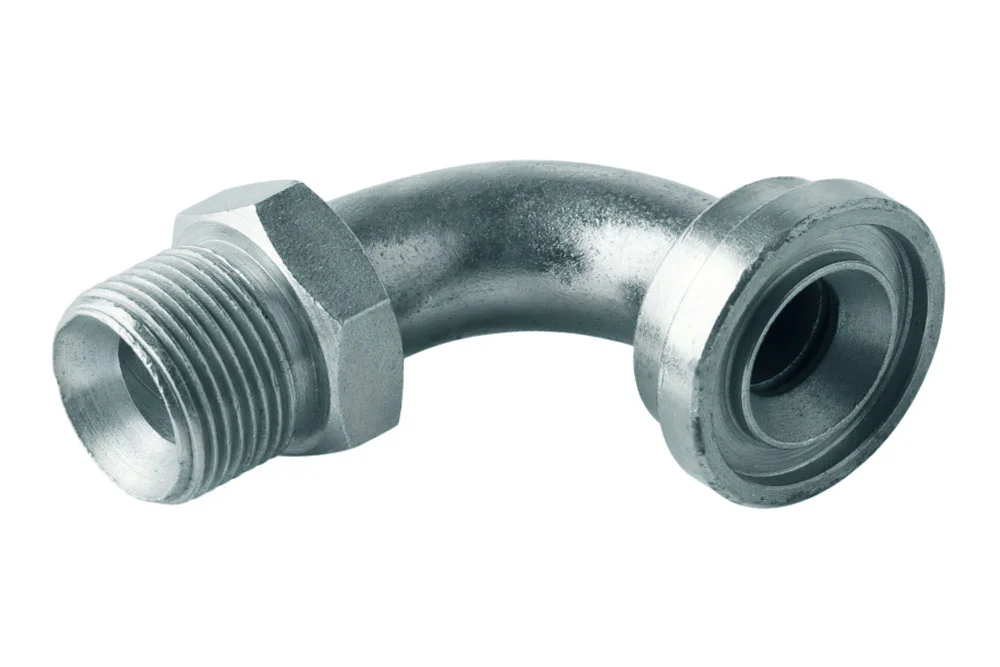

Adaptateur 90° à filetage mâle BSP/bride SAE 3000, acier au carbone, type A120

Adaptateurs haute pression, Tous les produits/

Informations complémentaires

Matériau	CS – acier (fonte)

Adaptateur 90° haute pression type A120 à filetage mâle BSP (étanchéité par cône 60°) et à bride SAE 3000 (étanchéité par joint torique ou autre joint dans la gorge de la bride). Matériau : acier au carbone, galvanisé.

Liste des variantes de produit

Référence article	Nom de la variante du produit	DN	BAR	Disponibilité	Actions
TI-A120-08	Adaptateur 90° à bride SAE 3000 1/2" / 1/2" BSP	-	345	En stock	Demande
TI-A120-12	Adaptateur 90° à bride SAE 3000 3/4" / 3/4" BSP	-	315	En stock	Demande
TI-A120-16	Adaptateur 90° à bride SAE 3000 1" / 1" BSP	-	250	En stock	Demande
TI-A120-20	Adaptateur 90° à bride SAE 3000 1.1/4" / 1.1/4" BSP	-	200	En stock	Demande
TI-A120-24	Adaptateur 90° à bride SAE 3000 1.1/2" / 1.1/2" BSP	-	160	En stock	Demande
TI-A120-32	Adaptateur 90° à bride SAE 3000 2" / 2" BSP	-	125	En stock	Demande

Vous avez besoin d'une plus grande quantité de produits ou d'un devis personnalisé ?

Appelez-nous : +33 679 352 568 ou envoyez-nous un e-mail : wirthjeanpierre@aol.fr

Envoyer une demande

Adaptateur 90° haute pression type A120 à filetage mâle BSP (étanchéité par cône 60°) et à bride SAE 3000 (étanchéité par joint torique ou autre joint dans la gorge de la bride). Matériau : acier au carbone, galvanisé.
