Is the Adaptor 90Â° with GZ BSP, stainless steel, type A116 compatible with both 60Â° cone sealed external BSP male threads?

Yes. The Adaptor 90Â° with GZ BSP, stainless steel, type A116 is compatible with external BSP male threads that use a 60Â° cone seal. The product description specifies two external BSP threads (60Â° cone seal) and material AISI 316L, indicating both sealing faces are designed for the 60Â° cone interface used on external BSP male fittings. Ensure thread size and pressure rating match the mating male threads, and verify correct tightening to achieve the cone seal.

Does the Adaptor 90Â° with GZ BSP, stainless steel, type A116 require specific torque settings for sealing 60Â° cone external BSP threads?

Adaptor 90Â° with GZ BSP, stainless steel, type A116: No specific torque value is provided in the given description. For sealing 60Â° cone external BSP threads the correct practice is to tighten until a metal-to-metal cone contact is achieved without overâstressing the stainless steel (AISI 316L). Use calibrated tools and follow general guidance for BSP cone fittings: start with hand-tight, then apply incremental wrench turns (commonly 1â2 turns) until the cone seats; if available, follow manufacturer torque specs or test assembly for leak tightness. Avoid excessive torque to prevent thread or cone damage; if precise torque is required for your system, consult the manufacturerâs datasheet or technical support.

Can Adaptor 90Â° with GZ BSP, stainless steel, type A116 be used with differing BSP thread sizes on each end?

Yes. Adaptor 90Â° with GZ BSP, stainless steel, type A116 can be used with differing BSP thread sizes on each end, provided a few conditions are met. 1. Thread type compatibility: Both ends of the Adaptor 90Â° with GZ BSP, stainless steel, type A116 are described as external BSP threads with 60Â° cone seals. That means they are BSP (British Standard Pipe) parallel or tapered male threads designed to seal via the cone seat. You must ensure both mating fittings use the same BSP family (e.g., BSPP/BSPT as applicable for the cone seal) so thread form and sealing method match. 2. Size and engagement: Mechanically, the adapter may have different nominal thread sizes on each end if manufactured that way (i.e., stepped adapter). Confirm the specific product variant or part number supports the two different BSP sizes you intend to join. The smaller and larger threads must allow sufficient thread engagement and not compromise strength. 3. Pressure and sealing: Because the seals are 60Â° cone type, correct cone seat seating and torque are essential. Using mismatched or incorrect seat angles, wrong mating components, or inadequate torque can cause leaks or failure under high pressure. Verify pressure ratings for your combined assembly; differing diameters can affect allowable pressure. 4. Material and application: AISI 316L stainless steel is suitable for many corrosive and high-pressure environments, but ensure chemical compatibility and temperature limits for your application. Recommendation: Check the manufacturerâs technical data and ordering codes to confirm the adapter variant supports two different BSP sizes, and verify installation torque, mating part geometry (60Â° cone), and rated pressure for the specific size combination before use.

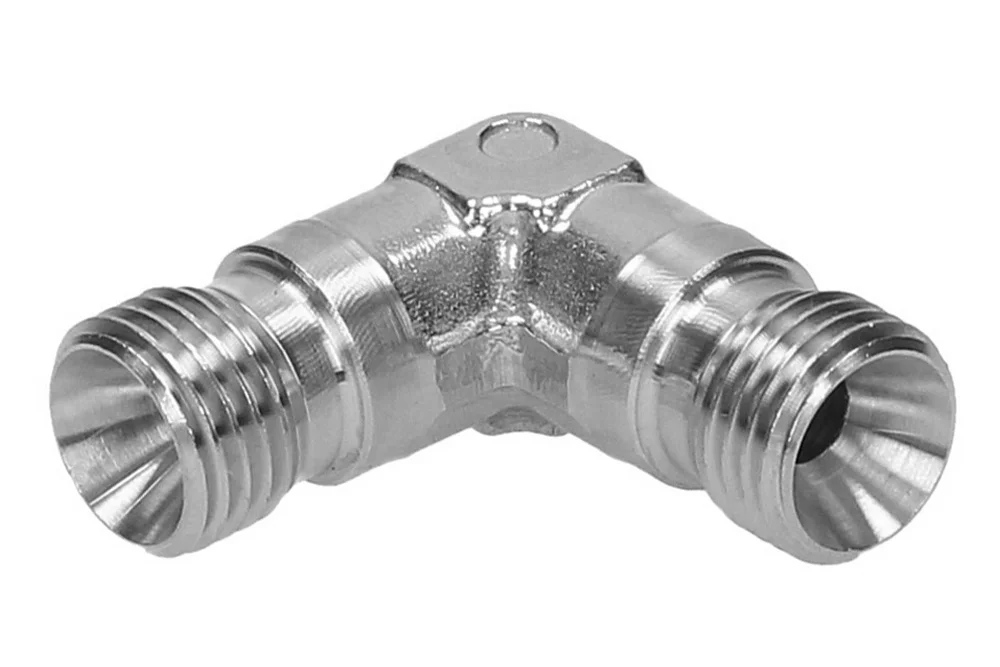

Adaptateur 90° à filetage mâle BSP, acier inoxydable, type A116

Adaptateurs haute pression, Tous les produits/

Informations complémentaires

Matériau	SS – acier inoxydable

Adaptateur 90° haute pression de type A116 à filetage mâle BSP (étanchéité cône 60°) et à filetage mâle BSP (étanchéité cône 60°). Matériau : acier AISI 316L.

Liste des variantes de produit

Référence article	Nom de la variante du produit	DN	BAR	Disponibilité	Actions
TI-A116-02-SS	Adaptateur 90° filetage mâle BSP 1/8" / filetage mâle BSP 1/8", AISI 316	-	400	En stock	Demande
TI-A116-04-SS	Adaptateur 90° filetage mâle BSP 1/4" / filetage mâle BSP 1/4", AISI 316	-	400	En stock	Demande
TI-A116-06-SS	Adaptateur 90° filetage mâle BSP 3/8" / filetage mâle BSP 3/8", AISI 316	-	400	En stock	Demande
TI-A116-08-SS	Adaptateur 90° filetage mâle BSP 1/2" / filetage mâle BSP 1/2", AISI 316	-	350	En stock	Demande
TI-A116-12-SS	Adaptateur 90° filetage mâle BSP 3/4" / filetage mâle BSP 3/4", AISI 316	-	315	En stock	Demande
TI-A116-16-SS	Adaptateur 90° filetage mâle BSP 1" / filetage mâle BSP 1", AISI 316	-	250	En stock	Demande
TI-A116-20-SS	Adaptateur 90° filetage mâle BSP 1.1/4" / filetage mâle BSP 1.1/4", AISI 316	-	200	En stock	Demande

Vous avez besoin d'une plus grande quantité de produits ou d'un devis personnalisé ?

Appelez-nous : +33 679 352 568 ou envoyez-nous un e-mail : wirthjeanpierre@aol.fr

Envoyer une demande

Adaptateur 90° haute pression de type A116 à filetage mâle BSP (étanchéité cône 60°) et à filetage mâle BSP (étanchéité cône 60°). Matériau : acier AISI 316L.
