Can the Hydraulic system safety valve, type MFP be serviced in-line without depressurizing the entire system?

No. The Hydraulic system safety valve, type MFP cannot be safely serviced in-line without depressurizing the system. Its function is to detect sudden excess flow (e.g., hose rupture) and mechanically close flow in the A1 â A direction; servicing requires access to the valve body and internals (hardened steel valve, metal-to-metal sealing) and risks oil loss, unintended actuation, or injury if pressure remains. Because the valve is part of the primary pressure-containing path and uses metal-metal seals, any disassembly or replacement of components must be performed on a depressurized, isolated system and following appropriate lockout/tagout and safe-drain procedures.

Is the Hydraulic system safety valve, type MFP compatible with other hydraulic fluids besides standard mineral oil?

Hydraulic system safety valve, type MFP uses metal-to-metal sealing and materials (carbon steel body, hardened steel valve) designed for standard mineral oil. Metal-metal seals and lack of elastomeric seals limit compatibility: many synthetic fluids, water-glycol, phosphate esters or fireâresistant fluids have different lubricity, corrosion and viscosity characteristics that can affect sealing, wear and operating temperature behaviour. Short answer: it may work with some other hydraulic fluids, but compatibility is not guaranteed. Before use with nonâmineral oils you must consult the manufacturer for approved fluids and perform compatibility tests (corrosion, wear, leakage, temperature performance). Use only fluids certified by the valve maker to avoid damage or loss of safety function.

How does the Hydraulic system safety valve, type MFP behave during rapid pressure spikes from actuator failure?

Hydraulic system safety valve, type MFP is designed to protect the hydraulic system from rapid oil loss caused by sudden actuator failure (e.g., hose rupture). Under normal operation it permits oil flow in both directions: freely from A â A1 and through the valve from A1 â A. When a rapid pressure spike or sudden high flow occurs due to a leak or rupture, the valve reacts by closing the flow in the A1 â A direction, effectively isolating the leaking branch and preventing large-volume oil evacuation. The valveâs metal-to-metal sealing and hardened-steel internal parts ensure a fast, reliable shutoff under high transient flows; the carbon-steel, galvanized body provides structural strength and corrosion resistance. The device operates across a wide temperature range (â30Â°C to +100Â°C), maintaining its protective function during rapid pressure excursions associated with actuator failure.

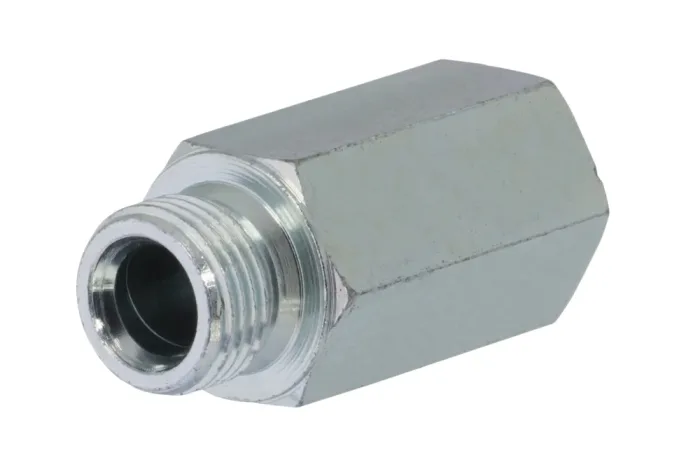

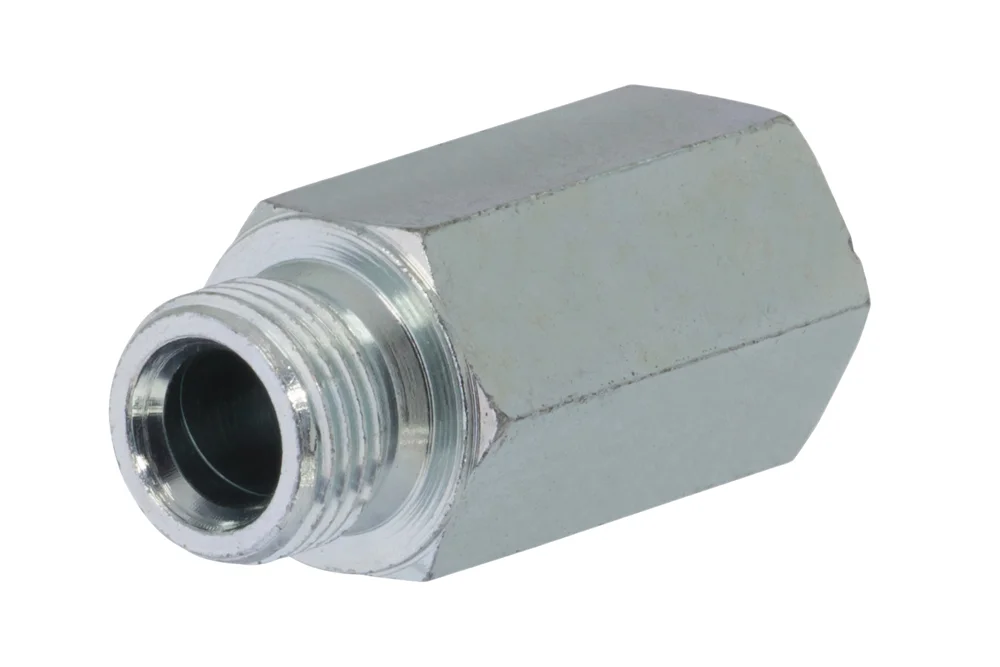

Clapet de sécurité pour circuit hydraulique, type MFP

Tous les produits, Vannes de régulation de débit/

Informations complémentaires

Matériau	CS – acier (fonte)

Clapet MFP protégeant le circuit hydraulique contre la perte d’huile en cas de défaut d’étanchéité brutal de l’installation (par exemple rupture de conduite). En fonctionnement normal du circuit, le clapet laisse circuler l’huile dans les deux sens. En cas d’augmentation soudaine du débit (par exemple rupture de conduite), le clapet coupe l’écoulement de l’huile dans un sens. Sens d’écoulement admissible : A → A1 (libre), A1 → A (clapet). Matière : acier au carbone galvanisé (corps), acier trempé (clapet). Étanchéité : métal-métal. Température de service : de -30°C à +100°C.

Liste des variantes de produit

Référence article	Nom de la variante du produit	DN	BAR	Disponibilité	Actions
DC-MFP-04	Soupape de sécurité MFP filetage mâle 1/4	-	350	En stock	Demande
DC-MFP-06	Soupape de sécurité MFP filetage mâle 3/8	-	350	En stock	Demande
DC-MFP-08	Soupape de sécurité MFP filetage mâle 1/2	-	350	En stock	Demande
DC-MFP-12	Soupape de sécurité MFP filetage mâle 3/4	-	350	En stock	Demande
DC-MFP-16	Soupape de sécurité MFP filetage mâle 1	-	300	En stock	Demande

Vous avez besoin d'une plus grande quantité de produits ou d'un devis personnalisé ?

Appelez-nous : +33 679 352 568 ou envoyez-nous un e-mail : wirthjeanpierre@aol.fr

Envoyer une demande

Clapet MFP protégeant le circuit hydraulique contre la perte d’huile en cas de défaut d’étanchéité brutal de l’installation (par exemple rupture de conduite). En fonctionnement normal du circuit, le clapet laisse circuler l’huile dans les deux sens. En cas d’augmentation soudaine du débit (par exemple rupture de conduite), le clapet coupe l’écoulement de l’huile dans un sens. Sens d’écoulement admissible : A → A1 (libre), A1 → A (clapet). Matière : acier au carbone galvanisé (corps), acier trempé (clapet). Étanchéité : métal-métal. Température de service : de -30°C à +100°C.
