How do I adjust the flow on the Throttle valve used in hydraulic systems, type FPMB, and what is the permitted flow direction?

To adjust the flow on the Throttle valve used in hydraulic systems, type FPMB, rotate the control ring: turning the ring toward the closed position reduces the orifice and decreases flow; turning it toward the open position enlarges the orifice and increases flow. Regulation is continuous, allowing fine tuning of flow rate. Permitted flow direction for the Throttle valve used in hydraulic systems, type FPMB is A â A1 and A1 â A; the valve may be used in either direction within those ports. Additional relevant data: body material is carbon steel, galvanized; sealing is NBR; operating temperature range is -20Â°C to +90Â°C.

What maintenance is required for the Throttle valve used in hydraulic systems, type FPMB to ensure reliable operation?

For reliable operation of the Throttle valve used in hydraulic systems, type FPMB, perform the following maintenance: - Regular visual inspection for external damage, corrosion or loose fittings; check the galvanized body for coating wear. - Clean valve exterior and rotating ring to prevent contamination build-up that impedes adjustment. - Operate the rotating ring periodically through full range to prevent sticking and verify smooth flow regulation. - Check sealing (NBR) for wear, cracking or hardening-replace seals if any deterioration or leaks appear. - Inspect connections and hoses for leaks and proper torque; ensure flow direction A â A1 is respected. - Monitor fluid cleanliness and replace or filter hydraulic oil to prevent abrasive wear on internal parts. - Verify operation across temperature range (-20Â°C to +90Â°C); in cold conditions ensure seals remain flexible. - After maintenance, test for correct flow control and absence of leaks before returning to service.

Can Throttle valve used in hydraulic systems, type FPMB be used outside -20Â°C to +90Â°C range?

No. Throttle valve used in hydraulic systems, type FPMB Format is specified with sealing made of NBR (nitrile rubber) and an operating temperature range of -20Â°C to +90Â°C. Using it outside that range risks seal hardening, loss of elasticity, leakage at low temperatures, and swelling, softening or premature aging at high temperatures. Additionally, extreme temperatures can affect the galvanized carbon steel body and clearances, altering flow control performance and potentially causing malfunction or safety hazards. If service below -20Â°C or above +90Â°C is required, choose a valve with seals and materials rated for those temperatures (e.g., FKM/Viton, PTFE, or specially qualified components) or consult the manufacturer for suitable alternatives or certified low/high-temperature versions.

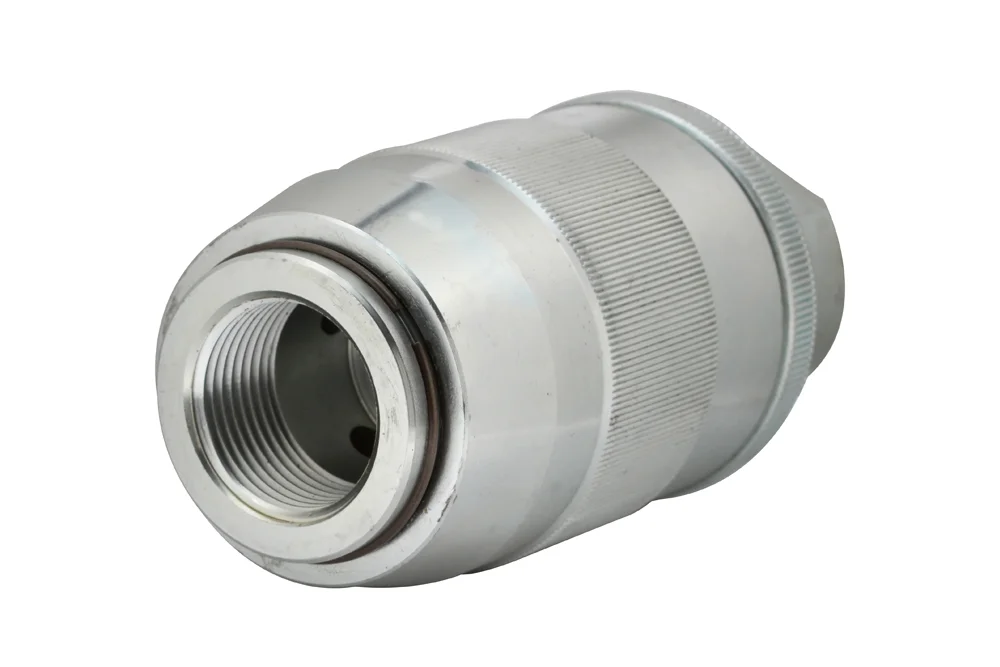

Vanne à étranglement utilisée dans les circuits hydrauliques, type FPMB

Tous les produits, Vannes de régulation de débit/

Informations complémentaires

Matériau	CS – acier (fonte)

Vanne à étranglement réglable de type FPMB utilisée dans les circuits hydrauliques comme élément de commande du débit. Le réglage du débit s’effectue à l’aide d’une bague rotative. Sens d’écoulement admissible : A → A1, A1 → A. Matière : acier au carbone, galvanisé (corps). Étanchéité : NBR. Température de service : de -20°C à +90°C.

Liste des variantes de produit

Référence article	Nom de la variante du produit	DN	BAR	Disponibilité	Actions
DC-FPMB-04	Vanne d’étranglement FPMB filetage femelle 1/4	-	350	En stock	Demande
DC-FPMB-06	Vanne d’étranglement FPMB filetage femelle 3/8	-	350	En stock	Demande
DC-FPMB-08	Vanne d’étranglement FPMB filetage femelle 1/2	-	35	En stock	Demande
DC-FPMB-12	Vanne d’étranglement FPMB filetage femelle 3/4	-	280	En stock	Demande
DC-FPMB-16	Vanne d’étranglement FPMB filetage femelle 1	-	250	En stock	Demande

Vous avez besoin d'une plus grande quantité de produits ou d'un devis personnalisé ?

Appelez-nous : +33 679 352 568 ou envoyez-nous un e-mail : wirthjeanpierre@aol.fr

Envoyer une demande

Vanne à étranglement réglable de type FPMB utilisée dans les circuits hydrauliques comme élément de commande du débit. Le réglage du débit s’effectue à l’aide d’une bague rotative. Sens d’écoulement admissible : A → A1, A1 → A. Matière : acier au carbone, galvanisé (corps). Étanchéité : NBR. Température de service : de -20°C à +90°C.
