Does the MR FC compressed air regulator, BIT series with controlled bleed improve pressure stability compared to standard regulators?

Yes. The MR FC compressed air regulator, BIT series with controlled bleed improves pressure stability compared to standard regulators. The controlled-bleed design continuously and slightly vents air to the atmosphere, which reduces pressure overshoot and minimizes fluctuations around the setpoint. This continuous small bleed allows the regulator to maintain a more accurate output pressure value, especially under varying downstream demand. With available output ranges of 0â2 bar, 0â4 bar, or 0â12 bar, a supply pressure up to 13 bar, and operation up to +50Â°C, the BIT version is suited for applications where tighter pressure control is required. Pressure gauge connection: GW 1/8" BSP.

Can the MR FC compressed air regulator, BIT series with controlled bleed reduce pressure fluctuations during small flow changes?

Yes. The MR FC compressed air regulator, BIT series with controlled bleed can reduce pressure fluctuations during small flow changes. The controlled bleed version continuously and slightly vents air to atmosphere, which increases accuracy in maintaining the set output pressure. With gauge connection GW 1/8" BSP, output ranges 0â2, 0â4 or 0â12 bar, supply up to 13 bar and operation up to +50Â°C, this design helps stabilize pressure against minor flow variations by preventing small overpressures and enabling quicker pressure recovery.

How does the MR FC compressed air regulator, BIT series controlled bleed affect response time to sudden pressure drops?

The MR FC compressed air regulator, BIT series controlled bleed improves response to sudden pressure drops by keeping the control element already slightly venting to atmosphere. Because the regulator continuously bleeds a small, controlled amount of air, the output stage does not sit fully closed or fully pressurized; it stays in a poised state that makes it faster to reduce internal pressure when a downstream demand spike or leak occurs. Practically this means: - Reduced lag: the slight continuous vent prevents pressure from building inertially behind the control valve, so the regulator can relieve excess or accommodate drops more quickly than a non-bleed (sealed) unit. - Smoother stabilization: the continuous venting enables finer, more immediate adjustments to maintain the set output pressure within the chosen range (0â2, 0â4, or 0â12 bar), improving accuracy after a transient. - Predictable behavior under supply limits: with supply up to 13 bar and operating temperatures up to +50Â°C, the controlled bleed offers consistent, repeatable response characteristics during sudden drops, provided the supply remains adequate. Limitations: because some air is constantly vented, very large sudden drops may still require time to recover depending on supply capacity and downstream demand; also bleed tuning trades off slightly higher steady air consumption for faster, more accurate response. Pressure gauge connection: GW 1/8" BSP.

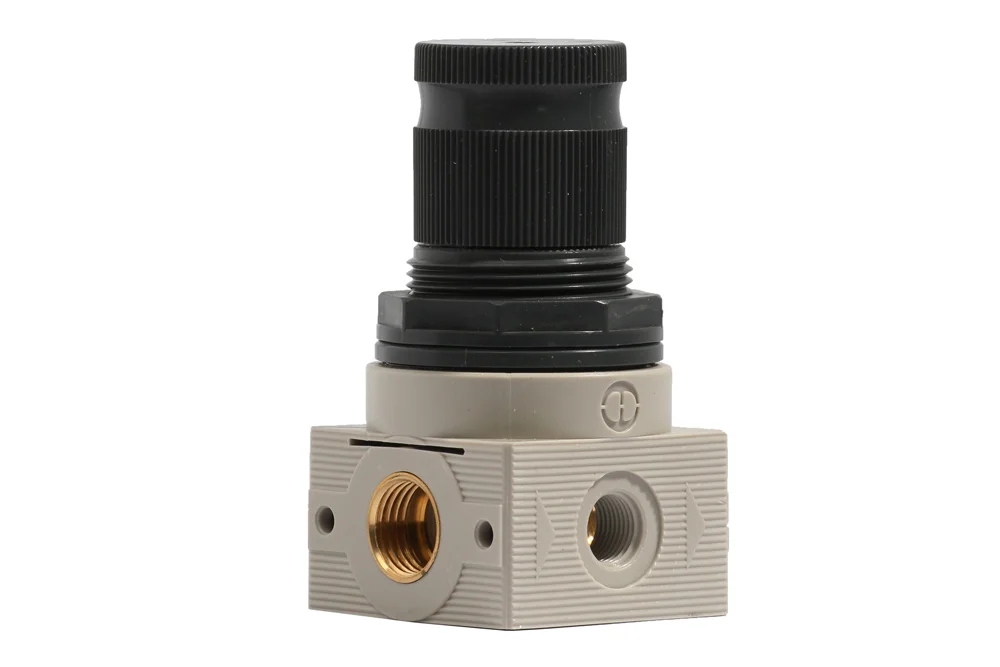

Régulateur d’air comprimé MR FC, série BIT

Informations complémentaires

Température maximale de service [°C]	50

Régulateur MR FC de série BIT. Version avec purge contrôlée, permettant une précision accrue dans le maintien de la valeur réglée de la pression de sortie grâce à une légère fuite continue d’air vers l’atmosphère. Raccord manomètre : filetage femelle BSP 1/8″. Plage de pression de sortie : 0 ÷ 2 bar, 0 ÷ 4 bar ou 0 ÷ 12 bar. Pression d’alimentation : jusqu’à 13 bar. Température de service : jusqu’à +50°C.

Liste des variantes de produit

Référence article	Nom de la variante du produit	DN	BAR	Disponibilité	Actions
MW-5111001	Réducteur de pression à décharge contrôlée MR FC BIT 1/8 02	-	-	En stock	Demande
MW-5111002	Réducteur de pression à décharge contrôlée MR FC BIT 1/8 04	-	-	En stock	Demande
MW-5211001	Soupape de réduction avec décharge contrôlée MR BIT 1/4 02	-	-	En stock	Demande
MW-5211002	Soupape de réduction avec décharge contrôlée MR BIT 1/4 04	-	-	En stock	Demande
MW-5211004	Soupape de réduction avec décharge contrôlée MR BIT 1/4 012	-	-	En stock	Demande

Vous avez besoin d'une plus grande quantité de produits ou d'un devis personnalisé ?

Appelez-nous : +33 679 352 568 ou envoyez-nous un e-mail : wirthjeanpierre@aol.fr

Envoyer une demande

Régulateur MR FC de série BIT. Version avec purge contrôlée, permettant une précision accrue dans le maintien de la valeur réglée de la pression de sortie grâce à une légère fuite continue d’air vers l’atmosphère. Raccord manomètre : filetage femelle BSP 1/8″. Plage de pression de sortie : 0 ÷ 2 bar, 0 ÷ 4 bar ou 0 ÷ 12 bar. Pression d’alimentation : jusqu’à 13 bar. Température de service : jusqu’à +50°C.
