Is the CAMLOCK C connector socket with corrugated hose end, stainless steel suitable for handling petroleum products at 10 bar pressure?

Yes . the CAMLOCK C connector socket with corrugated hose end, stainless steel is suitable for handling petroleum products at up to 10 bar, with the following considerations: - Standard and design: Made to American military standard MIL-C-27487 (A-A-59326), commonly used for petrochemical transfer, so its design is intended for such applications. - Pressure rating: Working pressure specified up to 10 bar (depending on connector size) . ensure the specific size you plan to use is rated for 10 bar. - Materials: Body in AISI 316 stainless steel offers excellent corrosion resistance to hydrocarbons and many fuels; levers in AISI 304 are typical and acceptable for external hardware. - Sealing: NBR (nitrile) seals are compatible with most petroleum products (gasoline, diesel, kerosene, light fuels). Verify compatibility if you handle aggressive additives, biofuels, or high aromatic content fuels, which can affect NBR. - Temperature and safety: Check operating temperature range for NBR and connector size at 10 bar; higher temperatures or cyclic pressure may reduce seal life. Also confirm proper hose, clamps, and system fittings are rated for 10 bar and fuel service. Conclusion: Suitable in typical petroleum transfer at 10 bar when you confirm the chosen connector size is rated for 10 bar and NBR is compatible with the specific fuel and operating temperature.

Can the CAMLOCK C connector socket with corrugated hose end, stainless steel be used with NBR seals for aggressive chemicals?

CAMLOCK C connector socket with corrugated hose end, stainless steel uses NBR (nitrile) seals. NBR is resistant to oils, fuels and many hydrocarbons, which suits typical petrochemical transfer applications, but it has poor resistance to many aggressive chemicals: strong acids, strong bases, ketones (e.g. acetone), aromatics at high concentration, chlorinated solvents, and some oxidizers. Therefore, for aggressive chemicals you should not assume NBR is suitable without checking chemical compatibility for the specific fluid, temperature and concentration. If the chemical is aggressive to NBR, choose a connector with a more resistant seal material (e.g. FKM/Viton, EPDM, PTFE) or contact the supplier with the exact media and conditions to confirm suitability.

Does the CAMLOCK C connector socket with corrugated hose end, stainless steel support food-grade NBR seals?

Yes. The CAMLOCK C connector socket with corrugated hose end, stainless steel (made to MIL-C-27487 / A-A-59326) uses NBR sealing. NBR (nitrile rubber) is food-grade only when specifically certified; the product description lists âSealing: NBR,â so the connector is fitted with NBR seals, but confirm the sealsâ food-grade certification from the manufacturer if you need formal food-contact compliance.

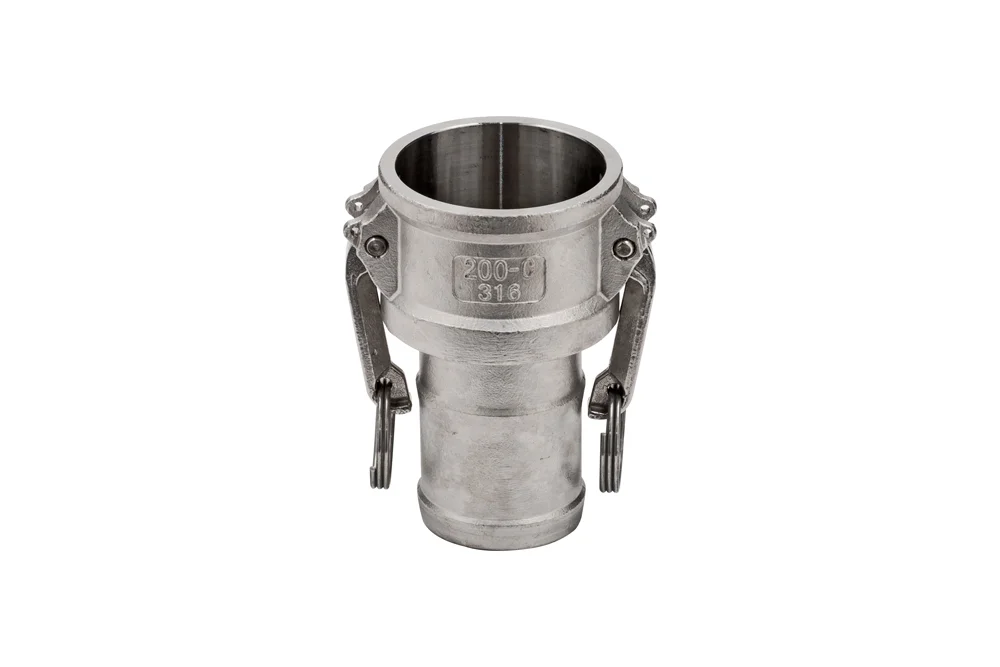

Douille de raccord CAMLOCK C avec embout cannelé pour flexible, acier inoxydable

Informations complémentaires

Matériau	SS – acier inoxydable

Douille de raccord CAMLOCK C avec embout cannelé pour flexible, fabriquée selon la norme militaire américaine MIL-C-27487 (A-A-59326), couramment utilisée comme raccord de transvasement, notamment dans l’industrie pétrochimique. Pression de service : jusqu’à 10 bar, selon la taille du raccord. Matériau : acier AISI 316. Leviers : acier AISI 304. Étanchéité : NBR.

Liste des variantes de produit

Référence article	Nom de la variante du produit	DN	BAR	Disponibilité	Actions
AC-C-050-SS	Raccord CAMLOCK C 1/2", AISI 316	12	10	En stock	Demande
AC-C-050-SSX	Raccord CAMLOCK C 1/2", AISI 316	12	10	En stock	Demande
AC-C-075-SS	Raccord CAMLOCK C 3/4", AISI 316	20	10	En stock	Demande
AC-C-075-SSX	Raccord CAMLOCK C 3/4", AISI 316	20	10	En stock	Demande
AC-C-100-SS	Raccord CAMLOCK C 1", AISI 316	25	10	En stock	Demande
AC-C-100-SSX	Raccord CAMLOCK C 1", AISI 316	25	10	En stock	Demande
AC-C-125-SS	Raccord CAMLOCK C 1.1/4", AISI 316	32	10	En stock	Demande
AC-C-125-SSX	Raccord CAMLOCK C 1.1/4", AISI 316	32	10	En stock	Demande
AC-C-150-SS	Raccord CAMLOCK C 1.1/2", AISI 316	40	10	En stock	Demande
AC-C-150-SSX	Raccord CAMLOCK C 1 1/2", AISI 316	40	10	En stock	Demande
AC-C-200-SS	Raccord CAMLOCK C 2", AISI 316	50	10	En stock	Demande
AC-C-200-SSX	Raccord CAMLOCK C 2", AISI 316	50	10	En stock	Demande
AC-C-250-SS	Raccord CAMLOCK C 2 1/2", AISI 316	65	10	En stock	Demande
AC-C-250-SSX	Raccord CAMLOCK C 2.1/2", AISI 316	65	10	En stock	Demande
AC-C-300-SS	Raccord CAMLOCK C 3", AISI 316	75	10	En stock	Demande
AC-C-300-SSX	Raccord CAMLOCK C 3", AISI 316	75	10	En stock	Demande
AC-C-400-SS	Raccord CAMLOCK C 4", AISI 316	100	10	En stock	Demande
AC-C-400-SSX	Raccord CAMLOCK C 4", AISI 316	100	10	En stock	Demande
AC-C-500-SS	Raccord CAMLOCK C 5", AISI 316	125	9	En stock	Demande
AC-C-500-SSX	Raccord CAMLOCK C 5", AISI 316	125	9	En stock	Demande
AC-C-600-SS	Raccord CAMLOCK C 6", AISI 316	150	9	En stock	Demande
AC-C-600-SSX	Raccord CAMLOCK C 6", AISI 316	150	9	En stock	Demande

Vous avez besoin d'une plus grande quantité de produits ou d'un devis personnalisé ?

Appelez-nous : +33 679 352 568 ou envoyez-nous un e-mail : wirthjeanpierre@aol.fr

Envoyer une demande

Douille de raccord CAMLOCK C avec embout cannelé pour flexible, fabriquée selon la norme militaire américaine MIL-C-27487 (A-A-59326), couramment utilisée comme raccord de transvasement, notamment dans l’industrie pétrochimique. Pression de service : jusqu’à 10 bar, selon la taille du raccord. Matériau : acier AISI 316. Leviers : acier AISI 304. Étanchéité : NBR.
