Is the NG10 blanking plate, steel suitable for long-term use at 315 bar and temperatures between -20Â°C and +80Â°C with NBR seals?

Yes. The NG10 blanking plate, steel is specified for a maximum working pressure of 315 bar and uses NBR seals rated for a medium temperature range of -20Â°C to +80Â°C, so it is suitable for long-term use within those limits. Note two operational considerations: the plateâs environmental temperature rating is limited to -20Â°C to +50Â°C, and NBR has reduced resistance to some chemicals and to temperatures sustained near the upper limit, which can affect seal life. If the application involves elevated ambient temperatures above +50Â°C, aggressive fluids, continuous thermal cycling, or long-duration exposure at +80Â°C, consider verifying compatibility with the fluid and duty cycle or selecting a higher-temperature seal material (e.g., FKM) to ensure longer-term reliability.

Can NG10 blanking plate, steel be used with NBR seals in environments up to +50Â°C and medium up to +80Â°C at 315 bar?

Yes. The NG10 blanking plate, steel with NBR seals is specified for maximum working pressure up to 315 bar, medium temperature range â20Â°C to +80Â°C, and environmental temperature range â20Â°C to +50Â°C. Therefore it can be used with NBR seals in environments up to +50Â°C and with medium up to +80Â°C at 315 bar, provided installation and system conditions match the product specifications.

Can NG10 blanking plate, steel with NBR seals withstand 315 bar in alternating A/B/P/T channel service?

Yes. The NG10 blanking plate, steel with NBR seals is rated for a maximum working pressure of 315 bar and is specified for sealing channels A, B, P, and T of the NG10 plate connection. Within its stated operating temperature ranges (medium: -20Â°C to +80Â°C; environment: -20Â°C to +50Â°C) the construction and NBR sealing are intended to withstand alternating A/B/P/T channel service up to that pressure. Caveats: ensure actual application temperatures, fluid compatibility with NBR, dynamic pressure spikes, and cycling frequency do not exceed the specified limits. If your system may see temperatures, aggressive fluids, or pressure transients beyond the stated ratings, select a different seal material or a higher-rated component and consult the manufacturer.

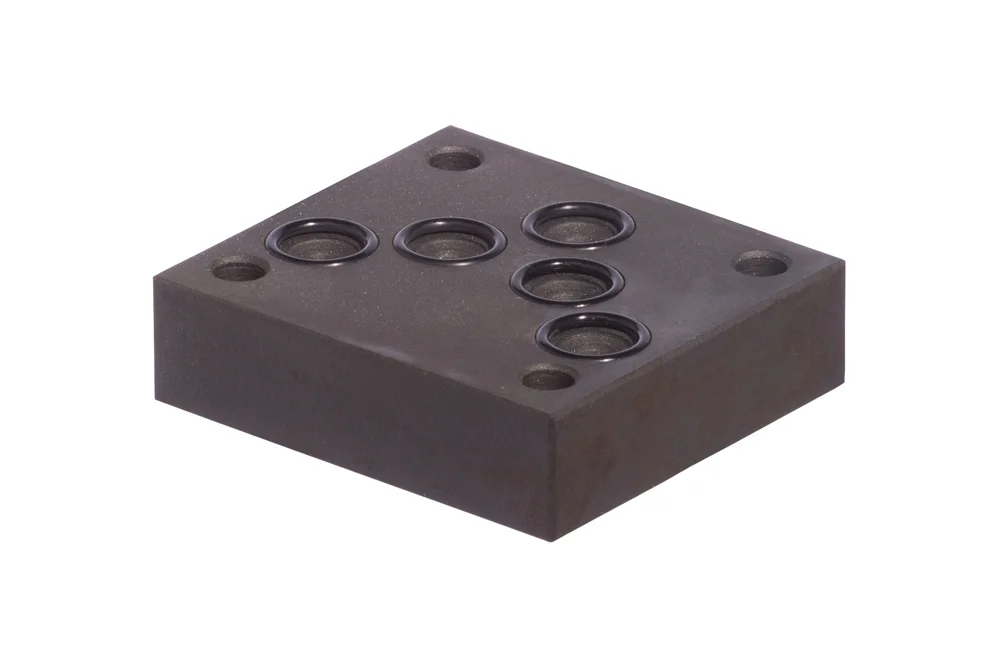

Plaque obturatrice NG10, acier

Tous les produits, Vannes et adaptateurs à plaque/

Informations complémentaires

Matériau	CS – acier (fonte)

Plaque obturatrice destinée à obturer les canaux A, B, P et T de l’embase NG10. Matériau : acier. Étanchéité : NBR. Pression de service maximale : 315 bar. Température de service : de -20°C à +80°C (fluide), de -20°C à +50°C (ambiante).

Liste des variantes de produit

Référence article	Nom de la variante du produit	DN	BAR	Disponibilité	Prix	Quantité	Actions	Catalogue
TL-PNG10-Z	Plaque d’obturation NG10	-	315	En stock	0 zł		Demande

Vous avez besoin d'une plus grande quantité de produits ou d'un devis personnalisé ?

Appelez-nous : +33 679 352 568 ou envoyez-nous un e-mail : wirthjeanpierre@aol.fr

Envoyer une demande

Plaque obturatrice destinée à obturer les canaux A, B, P et T de l’embase NG10. Matériau : acier. Étanchéité : NBR. Pression de service maximale : 315 bar. Température de service : de -20°C à +80°C (fluide), de -20°C à +50°C (ambiante).
