Is the Water gun with trigger guard bail, stainless steel, AKBO HEAVY DUTY, ATEX, black suitable for Zone 0, 1, 2, 20, 21, and 22 hazardous areas?

No. Water gun with trigger guard bail, stainless steel, AKBO HEAVY DUTY, ATEX, black is intended for use in the first and second explosion hazard zones (ATEX) and has TÃ¼V certification, construction from AISI 316 stainless steel, EPDM covers and Viton seals, adjustable nozzle, trigger lock, 1/2" BSP, working pressure 24 bar, max temp +60Â°C and rated flow. That specification supports Zones 1 and 2 (gaseous) and Zones 21 and 22 (dust) only where the equipment is certified for those zones. It is not specified or certified for Zone 0 (continuous presence of explosive atmosphere) and therefore must not be used in Zone 0.

Can the Water gun with trigger guard bail, stainless steel, AKBO HEAVY DUTY, ATEX, black be used with potable water systems?

Water gun with trigger guard bail, stainless steel, AKBO HEAVY DUTY, ATEX, black: Yes - materials and seals specified (AISI 316 stainless steel, EPDM rubber covers, Viton seals) are commonly compatible with potable water. TÃ¼V certification and ATEX rating indicate industrial safety standards; working pressure (up to 24 bar), temperature limit (+60Â°C) and flow rates (30â70 l/min) are suitable for many potable water applications. However, final suitability depends on local drinking-water regulations and certification requirements for potable systems; verify with your water authority or supplier that EPDM/Viton and any manufacturing/cleaning processes meet regional potable-water approvals.

Does the Water gun with trigger guard bail, stainless steel, AKBO HEAVY DUTY, ATEX, black require special maintenance for ATEX compliance?

Water gun with trigger guard bail, stainless steel, AKBO HEAVY DUTY, ATEX, black does not require any special dayâtoâday maintenance solely to preserve ATEX compliance beyond standard good practices for equipment used in explosive atmospheres. Key points to ensure ongoing ATEX conformity: - Routine inspections: check for visible damage, corrosion (despite AISI 316 stainless steel), wear of EPDM covers and Viton seals, and proper operation of the trigger lock and adjustable nozzle. Inspect connections (1/2" BSP) and hose fittings for tightness and leaks. - Functional tests: verify smooth flow regulation, trigger action, and that the adjustable outlet nozzle operates correctly at working pressures up to 24 bar. Confirm flow rates roughly match expected values (30 l/min at 5 bar; 70 l/min at 24 bar) as part of periodic checks. - Seals and elastomers: replace EPDM and Viton parts if hardened, cracked, swollen or degraded. Use only compatible replacement parts to maintain ATEX-rated integrity. - Cleaning: keep the unit clean and free of deposits, combustible residues or conductive contamination that could impair safe operation. Use cleaning agents compatible with AISI 316, EPDM and Viton. - Environmental limits: do not exceed the maximum operating temperature (+60Â°C) or working pressure (24 bar). Ensure use within first and second explosion hazard zone guidelines and the environments defined by the TÃ¼V certificate. - Documentation and certification: retain the TÃ¼V certificate and maintenance/inspection records. Follow any manufacturer instructions and site-specific ATEX procedures. If installed in fixed systems, coordinate with site ATEX responsible persons for periodic statutory inspections. - Repairs and modifications: do not modify or perform repairs other than by authorized personnel using approved parts; unauthorized changes can void ATEX compliance. Following these practices will help maintain the ATEX status of Water gun with trigger guard bail, stainless steel, AKBO HEAVY DUTY, ATEX, black.

Pistolet à eau avec arceau de sécurité, acier inoxydable, AKBO HEAVY DUTY, ATEX, noir

Informations complémentaires

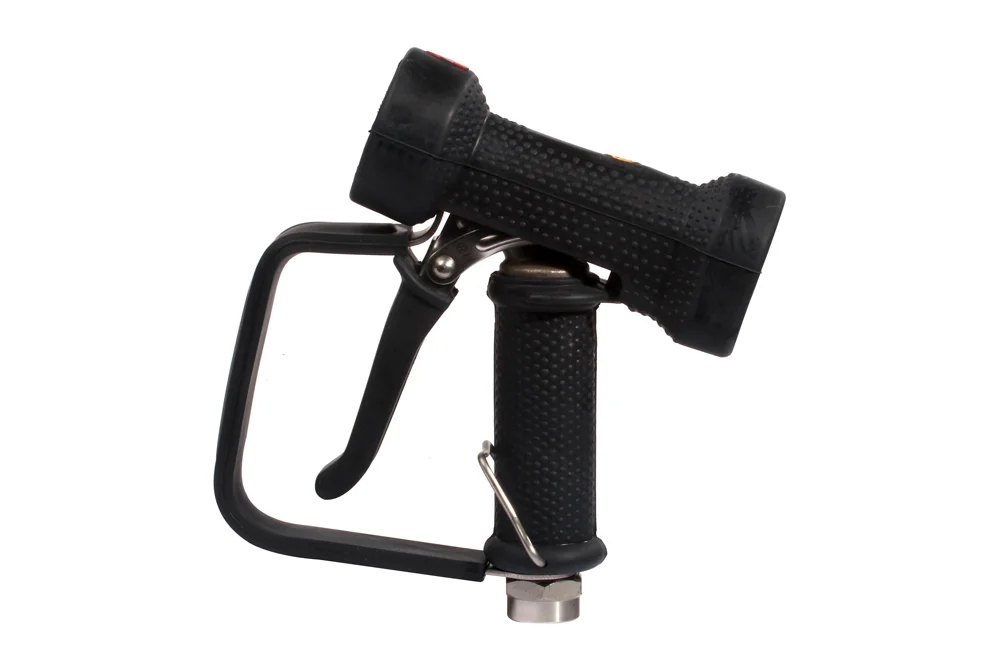

Pistolet à eau AKBO HEAVY DUTY pour zones à risque d’explosion 1 et 2 (ATEX). Certifié TüV. Fabriqué en acier inoxydable AISI 316, capots en caoutchouc EPDM et joints Viton. Équipé d’une buse de sortie réglable, d’une régulation de débit progressive et d’un verrouillage de la gâchette. Connexion : 1/2″ BSP. Pression de service : 24 bar. Température maximale de service : +60°C. Débit : 30 l/min (5 bar), 70 l/min (24 bar).

Liste des variantes de produit

Référence article	Nom de la variante du produit	DN	BAR	Disponibilité	Prix	Quantité	Actions	Catalogue
AK-RNP01-BK-EX	Pistolet à eau AKBO HEAVY DUTY ATEX, filetage femelle 1/2" BSP, avec pontet, AISI 316, noir	-	24	En stock	0 zł		Demande

Vous avez besoin d'une plus grande quantité de produits ou d'un devis personnalisé ?

Appelez-nous : +33 679 352 568 ou envoyez-nous un e-mail : wirthjeanpierre@aol.fr

Envoyer une demande

Pistolet à eau AKBO HEAVY DUTY pour zones à risque d’explosion 1 et 2 (ATEX). Certifié TüV. Fabriqué en acier inoxydable AISI 316, capots en caoutchouc EPDM et joints Viton. Équipé d’une buse de sortie réglable, d’une régulation de débit progressive et d’un verrouillage de la gâchette. Connexion : 1/2″ BSP. Pression de service : 24 bar. Température maximale de service : +60°C. Débit : 30 l/min (5 bar), 70 l/min (24 bar).
