Can a DIN 3015 standard insert, aluminum, type 101 withstand continuous operation at temperatures up to +350Â°C without degradation?

Short answer: No . a DIN 3015 standard insert, aluminum, type 101 is unlikely to withstand continuous operation at +350Â°C without degradation. Why: Aluminum alloys used for inserts typically have melting points around 600â660Â°C, but their mechanical strength, oxidation resistance and dimensional stability degrade well below melting temperature. Continuous exposure at +350Â°C will accelerate oxidation, softening, creep and potential loss of clamping force. Most common aluminum alloys lose significant yield strength and creep resistance above ~150â250Â°C; prolonged exposure near 350Â°C will cause permanent deformation and accelerated corrosion/oxidation unless the alloy and any protective treatments are specifically specified for that service. DIN 3015 items intended for high-temperature service would need explicit manufacturer confirmation of alloy composition, heat treatment, surface coating, and validated high-temperature ratings. Recommendation: Verify with the manufacturer the exact aluminum alloy and certifications for continuous 350Â°C service, or consider using a high-temperature material (stainless steel, Inconel, or specially engineered high-temp inserts) rated for continuous operation at +350Â°C.

Is DIN 3015 standard insert, aluminum, type 101 suitable for short-term exposure to temperatures up to +350Â°C?

Yes - DIN 3015 standard insert, aluminum, type 101 is suitable for short-term exposure to temperatures up to +350Â°C based on the provided description. The insert material is aluminum and the specified operating temperature reaches up to +350Â°C; for short-term (intermittent) exposure this falls within the stated limit. However, consider that aluminumâs mechanical properties and long-term oxidation behavior degrade at elevated temperatures, so repeated or prolonged exposure near +350Â°C may reduce service life and clamp performance. For critical applications, verify against manufacturer data, perform testing under actual conditions, or consider higher-temperature materials.

Does DIN 3015 standard insert, aluminum, type 101 require special surface treatment for use at +350Â°C?

DIN 3015 standard insert, aluminum, type 101. does it require special surface treatment for use at +350Â°C? Based on the provided description (two-part clamp insert DIN 3015 type 101, aluminum, profiled/grooved pipe opening, rated operating temperature up to +350Â°C), special surface treatment is generally not mandated solely by the temperature rating if the component is manufactured from an aluminum alloy specified and qualified for service at elevated temperatures up to +350Â°C. Key points: - Material suitability: The underlying requirement is that the specific aluminum alloy used for the insert must retain adequate mechanical properties and oxidation resistance at +350Â°C. Many common aluminum alloys lose strength and suffer oxidation well below that temperature; only certain high-temperature aluminum alloys or heat-treated variants are appropriate. - Surface oxidation: Aluminum forms a native oxide layer that provides some corrosion resistance, but at +350Â°C oxide growth and scale formation can accelerate. If the application is sensitive to oxide, contamination, or requires controlled friction/wear, a protective coating or conversion treatment (e.g., anodizing, high-temperature coatings) may be advisable. - Compatibility and function: The profiled/grooved surface must maintain its geometry and gripping function at temperature. If scaling, softening, or chemical attack could impair grip or cause debris, a surface treatment or choice of different alloy/finish is recommended. - Environmental and media considerations: Exposure to aggressive atmospheres (oxidizing, corrosive, steam, chemicals) at +350Â°C may necessitate protective coatings or alternative materials regardless of standard designation. - Standard requirements: DIN 3015 specifies geometry and function for pipe clamps/inserts but does not by itself prescribe a specific surface treatment for every temperature; compliance requires using materials and finishes suitable for the declared operating temperature. Conclusion: DIN 3015 standard insert, aluminum, type 101 does not automatically require a special surface treatment solely because it is rated up to +350Â°C, but in practice you must ensure the chosen aluminum alloy and any surface finish are proven for +350Â°C service. If oxidation, wear, contamination, or environmental attack at that temperature is a concern, apply an appropriate high-temperature-compatible surface treatment or choose a more suitable material.

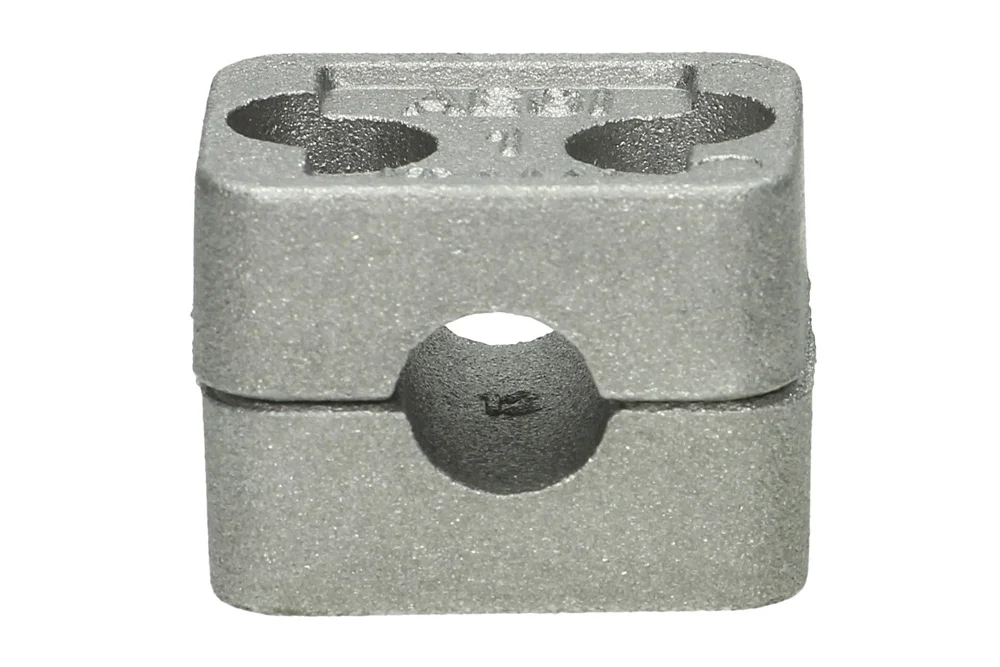

Insert standard DIN 3015, aluminium, type 101

Informations complémentaires

Matériau	AL – aluminium

Insert de collier en deux parties DIN 3015 type 101 fabriqué selon la norme DIN 3015. Présente généralement une surface profilée (rainurée) pour l’ouverture du tube. Matériau de l’insert : aluminium. Température de service : jusqu’à +350°C.

Liste des variantes de produit

Référence article	Nom de la variante du produit	DN	BAR	Disponibilité	Actions
TC-AL101-106X	Insert DIN3015 standard AL pour tube de 6 mm	-	-	En stock	Demande
TC-AL101-108X	Insert DIN3015 standard AL pour tube de 8 mm	-	-	En stock	Demande
TC-AL101-110X	Insert DIN3015 standard AL pour tube de 10 mm	-	-	En stock	Demande
TC-AL101-112X	Insert DIN3015 standard AL pour tube de 12 mm	-	-	En stock	Demande
TC-AL101-214X	Insert DIN3015 standard AL pour tube de 14 mm	-	-	En stock	Demande
TC-AL101-215X	Insert standard AL DIN3015 pour tube de 15 mm	-	-	En stock	Demande
TC-AL101-216X	Insert DIN3015 standard AL pour tube de 16 mm	-	-	En stock	Demande
TC-AL101-217,2X	Insert DIN3015 standard AL pour tube de 17,2 mm	-	-	En stock	Demande
TC-AL101-218X	Insert DIN3015 standard en aluminium pour tube de 18 mm	-	-	En stock	Demande
TC-AL101-319X	Insert DIN3015 standard en aluminium pour tube de 19 mm	-	-	En stock	Demande
TC-AL101-320X	Insert DIN3015 standard AL pour tube de 20 mm	-	-	En stock	Demande
TC-AL101-321,3X	Insert DIN3015 standard AL pour tube de 21,3 mm	-	-	En stock	Demande
TC-AL101-322X	Insert DIN3015 standard AL pour tube de 22 mm	-	-	En stock	Demande
TC-AL101-325X	Insert DIN3015 standard AL pour tube de 25 mm	-	-	En stock	Demande
TC-AL101-426,9X	Insert DIN3015 standard AL pour tube de 26,9 mm	-	-	En stock	Demande
TC-AL101-428X	Insert DIN3015 standard AL pour tube de 28 mm	-	-	En stock	Demande
TC-AL101-430X	Insert DIN3015 standard AL pour tube de 30 mm	-	-	En stock	Demande
TC-AL101-432X	Insert DIN3015 standard AL pour tube de 32 mm	-	-	En stock	Demande
TC-AL101-532X	Insert DIN 3015 standard AL pour tube de 32 mm	-	-	En stock	Demande
TC-AL101-533,7X	Insert DIN3015 standard AL pour tube de 33,7 mm	-	-	En stock	Demande
TC-AL101-535X	Insert DIN3015 standard AL pour tube de 35 mm	-	-	En stock	Demande
TC-AL101-538X	Insert DIN3015 standard AL pour tube de 38 mm	-	-	En stock	Demande
TC-AL101-540X	Insert DIN3015 standard AL pour tube de 40 mm	-	-	En stock	Demande
TC-AL101-542X	Insert DIN3015 standard en aluminium pour tube de 42 mm	-	-	En stock	Demande
TC-AL101-545X	Insert DIN3015 standard AL pour tube de 45 mm	-	-	En stock	Demande
TC-AL101-644,5X	Insert DIN3015 standard en aluminium pour tube de 44,5 mm	-	-	En stock	Demande
TC-AL101-648,3X	Insert DIN3015 standard AL pour tube de 48,3 mm	-	-	En stock	Demande
TC-AL101-650,8X	Insert DIN3015 standard AL pour tube de 50,8 mm	-	-	En stock	Demande

Vous avez besoin d'une plus grande quantité de produits ou d'un devis personnalisé ?

Appelez-nous : +33 679 352 568 ou envoyez-nous un e-mail : wirthjeanpierre@aol.fr

Envoyer une demande

Insert de collier en deux parties DIN 3015 type 101 fabriqué selon la norme DIN 3015. Présente généralement une surface profilée (rainurée) pour l’ouverture du tube. Matériau de l’insert : aluminium. Température de service : jusqu’à +350°C.
