Is the Thermoplastic hose with double braided polyester FP17100 MARINE suitable for use with seawater and marine fuels at temperatures up to +65Â°C?

Yes. The Thermoplastic hose with double braided polyester FP17100 MARINE is suitable for seawater and marine fuels at temperatures up to +65Â°C. The product description specifically states it is resistant to seawater and designed for fuels, water-based fluids, gases and air. Its operating temperature range is â40Â°C to +93Â°C overall, with a noted suitability for water and air up to +65Â°C, which covers the +65Â°C requirement for seawater service. Ensure selected hose diameter meets the required working pressure (155â207 bar depending on diameter) for your application.

Can Thermoplastic hose with double braided polyester FP17100 MARINE handle continuous operation at -40Â°C in hydraulic oil systems?

Yes. Thermoplastic hose with double braided polyester FP17100 MARINE is specified for continuous operation down to -40Â°C, so it can handle -40Â°C in hydraulic oil systems. Ensure the specific hose diameter and corresponding working pressure (155â207 bar) match your system requirements, and verify compatibility of the particular hydraulic oil and fittings at low temperature to avoid stiffness or seal issues.

Can Thermoplastic hose with double braided polyester FP17100 MARINE be used for compressed air applications at +70Â°C?

Thermoplastic hose with double braided polyester FP17100 MARINE is designed for hydraulic oil, gases, air, fuels and water-based fluids and is rated for an overall operating temperature range of -40Â°C to +93Â°C. However, the specification explicitly notes that for water and air the maximum recommended temperature is up to +65Â°C. Since your application is compressed air at +70Â°C, this exceeds the stated air service limit (+65Â°C). Using the hose for compressed air at +70Â°C would therefore be outside the manufacturerâs recommended conditions and is not advised. Operating above the specified temperature limit can reduce hose life, degrade materials (inner polyester, reinforcement, polyurethane outer), alter working pressure performance and create safety risks. Recommendation: Do not use Thermoplastic hose with double braided polyester FP17100 MARINE for compressed air at +70Â°C. Consult the manufacturer or supplier for an alternative hose rated for compressed air service at â¥+70Â°C or for an official engineering waiver.

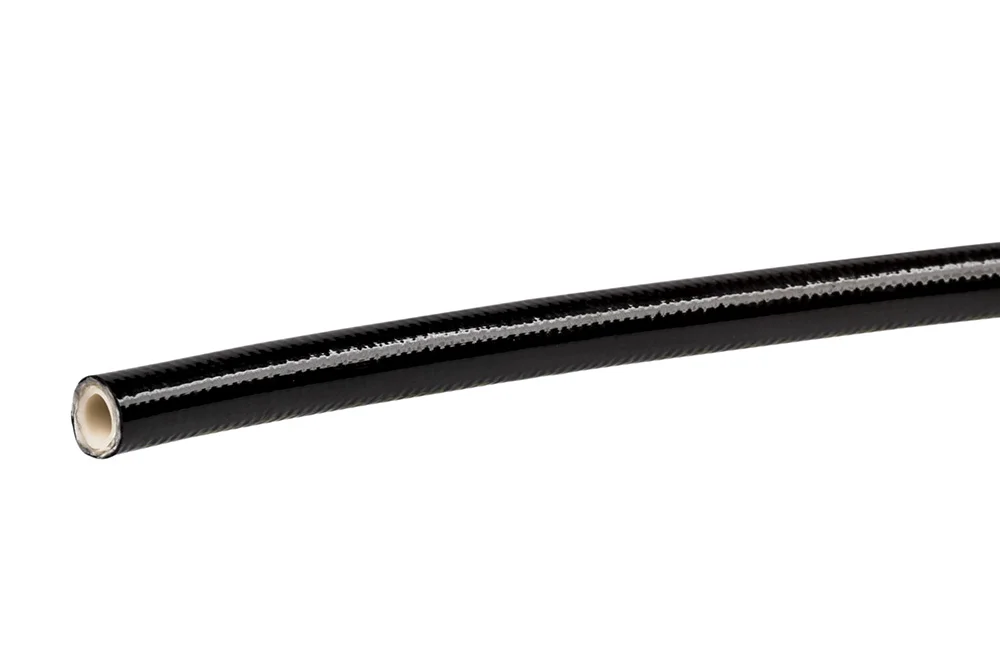

Flexible thermoplastique avec double tresse polyester FP17100 MARINE

Flexibles thermoplastiques, Tous les produits/

Informations complémentaires

Matériau	PEE – polyester
Température maximale de service [°C]	93
Température de service minimale [°C]	-40
Résistance au vide	vérifier

Flexible léger et souple destiné aux circuits hydrauliques à l’huile, aux gaz, à l’air, aux carburants et aux fluides à base d’eau. Résistant à l’eau de mer salée. Normes : SAE 100R7, ISO 3949-R7. Couche intérieure : polyester. Renforcement : double tresse polyester. Couche extérieure : polyuréthane microperforé. Pression de service : de 155 bar à 207 bar, selon le diamètre du flexible. Température de service : de -40°C à +93°C (pour l’eau et l’air jusqu’à +65°C).

Liste des variantes de produit

Référence article	Nom de la variante du produit	DN	BAR	Disponibilité	Actions
MC-FP17100B-05	Tuyau thermoplastique FP17100B MARINE 3/16"	5	207	En stock	Demande
MC-FP17100C-06	Tuyau thermoplastique FP17100C MARINE 1/4	6	190	En stock	Demande
MC-FP17100D-08	Tuyau thermoplastique FP17100D MARINE 5/16	8	173	En stock	Demande
MC-FP17100E-10	Tuyau thermoplastique FP17100E MARINE 3/8	10	155	En stock	Demande

Vous avez besoin d'une plus grande quantité de produits ou d'un devis personnalisé ?

Appelez-nous : +33 679 352 568 ou envoyez-nous un e-mail : wirthjeanpierre@aol.fr

Envoyer une demande

Flexible léger et souple destiné aux circuits hydrauliques à l’huile, aux gaz, à l’air, aux carburants et aux fluides à base d’eau. Résistant à l’eau de mer salée. Normes : SAE 100R7, ISO 3949-R7. Couche intérieure : polyester. Renforcement : double tresse polyester. Couche extérieure : polyuréthane microperforé. Pression de service : de 155 bar à 207 bar, selon le diamètre du flexible. Température de service : de -40°C à +93°C (pour l’eau et l’air jusqu’à +65°C).
