Is the AC E polyamide spiral pneumatic hose with BSPT threaded ends suitable for use at 27 bar working pressure in industrial robots and hand tools?

Yes . the AC E polyamide spiral pneumatic hose is suitable for use at 27 bar in industrial robots and hand tools, with some caveats: - The hose is specified for working pressure up to 27 bar, so if your application requires a maximum working pressure of 27 bar, the hose meets that requirement in principle. - Suitability depends on the specific diameter and wall thickness used: the data states âup to 27 bar (depending on the diameter and wall thickness),â so ensure you select the hose variant whose rated working pressure is â¥27 bar. - The hose material (PA 11/12 nylon) and operating temperature range (â40Â°C to +80Â°C) are appropriate for typical industrial robot and hand tool environments, provided there are no aggressive chemicals, oils, or abrasion beyond the materialâs resistance. - The hose has BSPT external threaded ends and a 100 mm straight section on each end, which should be compatible with equipment fittings if BSPT threads are acceptable; verify thread type and sealing method with your fittings. - Consider dynamic factors (repeated flexing, stretch cycles, vibration) and safety margins: for critical applications, choose a variant with a higher rated working pressure than the maximum operating pressure and follow manufacturer installation and service guidelines. In summary: AC E polyamide spiral pneumatic hose can be used at 27 bar for industrial robots and hand tools provided you select the correct diameter/wall-thickness variant rated for 27 bar or higher and confirm compatibility with fittings and operating conditions.

Can AC E polyamide spiral pneumatic hose with BSPT threaded ends withstand continuous use at -40Â°C to +80Â°C in robotic applications?

Yes. AC E polyamide spiral pneumatic hose, made from PA 11/12 (nylon), is specified for an operating temperature range of -40Â°C to +80Â°C and a working pressure up to 27 bar (depending on diameter/wall). For robotic applications this means it can withstand continuous use within that temperature band, provided the hose is used within its rated pressure, mechanical flexing, abrasion and chemical exposure limits, and installation respects bend radius and end fittings (100 mm straight sections with external BSPT threads). Verify compatibility with your robotâs motion cycles, peak pressures, and any contaminants; if those remain within the hoseâs specs, AC E polyamide spiral pneumatic hose is suitable.

Can AC E polyamide spiral pneumatic hose with BSPT threaded ends be used safely with pneumatic hand tools and robots?

Yes. AC E polyamide spiral pneumatic hose can be used safely with pneumatic hand tools and robots when installed and used within its specified limits. Key points: - Intended use: The hose is explicitly intended for pneumatic control systems, hand tools and industrial robots, so its design suits those applications. - Connections: It has 100 mm straight ends with external BSPT threads. ensure mating fittings are compatible and properly sealed to prevent leaks. - Pressure: Rated working pressure up to 27 bar (varies by diameter/wall thickness). Confirm the actual working pressure of your system and select the hose diameter/thickness that provides a safe margin below the hoseâs rated pressure. - Temperature: Operating range â40Â°C to +80Â°C; ensure your environment and any local heat sources stay inside that range. - Mechanical considerations: Spiral (retractile) construction reduces drag and helps retraction, but avoid excessive bending, abrasion, sharp kinks, or repeated flex beyond manufacturer guidance. Protect from cutting, crushing, and contact with chemicals incompatible with PA11/12 (nylon). - Dynamic use with robots: Check cyclic fatigue under your specific motion profile; secure routing and strain relief at connections to prevent torsion and pull-off during robotic motion. - Safety margin and maintenance: Use appropriate safety factor for pressure spikes, include shut-off/pressure-regulating devices as needed, and inspect regularly for wear, cracking, or fitting loosening. If you verify system pressure, temperature, chemical exposure, and mechanical routing are within the hoseâs specifications and use compatible BSPT fittings with proper installation, AC E polyamide spiral pneumatic hose is suitable and safe for pneumatic hand tools and robots.

Tuyau pneumatique spiralé en polyamide AC E

Flexibles pneumatiques, Tous les produits/

Informations complémentaires

Matériau	B – laiton (bronze)
Température maximale de service [°C]	80
Température de service minimale [°C]	-40
Résistance au vide	non

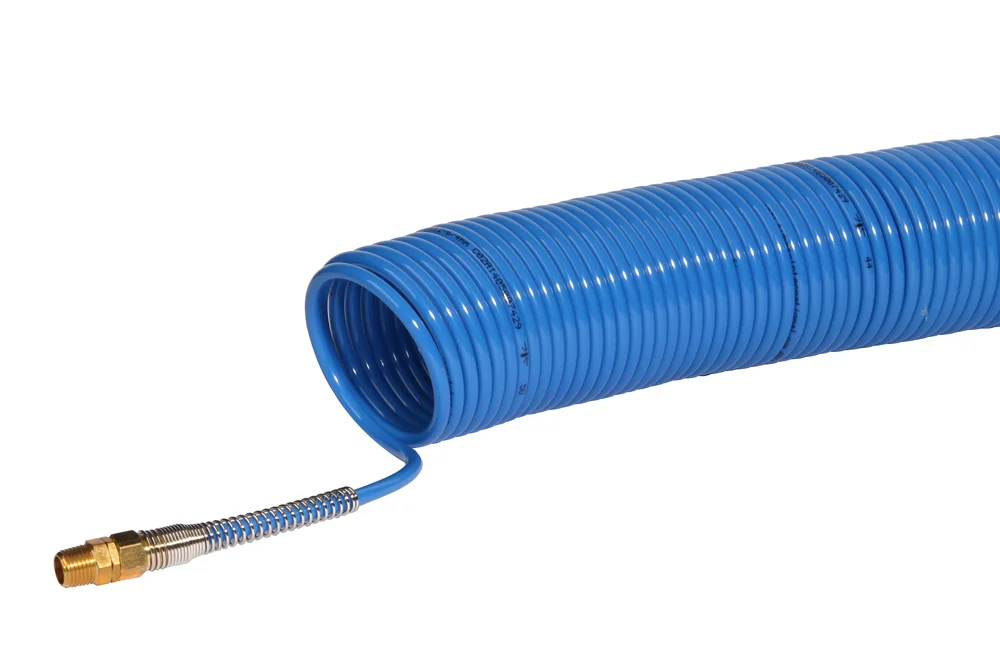

Tuyau spiralé destiné aux systèmes de commande pneumatiques, aux outils à main, aux robots industriels, etc. Terminé aux deux extrémités par une section droite de 100 mm de longueur et des embouts à filetage mâle BSPT. La longueur totale indiquée correspond à la longueur maximale du tuyau étiré. Matériau du tuyau : polyamide bleu PA 11/12 (nylon). Pression de service : jusqu’à 27 bar (selon le diamètre et l’épaisseur de paroi du tuyau). Température de service : de -40°C à +80°C.

Liste des variantes de produit

Référence article	Nom de la variante du produit	DN	BAR	Disponibilité	Actions
SH-ACE-06-020	Tuyau spiralé AC E 6x4 mm, L = 2 m avec filetage mâle 1/4"	4	27	En stock	Demande
SH-ACE-06-050	Tuyau spiralé AC E 6x4 mm, L = 5 m avec filetage mâle 1/4"	4	27	En stock	Demande
SH-ACE-06-075	Tuyau spiralé AC E 6x4 mm, L = 7,5 m avec filetage mâle 1/4"	4	27	En stock	Demande
SH-ACE-06-100	Tuyau spiralé AC E 6x4 mm, L = 10 m avec filetage mâle 1/4"	4	27	En stock	Demande
SH-ACE-08-020	Tuyau spiralé AC E 8x6 mm, L = 2 m avec filetage mâle 1/4"	6	19	En stock	Demande
SH-ACE-08-050	Tuyau spiralé AC E 8x6 mm, L = 5 m avec filetage mâle 1/4"	6	19	En stock	Demande
SH-ACE-08-075	Tuyau spiralé AC E 8x6 mm, L = 7,5 m avec filetage mâle 1/4"	6	19	En stock	Demande
SH-ACE-08-100	Tuyau spiralé AC E 8x6 mm, L = 10 m avec filetage mâle 1/4"	6	19	En stock	Demande
SH-ACE-10-020	Tuyau spiralé AC E 10x8 mm, L = 2 m avec filetage mâle 3/8"	8	15	En stock	Demande
SH-ACE-10-050	Tuyau spiralé AC E 10x8 mm, L = 5 m avec filetage mâle 3/8"	8	15	En stock	Demande
SH-ACE-10-075	Tuyau spiralé AC E 10x8 mm, L = 7,5 m avec filetage mâle 3/8"	8	15	En stock	Demande
SH-ACE-10-100	Tuyau spiralé AC E 10x8 mm, L = 10 m avec filetage mâle 3/8"	8	15	En stock	Demande
SH-ACE-12-020	Tuyau spiralé AC E 12x9 mm, L = 2 m avec filetage mâle 3/8"	8	19	En stock	Demande
SH-ACE-12-050	Tuyau spiralé AC E 12x9 mm, L = 5 m avec filetage mâle 3/8"	8	19	En stock	Demande
SH-ACE-12-075	Tuyau spiralé AC E 12x9 mm, L = 7,5 m avec filetage mâle 3/8"	8	19	En stock	Demande
SH-ACE-12-100	Tuyau spiralé AC E 12x9 mm, L = 10 m avec filetage mâle 3/8"	8	19	En stock	Demande
SH-ACE-15-020	Tuyau spiralé AC E 15x12 mm, L = 2 m avec filetage mâle 3/8"	12	15	En stock	Demande
SH-ACE-15-050	Tuyau spiralé AC E 15x12 mm, L = 5 m avec filetage mâle 3/8"	12	15	En stock	Demande
SH-ACE-15-075	Tuyau spiralé AC E 15x12 mm, L = 7,5 m avec filetage mâle 3/8"	12	15	En stock	Demande
SH-ACE-15-100	Tuyau spiralé AC E 15x12 mm, L = 10 m avec filetage mâle 3/8"	12	15	En stock	Demande
SH-ACE-16-020	Tuyau spiralé AC E 16x11 mm, L = 2 m avec filetage mâle 1/2"	10	15	En stock	Demande
SH-ACE-16-050	Tuyau spiralé AC E 16x11 mm, L = 5 m avec filetage mâle 1/2"	10	15	En stock	Demande
SH-ACE-16-075	Tuyau spiralé AC E 16x11 mm, L = 7,5 m avec filetage mâle 1/2"	10	15	En stock	Demande
SH-ACE-16-100	Tuyau spiralé AC E 16x11 mm, L = 10 m avec filetage mâle 1/2"	10	15	En stock	Demande
