Is the XFIGHT 6000 R15 MSHA hydraulic hose compatible with standard EN 856 R15 fittings and installation practices for systems up to 420 bar?

Yes. The XFIGHT 6000 R15 MSHA hydraulic hose conforms to EN 856 R15 (and SAE 100 R15 / ISO 3862-1 R15) and is rated to 420 bar working pressure, so it is compatible with standard EN 856 R15 fittings and typical R15 installation practices for systems up to 420 bar. Its construction (oil-resistant inner/outer rubber, four steel wire plies . six plies for DN32 and DN38) matches the R15 specification, and the improved flexibility (50% better bending radius) and MSHA flame-resistant outer cover do not conflict with standard fitting or installation requirements. Ensure correct hose DN/size, matching ferrule/crimp profile for R15, and follow manufacturer crimping/installation procedures and bend-radius limits despite the improved flexibility.

Does the XFIGHT 6000 R15 MSHA hydraulic hose maintain flexibility and performance after 1,000,000 impulse cycles under -40Â°C to +121Â°C?

Yes. XFIGHT 6000 R15 MSHA hydraulic hose is designed to operate from â40Â°C to +121Â°C and has been confirmed by a 1,000,000 impulse cycle test to have enhanced lifespan vs. standard hoses. Its construction - oilâresistant synthetic rubber inner and outer layers, and four (six for DN32/38) steel wire reinforcement layers - plus MSHA flameâresistant outer layer and standards compliance (EN 856 R15, SAE 100 R15, ISO 3862â1 R15) support maintained flexibility and performance across the specified temperature range.

Can the XFIGHT 6000 R15 MSHA hydraulic hose be used safely in applications requiring flame-resistant (MSHA) outer layers near open flames?

Yes. XFIGHT 6000 R15 MSHA hydraulic hose is suitable for use in applications requiring a flame-resistant (MSHA) outer layer near open flames, with important practical limits. Why itâs appropriate: - The hoseâs outer layer is explicitly specified as flame-resistant (MSHA), meaning it meets Mine Safety & Health Administration requirements for flame resistance and is designed to resist ignition and flame propagation in hazardous environments. - Construction and standards: Designed to EN 856 R15 / SAE 100 R15 / ISO 3862-1 R15 with four steel wire reinforcement (six layers for DN 32 and DN 38) and a robust oil-resistant rubber outer cover, supporting demanding hydraulic service at up to 420 bar and wide temperature range (â40Â°C to +121Â°C, temporarily +125Â°C). - Durability: Enhanced flexibility (50% better bending radius) and verified long service life (1,000,000 impulse cycles) support reliability in harsh conditions where flame resistance is required. Practical considerations and limits: - Flame-resistant does not mean fireproof; prolonged direct exposure to high-temperature flames or continuous contact with hot surfaces above the maximum continuous temperature (+121Â°C) can degrade the cover and underlying layers. Temporary exposure up to +125Â°C is allowed only short-term. - MSHA rating addresses flame behavior but does not cover all heat, radiant heat, or chemical exposure scenarios. Evaluate proximity to sustained open flames, radiant heat, sparks, molten metal, or cutting/welding operations. - Installation and maintenance matter: ensure proper routing, adequate clearance from ignition sources, protection from abrasion and sharp edges, and regular inspection for heat or fire damage. - For extremely high or continuous flame/heat exposure, or where regulatory/insurance rules demand fireproof hoses, consider specialized high-temperature or metal-armored assemblies. Conclusion: XFIGHT 6000 R15 MSHA hydraulic hose can be used safely near open flames where an MSHA-rated outer cover is required, provided exposure is within its temperature limits and installation/maintenance practices mitigate prolonged or extreme flame/heat contact.

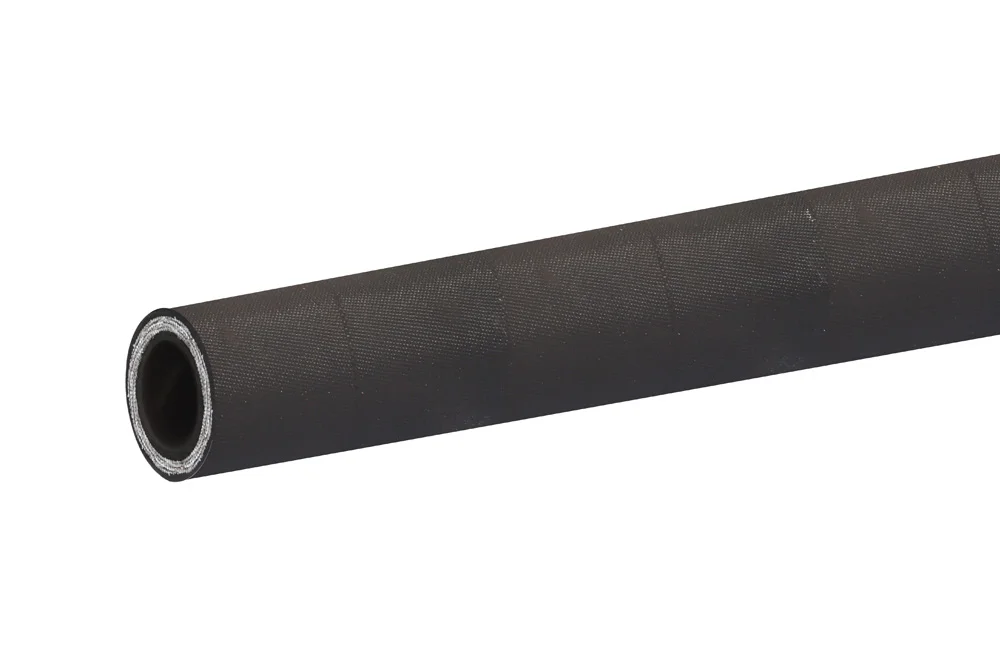

Flexible hydraulique XFIGHT 6000 R15 MSHA

Flexibles hydrauliques en caoutchouc, Tous les produits/

Informations complémentaires

Matériau	caoutchouc synthétique
Température maximale de service [°C]	120
Température de service minimale [°C]	-40

Flexible hydraulique polyvalent à flexibilité accrue (rayon de courbure 50% supérieur au standard). Durée de vie du flexible améliorée par rapport au standard, confirmée par un test de 1 000 000 cycles d’impulsions. Couche extérieure résistante à la flamme (MSHA). Normes : EN 856 R15, SAE 100 R15, ISO 3862-1 R15. Couche intérieure : caoutchouc synthétique noir résistant à l’huile. Renforcement : quatre nappes de fils d’acier (six pour DN 32 et DN 38). Couche extérieure : caoutchouc synthétique noir résistant à l’huile. Pression de service : 420 bar. Température de service : de -40°C à +121°C (temporairement +125°C).

Liste des variantes de produit

Référence article	Nom de la variante du produit	DN	BAR	Disponibilité	Actions
HW-R15-XFGT-19	Flexible hydraulique XFIGHT 6000 R15 3/4" MSHA	20	420	En stock	Demande
HW-R15-XFGT-25	Flexible hydraulique XFIGHT 6000 R15 1" MSHA	25	420	En stock	Demande
HW-R15-XFGT-32	Flexible hydraulique XFIGHT 6000 R15 1.1/4" MSHA	32	420	En stock	Demande
HW-R15-XFGT-38	Flexible hydraulique XFIGHT 6000 R15 1.1/2" MSHA	38	420	En stock	Demande

Vous avez besoin d'une plus grande quantité de produits ou d'un devis personnalisé ?

Appelez-nous : +33 679 352 568 ou envoyez-nous un e-mail : wirthjeanpierre@aol.fr

Envoyer une demande

Flexible hydraulique polyvalent à flexibilité accrue (rayon de courbure 50% supérieur au standard). Durée de vie du flexible améliorée par rapport au standard, confirmée par un test de 1 000 000 cycles d’impulsions. Couche extérieure résistante à la flamme (MSHA). Normes : EN 856 R15, SAE 100 R15, ISO 3862-1 R15. Couche intérieure : caoutchouc synthétique noir résistant à l’huile. Renforcement : quatre nappes de fils d’acier (six pour DN 32 et DN 38). Couche extérieure : caoutchouc synthétique noir résistant à l’huile. Pression de service : 420 bar. Température de service : de -40°C à +121°C (temporairement +125°C).
