Can Metric tube end BES 45Â°, type ZMR312, heavy series, carbon steel be crimped with standard hydraulic hose crimping sleeves?

Yes . Metric tube end BES 45Â°, type ZMR312, heavy series, carbon steel can be crimped with standard hydraulic hose crimping sleeves, provided the sleeve is appropriate for the specific hose construction and size. The fitting is described as a standard hydraulic end (type Z) with a regular hydraulic tail for hose, designed for sealing with a cutting ring (BES) and intended for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the hose type. Ensure you match sleeve diameter, material, and crimp profile to the hose manufacturerâs specifications and use correct crimping equipment and parameters to achieve a proper, leak-free assembly.

Can Metric tube end BES 45Â°, type ZMR312, heavy series, carbon steel be used with hoses requiring a cutting-ring (BES) seal during crimping?

Yes. Metric tube end BES 45Â°, type ZMR312, heavy series, carbon steel can be used with hoses requiring a cuttingâring (BES) seal during crimping, provided a compatible crimping sleeve for that hose type is used. The fitting is designed as a standard hydraulic end (type Z) with a metric tube and BES cuttingâring sealing, 45Â° angle, heavy series, and is intended for crimping onto hydraulic and industrial hoses using the correct sleeve and crimping specifications. Ensure material, sleeve dimensions, and crimping parameters match the hose manufacturerâs recommendations.

Is Metric tube end BES 45Â°, type ZMR312, heavy series, carbon steel suitable for high-pressure hydraulic crimping?

Metric tube end BES 45Â°, type ZMR312, heavy series, carbon steel. based on the provided description. is intended for use with hydraulic and industrial hoses and is designed to be crimped using a compatible crimping sleeve. Key points relevant to high-pressure hydraulic crimping: - Design: It is a metric tube end with a 45Â° angle and a regular hydraulic âtailâ (type Z) that uses a cutting ring (BES) for sealing. Cutting-ring fittings are commonly used in hydraulic systems and can provide reliable, pressure-resistant seals when installed correctly. - Series: Labeled âheavy series,â which implies a robust construction intended for demanding applications and higher mechanical loads. - Material and finish: Carbon steel, galvanized. suitable for strength and corrosion resistance in many hydraulic environments; carbon steel fittings are typical in high-pressure hydraulic systems. - Installation requirement: The description specifies crimping with a sleeve appropriate to the hose type. High-pressure performance depends critically on using the correct sleeve profile, correct crimp dimension/profile, and a certified crimping tool/operator to achieve the required swage integrity. - Limitations: The description does not state a specific maximum working pressure, burst pressure, pressure ratings, or applicable standards (e.g., ISO, SAE). Without explicit pressure ratings and compatibility with the specific hose and crimping specification, you cannot assume suitability for a given high-pressure application. Conclusion: Metric tube end BES 45Â°, type ZMR312, heavy series, carbon steel is designed for crimping in hydraulic hoses and, as a heavy series cutting-ring fitting, can be suitable for high-pressure hydraulic crimping. provided you use the correct crimping sleeve, tool, and follow manufacturer pressure ratings and applicable standards. Confirm the exact pressure ratings and compatibility with your hose and crimping equipment before use.

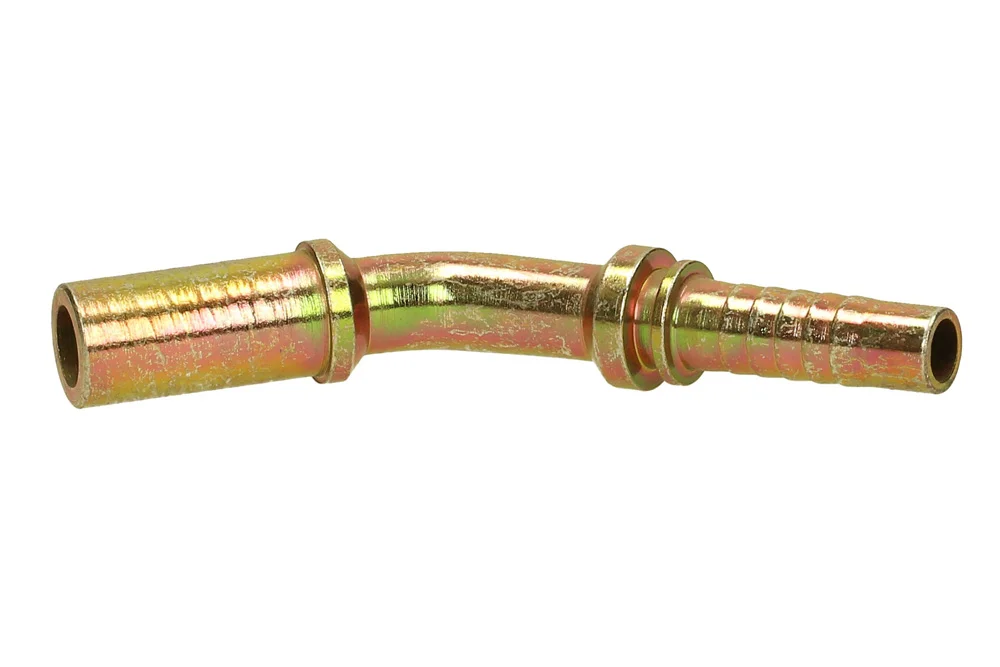

Embout à tube métrique BES 45°, type ZMR312, série lourde, acier au carbone

Informations complémentaires

Matériau	CS – acier (fonte)

Embout hydraulique standard (type Z – avec une « queue » hydraulique classique pour flexible), avec tube métrique, étanchéité par bague coupante (BES), coudé à 45°, série lourde. Conçu pour le sertissage sur flexibles hydrauliques et industriels à l’aide d’une bague de sertissage adaptée au type de flexible. Matière : acier au carbone, galvanisé.

Liste des variantes de produit

Référence article	Nom de la variante du produit	DN	BAR	Disponibilité	Actions	Catalogue
TI-ZMR312-08-04	Raccord coudé 45° tubulaire 8 mm, tuyau 1/4", renforcé	6	-	En stock	Demande
TI-ZMR312-10-04	Raccord coudé 45° tubulaire 10 mm, tuyau 1/4", renforcé	6	-	En stock	Demande
TI-ZMR312-12-04	Raccord coudé 45° tubulaire 12 mm, tuyau 1/4", renforcé	6	-	En stock	Demande
TI-ZMR312-12-05	Raccord coudé 45° tubulaire 12 mm, tuyau 5/16", renforcé	8	-	En stock	Demande
TI-ZMR312-14-06	Raccord coudé 45° tubulaire 14 mm, tuyau 3/8", renforcé	10	-	En stock	Demande
TI-ZMR312-14-08	End 45° tubular 14 mm, hose 1/2", heavy	12	-	En stock	Demande	-
TI-ZMR312-16-08	Raccord coudé 45° tubulaire 16 mm, tuyau 1/2", renforcé	12	-	En stock	Demande
TI-ZMR312-20-08	Raccord coudé 45° tubulaire 20 mm, tuyau 1/2", renforcé	12	-	En stock	Demande
TI-ZMR312-20-10	Raccord coudé 45° tubulaire 20 mm, tuyau 5/8", renforcé	16	-	En stock	Demande
TI-ZMR312-20-12	End 45° tubular 20 mm, hose 3/4", heavy	20	-	En stock	Demande	-
TI-ZMR312-25-12	Raccord coudé 45° tubulaire 25 mm, tuyau 3/4", renforcé	20	-	En stock	Demande
TI-ZMR312-25-16	Raccord coudé 45° tubulaire 25 mm, tuyau 1", renforcé	25	-	En stock	Demande
TI-ZMR312-30-16	Raccord coudé 45° tubulaire 30 mm, tuyau 1", renforcé	25	-	En stock	Demande
TI-ZMR312-38-20	Embout tubulaire 45° 38 mm, tuyau 1 1/4", lourd	32	-	En stock	Demande
TI-ZMR312-38-24	End 45° tubular 38 mm, hose 1.1/2", heavy	38	-	En stock	Demande	-

Vous avez besoin d'une plus grande quantité de produits ou d'un devis personnalisé ?

Appelez-nous : +33 679 352 568 ou envoyez-nous un e-mail : wirthjeanpierre@aol.fr

Envoyer une demande

Embout hydraulique standard (type Z – avec une « queue » hydraulique classique pour flexible), avec tube métrique, étanchéité par bague coupante (BES), coudé à 45°, série lourde. Conçu pour le sertissage sur flexibles hydrauliques et industriels à l’aide d’une bague de sertissage adaptée au type de flexible. Matière : acier au carbone, galvanisé.
