Is the DKS 90Â° hydraulic end, type ZMW212, heavy series, carbon steel compatible with standard crimping sleeves for industrial hydraulic hoses?

Yes. The DKS 90Â° hydraulic end, type ZMW212, heavy series, carbon steel is compatible with standard crimping sleeves for industrial hydraulic hoses, provided the sleeve matches the hose type and dimensions. The product description explicitly states it is designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the type of hose. Key points to ensure compatibility: - Use a crimping sleeve sized and rated for the specific hose construction (inner diameter, reinforcement layers, and outer cover). - Follow the hose manufacturerâs and sleeve supplierâs recommendations for crimp dimensions and crimping procedure. - Confirm the internal metric thread, nut, and DKS 24Â°/60Â° metal-to-metal cone sealing are appropriate for your hose assembly and operating pressures. - Verify material and galvanization are acceptable for your application environment. If those conditions are met, standard crimping sleeves for the hose type will be compatible with the DKS 90Â° hydraulic end, type ZMW212, heavy series, carbon steel.

Can the DKS 90Â° hydraulic end, type ZMW212, heavy series, carbon steel be used with metric-threaded hoses requiring metal-to-metal sealing?

Yes. The DKS 90Â° hydraulic end, type ZMW212, heavy series, carbon steel is specified with an internal metric thread and nut and metal-to-metal sealing (universal cone 24Â°/60Â° DKS), so it is suitable for use with metric-threaded hoses requiring metal-to-metal sealing. It is designed for crimping to hydraulic and industrial hoses using an appropriate crimping sleeve for the hose type. Ensure the hose, sleeve and crimping specifications (dimensions, pressure rating, and material compatibility) match the fitting manufacturerâs recommendations before assembly.

Does the DKS 90Â° hydraulic end, type ZMW212, heavy series, carbon steel require a specific crimping pressure or diameter for proper installation?

DKS 90Â° hydraulic end, type ZMW212, heavy series, carbon steel: The product description indicates it is intended to be crimped into hydraulic and industrial hoses using a crimping sleeve appropriate for the hose type. It does not specify a single universal crimping pressure or sleeve inner diameter in the provided text. Proper crimping pressure/diameter depends on the hose manufacturerâs specifications, the hose size (inner/outer diameter, reinforcement type) and the sleeve geometry recommended for that hose and fitting combination. Practical guidance: - Use the hose manufacturerâs recommended crimping dimensions and pressure for the specific hose model and the matching sleeve type. - Ensure the crimping sleeve is compatible with the heavy-series fitting and the hose construction (covers, reinforcement layers). - Follow crimping machine settings (pressure, die size, depth) specified by the hose or sleeve supplier and perform pull/pressure tests after assembly per relevant standards. - If unsure, contact the hose or fitting supplier for the exact crimping tool/die and pressure parameters for ZMW212 with your hose. Summary: No specific crimping pressure/diameter is given in the description; use the hose and sleeve manufacturerâs prescribed crimping specs and validate assemblies with tests.

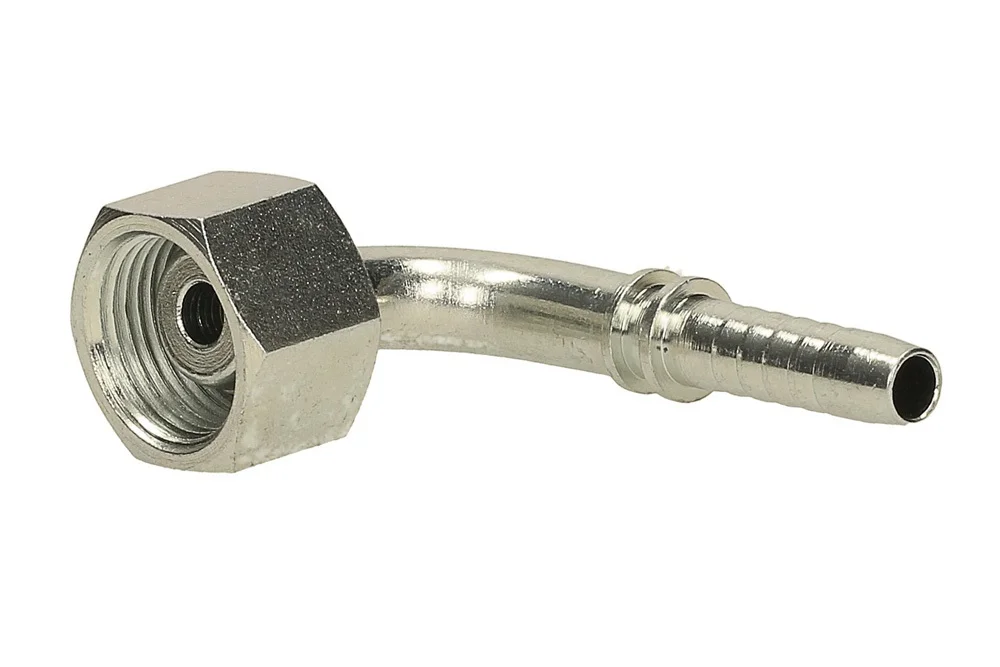

Embout hydraulique DKS 90°, type ZMW212, série lourde, acier au carbone

Informations complémentaires

Matériau	CS – acier (fonte)

Embout hydraulique standard (type Z – avec « queue » hydraulique classique pour flexible), à filetage métrique femelle avec écrou, étanchéité métal-métal, cône universel 24°/60° (DKS), coudé à 90°, série lourde. Conçu pour le sertissage sur flexibles hydrauliques et industriels à l’aide d’une bague de sertissage adaptée au type de flexible. Matière : acier au carbone, galvanisé.

Liste des variantes de produit

Référence article	Nom de la variante du produit	DN	BAR	Disponibilité	Actions
TI-ZMW212-18-04	Extrémité 90° femelle M18x1,5, tuyau 1/4", 24/60°, lourde	6	-	En stock	Demande
TI-ZMW212-20-05	Extrémité 90° femelle M20x1,5, tuyau 5/16", 24/60°, lourde	8	-	En stock	Demande
TI-ZMW212-22-06	Extrémité 90° femelle M22x1,5, tuyau 3/8", 24/60°, lourde	10	-	En stock	Demande
TI-ZMW212-24-08	Extrémité 90° femelle M24x1,5, tuyau 1/2", 24/60°, lourde	12	-	En stock	Demande
TI-ZMW212-30-10	Extrémité 90° femelle M30x2, tuyau 5/8", 24/60°, lourde	16	-	En stock	Demande
TI-ZMW212-36-12	Extrémité 90° femelle M36x2, tuyau 3/4", 24/60°, lourde	20	-	En stock	Demande
TI-ZMW212-42-16	Extrémité 90° femelle M42x2, tuyau 1", 24/60°, lourde	25	-	En stock	Demande
TI-ZMW212-52-20	Extrémité 90° femelle M52x2, tuyau 1.1/4", 24/60°, lourde	32	-	En stock	Demande

Vous avez besoin d'une plus grande quantité de produits ou d'un devis personnalisé ?

Appelez-nous : +33 679 352 568 ou envoyez-nous un e-mail : wirthjeanpierre@aol.fr

Envoyer une demande

Embout hydraulique standard (type Z – avec « queue » hydraulique classique pour flexible), à filetage métrique femelle avec écrou, étanchéité métal-métal, cône universel 24°/60° (DKS), coudé à 90°, série lourde. Conçu pour le sertissage sur flexibles hydrauliques et industriels à l’aide d’une bague de sertissage adaptée au type de flexible. Matière : acier au carbone, galvanisé.
