Is the ORFS hydraulic end, type ZOZ110, carbon steel, Y compatible with standard crimping sleeves for hose assemblies?

Yes. The ORFS hydraulic end, type ZOZ110, carbon steel, Y is designed for crimping in hydraulic and industrial hoses using a crimping sleeve appropriate for the hose type. Its construction (regular hydraulic tail, external UNF thread, face seal with Oâring) and carbon steel, galvanized material are compatible with standard crimping sleeves specified for the hose being used. Ensure you select a sleeve matched to the hose inner/outer diameter and pressure rating, and follow the hose and fitting manufacturerâs crimping specifications and tooling guidelines for proper assembly and safe operation.

Does the ORFS hydraulic end, type ZOZ110, carbon steel, Y require a specific crimping pressure or die profile for proper installation?

The ORFS hydraulic end, type ZOZ110, carbon steel, Y Format does not state a specific crimping pressure or die profile in the provided description. It is designed for crimping using a crimping sleeve suitable for the hose type, so the correct crimping pressure and die profile depend on the hose construction, sleeve specification and manufacturer recommendations. To ensure proper installation, follow the hose and sleeve makerâs published crimping parameters (crimp diameter, pressure, and die type) and use calibrated crimping equipment; if unavailable, consult the hose or fitting supplier for the exact crimp specs.

Can ORFS hydraulic end, type ZOZ110, carbon steel, Y be used with hoses requiring metric crimp sleeves?

Yes. the ORFS hydraulic end, type ZOZ110, carbon steel, Y Format can be used with hoses that require metric crimp sleeves, provided the crimping sleeve selected matches the hose type and dimensions. The product description states it is "designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the type of hose." Key requirements for compatibility: - Sleeve profile and size: Use a metric crimp sleeve whose internal profile and diameter match the hose reinforcement and the ZOZ110 tail dimensions. - Crimping machine and die: The crimping tool and dies must be specified for the chosen metric sleeve and hose assembly procedure to achieve correct crimp dimensions and swage pattern. - Seal and thread: ORFS face-seal with Oâring and the external UNF thread remain the same; ensure Oâring and thread engagement are not compromised by the crimping process. - Material and corrosion protection: ZOZ110 is carbon steel, galvanized. verify sleeve material and plating are compatible for the operating environment to avoid galvanic issues. If you confirm the hose manufacturerâs recommended metric sleeve and crimp specifications are followed and the crimping equipment is set accordingly, the ORFS hydraulic end, type ZOZ110, carbon steel, Y Format is suitable for use with metric crimp sleeves.

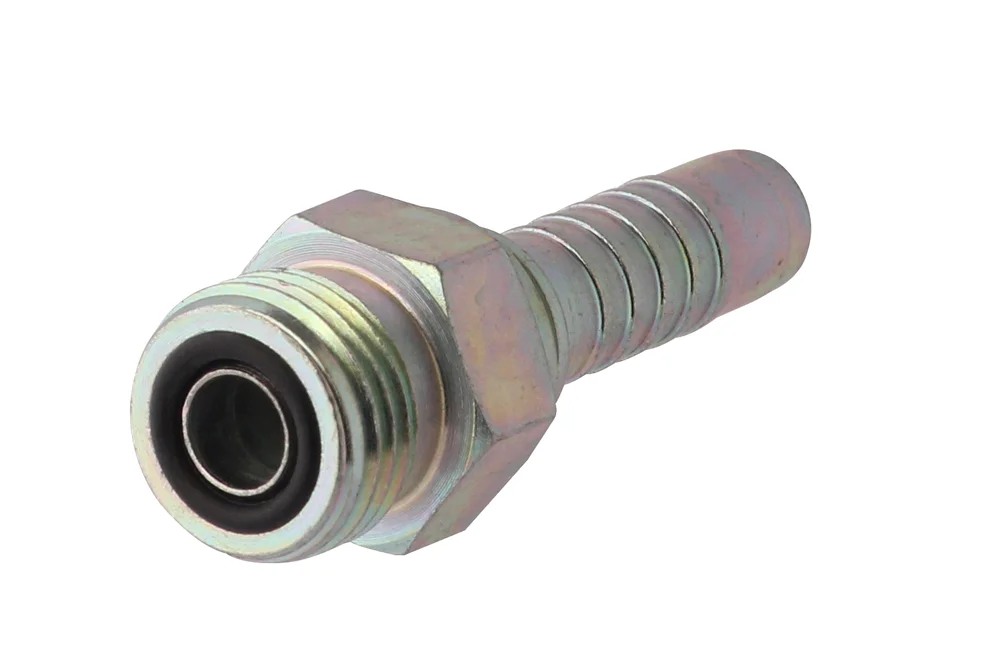

Embout hydraulique ORFS, type ZOZ110, acier au carbone, Y

Informations complémentaires

Matériau	CS – acier (fonte)

Embout hydraulique standard (type Z – avec « queue » hydraulique classique pour tuyau), avec filetage mâle UNF, étanchéité frontale avec joint torique (ORFS). Conçu pour le sertissage sur tuyaux hydrauliques et industriels à l’aide d’une douille de sertissage adaptée au type de tuyau. Matériau : acier au carbone, galvanisé.

Liste des variantes de produit

Référence article	Nom de la variante du produit	DN	BAR	Disponibilité	Actions
TI-ZOZ110-11-04-Y	Embout ORFS mâle 11/16", tuyau 1/4"	6	-	En stock	Demande
TI-ZOZ110-11-06-Y	Embout ORFS mâle 11/16", tuyau 3/8"	10	-	En stock	Demande
TI-ZOZ110-13-06-Y	Embout ORFS mâle 13/16", tuyau 3/8"	10	-	En stock	Demande
TI-ZOZ110-13-08-Y	Embout ORFS mâle 13/16", tuyau 1/2"	12	-	En stock	Demande
TI-ZOZ110-16-08-Y	Embout ORFS mâle 1", tuyau 1/2"	12	-	En stock	Demande
TI-ZOZ110-16-10-Y	Embout ORFS mâle 1", tuyau 5/8"	16	-	En stock	Demande
TI-ZOZ110-19-12-Y	Embout ORFS mâle 1.3/16", tuyau 3/4"	20	-	En stock	Demande
TI-ZOZ110-23-16-Y	Embout ORFS mâle 1.7/16", tuyau 1"	25	-	En stock	Demande

Vous avez besoin d'une plus grande quantité de produits ou d'un devis personnalisé ?

Appelez-nous : +33 679 352 568 ou envoyez-nous un e-mail : wirthjeanpierre@aol.fr

Envoyer une demande

Embout hydraulique standard (type Z – avec « queue » hydraulique classique pour tuyau), avec filetage mâle UNF, étanchéité frontale avec joint torique (ORFS). Conçu pour le sertissage sur tuyaux hydrauliques et industriels à l’aide d’une douille de sertissage adaptée au type de tuyau. Matériau : acier au carbone, galvanisé.
