Is the DKOL hydraulic end, type ZMW121, light series, AISI 316L steel compatible with standard crimping sleeves for hose crimping?

Yes. The DKOL hydraulic end, type ZMW121, light series, AISI 316L steel is designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the type of hose. That means it is compatible with standard crimping sleeves provided the sleeve matches the hose construction and size used. Ensure the sleeve dimensions and crimping spec correspond to the hose manufacturerâs recommendations and the ZMW121âs nominal hose size so proper sealing and mechanical retention are achieved.

Can DKOL hydraulic end, type ZMW121, light series, AISI 316L steel withstand corrosion in marine environments?

DKOL hydraulic end, type ZMW121, light series, AISI 316L steel offers significantly improved corrosion resistance compared with common stainless grades (e.g. 304) due to molybdenum content in 316L, making it well suited for many marine and coastal environments. However, suitability depends on exposure severity: it performs well in atmospheric marine conditions and splash zones, resists pitting and crevice corrosion better, and tolerates brief seawater contact. For continuous immersion in aggressive seawater, highly chlorinated or polluted conditions, or where galvanic coupling and mechanical wear occur, 316L may still corrode over time. For prolonged submersion or critical applications consider higher-grade alloys (e.g. duplex or super-austenitic), additional coatings, cathodic protection, or regular maintenance and inspection.

Can DKOL hydraulic end, type ZMW121, light series, AISI 316L steel be used with PTFE-lined hoses?

Yes. DKOL hydraulic end, type ZMW121, light series, AISI 316L steel can be used with PTFE-lined hoses, with important conditions. Reasons supporting compatibility: - Material compatibility: AISI 316L is chemically resistant and suitable for many media that PTFE-lined hoses carry, minimizing galvanic or chemical issues at the fitting. - Mechanical design: The fitting is a standard hydraulic end (type Z) with internal metric thread and nut, sealing on a 24Â° cone (DKOL) with an Oâring, and is designed for crimping with a sleeve appropriate to the hose type. which is the correct termination method for many PTFE-lined hose assemblies. - Crimping requirement: The product is specified for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the hose type. PTFE-lined hoses normally require a correct crimp sleeve and crimping procedure to secure the liner and hose reinforcement; using the proper sleeve for the specific PTFE-lined hose is essential. Important conditions and cautions: - Use the correct crimp sleeve profile and material specified by the PTFE-lined hose manufacturer for compression onto the hose reinforcement (not onto the PTFE liner). - Verify sleeve length and crimp dimensions to ensure full engagement of the hose reinforcement into the ferrule and proper sealing on the 24Â° cone with the Oâring. - Confirm pressure ratings and compatibility: ensure the assembled hose+ZMW121 fitting meets the application's working pressure, temperature range, and media compatibility per both hose and fitting manufacturer data. - Follow assembly instructions and crimping equipment settings recommended by the hose supplier; improper crimping can cause leaks or failure. - If aggressive chemicals, high temperatures, or regulatory requirements are present, validate with material and assembly certificates. Conclusion: Technically compatible if assembled using the correct crimp sleeve and procedure for the specific PTFE-lined hose and if pressure/temperature/media requirements are verified.

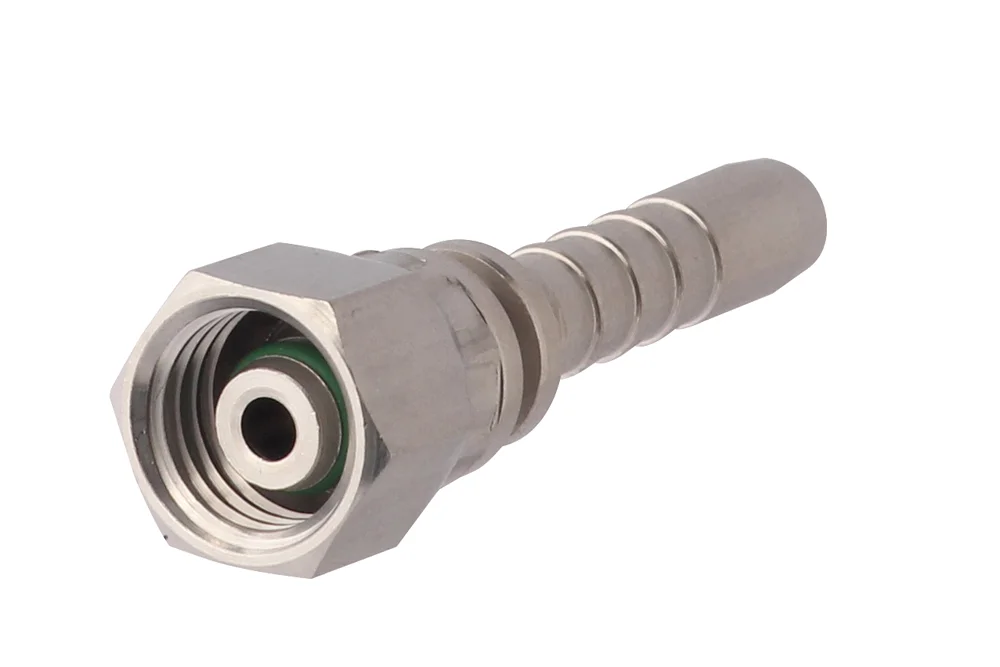

Embout hydraulique DKOL, type ZMW121, série légère, acier AISI 316L

Informations complémentaires

Matériau	SS – acier inoxydable
Longueur standard [m]	10

Embout hydraulique standard (type Z – avec « queue » hydraulique classique pour flexible), avec filetage métrique interne et écrou, étanchéité par joint torique sur cône 24° (DKOL), série légère. Conçu pour le sertissage sur flexibles hydrauliques et industriels à l’aide d’une bague de sertissage adaptée au type de flexible. Matière : acier AISI 316L.

Liste des variantes de produit

Référence article	Nom de la variante du produit	DN	BAR	Disponibilité	Actions
TI-ZMW121-12-03-SS	Embout fileté femelle M12x1,5, tuyau 3/16", 24°, joint torique, léger, AISI 316L	5	-	En stock	Demande
TI-ZMW121-12-04-SS	Embout femelle M12x1,5, tuyau 1/4", 24°, joint torique, série légère, AISI 316L	6	-	En stock	Demande
TI-ZMW121-14-04-SS	Embout fileté femelle M14x1,5, flexible 1/4", 24°, joint torique, léger, AISI 316L	6	-	En stock	Demande
TI-ZMW121-16-04-SS	Extrémité femelle M16x1,5, tuyau 1/4", 24°, joint torique, légère, AISI 316L	6	-	En stock	Demande
TI-ZMW121-16-05-SS	Extrémité. Filetage femelle M16x1,5, tuyau 5/16", 24°, joint torique, série légère, AISI 316L	8	-	En stock	Demande
TI-ZMW121-16-06-SS	Embout femelle M16x1,5, tuyau 3/8", 24°, joint torique, léger, AISI 316L	10	-	En stock	Demande
TI-ZMW121-18-04-SS	Embout femelle M18x1,5, flexible 1/4", 24°, joint torique, léger, AISI 316L	6	-	En stock	Demande
TI-ZMW121-18-05-SS	Extrémité femelle M18x1,5, tuyau 5/16", 24°, joint torique, légère, AISI 316L	8	-	En stock	Demande
TI-ZMW121-18-06-SS	Extrémité femelle M18x1,5, tuyau 3/8", 24°, joint torique, légère, AISI 316L	10	-	En stock	Demande
TI-ZMW121-22-06-SS	Extrémité femelle M22x1,5, flexible 3/8", 24°, joint torique, légère, AISI 316L	10	-	En stock	Demande
TI-ZMW121-22-08-SS	Extrémité femelle M22x1,5, tuyau 1/2", 24°, joint torique, légère, AISI 316L	12	-	En stock	Demande
TI-ZMW121-26-08-SS	Extrémité, filetage femelle M26x1,5, tuyau 1/2", 24°, joint torique, série légère, AISI 316L	12	-	En stock	Demande
TI-ZMW121-26-10-SS	Embout femelle M26x1,5, tuyau 5/8", 24°, joint torique, léger, AISI 316L	16	-	En stock	Demande
TI-ZMW121-30-12-SS	Embout femelle M30x2, flexible 3/4", 24°, joint torique, léger, AISI 316L	20	-	En stock	Demande
TI-ZMW121-36-16-SS	Extrémité femelle M36x2, tuyau 1", 24°, joint torique, légère, AISI 316L	25	-	En stock	Demande
TI-ZMW121-45-20-SS	Embout femelle M45x2, tuyau 1 1/4", 24°, joint torique, léger, AISI 316L	32	-	En stock	Demande
TI-ZMW121-52-24-SS	Embout femelle M52x2, flexible 1.1/2", 24°, joint torique, léger, AISI 316L	38	-	En stock	Demande

Vous avez besoin d'une plus grande quantité de produits ou d'un devis personnalisé ?

Appelez-nous : +33 679 352 568 ou envoyez-nous un e-mail : wirthjeanpierre@aol.fr

Envoyer une demande

Embout hydraulique standard (type Z – avec « queue » hydraulique classique pour flexible), avec filetage métrique interne et écrou, étanchéité par joint torique sur cône 24° (DKOL), série légère. Conçu pour le sertissage sur flexibles hydrauliques et industriels à l’aide d’une bague de sertissage adaptée au type de flexible. Matière : acier AISI 316L.
