Is DKJ 45Â° hydraulic end, type ZJW310, carbon steel, Y compatible with standard crimping sleeves for crimping onto hydraulic and industrial hoses?

Yes. DKJ 45Â° hydraulic end, type ZJW310, carbon steel, Y is compatible with standard crimping sleeves for crimping onto hydraulic and industrial hoses. The product description states it is designed specifically for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the hose type. Ensure you select a crimping sleeve rated for the hose construction and size you are using and follow manufacturer crimp specifications (die set, crimp diameter, and pressure ratings) to achieve a proper, leak-free crimp.

Does DKJ 45Â° hydraulic end, type ZJW310, carbon steel, Y require a specific crimping sleeve profile for UNF threaded hose assemblies?

DKJ 45Â° hydraulic end, type ZJW310, carbon steel, Y does not require a special proprietary crimping sleeve profile beyond a sleeve suitable for the specific hose type. The product is designed for crimping in hydraulic and industrial hoses using a crimping sleeve that matches the hose construction and dimensions; the internal UNF thread, nut and 74Â° cone sealing do not change sleeve geometry requirements. Use the sleeve profile recommended by the hose manufacturer (and crimper) for that hose size and series to ensure proper crimp dimensions, sealing and mechanical performance. Always follow hose supplier and crimping machine specifications.

Can DKJ 45Â° hydraulic end, type ZJW310, carbon steel, Y be crimped onto hoses with BSPP fittings after adapter use?

No. DKJ 45Â° hydraulic end, type ZJW310, carbon steel, Y Format is designed for direct crimping onto hydraulic and industrial hoses using a crimping sleeve matched to the hose type. Its sealing is achieved on an internal 74Â° cone with UNF thread and nut, and the component is intended to be crimped as supplied. If you fit a BSPP adapter between the hose and the DKJ 45Â° hydraulic end, you alter the intended sealing interface and mechanical geometry: the crimped assembly will no longer guarantee the correct cone seating, hose support, or the crimp sleeveâs designed compression profile. This can lead to improper sealing, loss of mechanical integrity, leaks, or premature failure under pressure. If you need to connect to BSPP fittings, use either: - a DKJ-style end specifically designed with BSPP-compatible thread/sealing, or - a purpose-made adapter installed between two properly terminated ends where each connection preserves its intended sealing method. Always follow manufacturer recommendations, hose and fitting specifications, and pressure ratings; if in doubt, consult the product supplier or a qualified hydraulics technician.

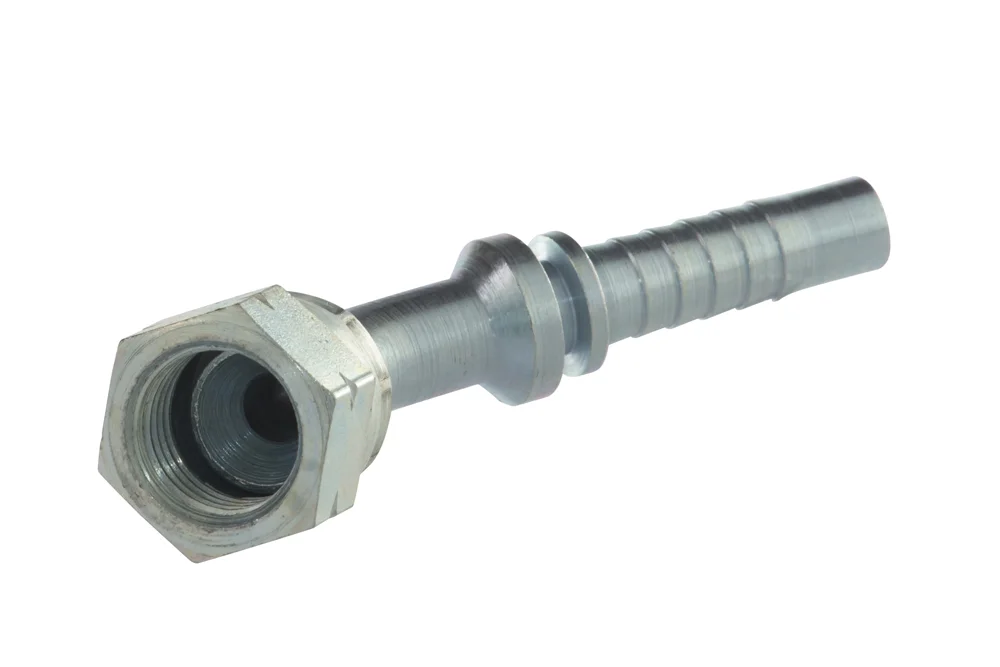

Embout hydraulique DKJ 45°, type ZJW310, acier au carbone, Y

Informations complémentaires

Matériau	CS – acier (fonte)
Longueur standard [m]	15

Embout hydraulique standard (type Z – avec « queue » hydraulique classique pour flexible), avec filetage interne UNF et écrou, étanchéité sur cône 74° (DKJ), orienté à 45°. Conçu pour le sertissage sur flexibles hydrauliques et industriels à l’aide d’une bague de sertissage adaptée au type de flexible. Matériau : acier au carbone, galvanisé.

Liste des variantes de produit

Référence article	Nom de la variante du produit	DN	BAR	Disponibilité	Actions
TI-ZJW310-08-04-Y	Embout JIC 45° femelle 1/2", tuyau 1/4", cône 74°	6	-	En stock	Demande
TI-ZJW310-09-04-Y	Raccord terminal JIC 45° F 9/16", tuyau 1/4", cône 74°	6	-	En stock	Demande
TI-ZJW310-09-05-Y	Embout JIC 45° femelle 9/16", tuyau 5/16", cône 74°	8	-	En stock	Demande
TI-ZJW310-09-06-Y	Raccord d’extrémité JIC 45° femelle 9/16", tuyau 3/8", cône 74°	10	-	En stock	Demande
TI-ZJW310-12-05-Y	Embout JIC 45° femelle 3/4", tuyau 5/16", cône 74°	8	-	En stock	Demande
TI-ZJW310-12-06-Y	Raccord final JIC 45° femelle 3/4", tuyau 3/8", cône 74°	10	-	En stock	Demande
TI-ZJW310-12-08-Y	Embout JIC 45° femelle 3/4", tuyau 1/2", cône 74°	12	-	En stock	Demande
TI-ZJW310-14-08-Y	Raccord d’extrémité JIC 45° femelle 7/8", tuyau 1/2", cône 74°	12	-	En stock	Demande
TI-ZJW310-17-10-Y	Embout JIC 45° filetage femelle 1.1/16", tuyau 5/8", cône 74°	16	-	En stock	Demande
TI-ZJW310-17-12-Y	Raccord terminal JIC 45° femelle 1.1/16", tuyau 3/4", cône 74°	20	-	En stock	Demande
TI-ZJW310-19-12-Y	Raccord JIC 45° femelle 1.3/16", tuyau 3/4", cône 74°	20	-	En stock	Demande
TI-ZJW310-26-16-Y	Raccord terminal JIC 45° femelle 1.5/8", flexible 1", cône 74°	25	-	En stock	Demande
TI-ZJW310-30-20-Y	Embout final JIC 45° femelle 1.7/8", tuyau 1.1/4", cône 74°	32	-	En stock	Demande
TI-ZJW310-30-24-Y	Embout JIC 45° femelle 1.7/8", tuyau 1.1/2", cône 74°	38	-	En stock	Demande

Vous avez besoin d'une plus grande quantité de produits ou d'un devis personnalisé ?

Appelez-nous : +33 679 352 568 ou envoyez-nous un e-mail : wirthjeanpierre@aol.fr

Envoyer une demande

Embout hydraulique standard (type Z – avec « queue » hydraulique classique pour flexible), avec filetage interne UNF et écrou, étanchéité sur cône 74° (DKJ), orienté à 45°. Conçu pour le sertissage sur flexibles hydrauliques et industriels à l’aide d’une bague de sertissage adaptée au type de flexible. Matériau : acier au carbone, galvanisé.
