Can AGJ hydraulic end, type ZJZ110 (carbon steel, galvanized) be crimped using standard crimping sleeves for hydraulic hoses and which sleeve size is recommended?

Yes . the AGJ hydraulic end, type ZJZ110, carbon steel (galvanized) can be crimped using standard crimping sleeves intended for hydraulic and industrial hoses. The product description explicitly states it is "designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the type of hose," which means you must match the sleeve to the hose construction (e.g., single wire, spiral, textile) and the hose inner diameter. Recommended sleeve size: choose the sleeve whose internal diameter corresponds to the hose nominal inside diameter plus the wall thickness, per the hose manufacturerâs crimping chart. In practice: - For common EN/ISO hydraulic hoses (e.g., 1SN/2SN, R1/R2), use the sleeve size recommended by the hose maker for the hose nominal size (e.g., 1/4", 3/8", 1/2", 3/4", 1"). - If you only have hose nominal size, use the standard sleeve size for that nominal (e.g., 1/2" hose â 1/2" sleeve as specified by hose/sleeve charts). Important: verify compatibility with the hose manufacturerâs crimping dimension sheet and the crimping machine settings (jaw profile and crimp diameter). If uncertain, provide the exact hose type and nominal size to get the precise sleeve part number and crimp dimensions.

Can AGJ hydraulic end, type ZJZ110, carbon steel be crimped on industrial hoses using standard crimping sleeves and which sleeve size fits best?

Yes. The AGJ hydraulic end, type ZJZ110, carbon steel (standard Z with external UNF thread and 74Â° cone sealing) is designed for crimping on hydraulic and industrial hoses. Use a crimping sleeve matched to the hose construction and diameter specified by the hose manufacturer; standard crimp sleeves for industrial/hydraulic hoses of the same nominal hose size are appropriate. For best fit, select the sleeve sized to the hose nominal ID/OD per the hose makerâs crimp specification-typically the sleeve size corresponding to the hose nominal series (e.g., for a 1/2" hose use the 1/2" sleeve). Always verify sleeve dimensions and crimp specs against the hose manufacturer and perform pressure testing after crimping.

Can AGJ hydraulic end, type ZJZ110, carbon steel be used with hoses requiring a 74Â° cone seal and which thread adapters fit?

Yes. AGJ hydraulic end, type ZJZ110, carbon steel can be used with hoses that require a 74Â° cone seal. The product description states it is a Standard hydraulic end (type Z) with an external UNF thread and seals on a 74Â° cone (AGJ), specifically designed for crimping into hydraulic and industrial hoses using a matching crimping sleeve. Its carbon steel, galvanized construction is suitable for typical hydraulic service. Which thread adapters fit: - Any adapter or counterpart with the matching UNF external thread size and internal female UNF thread designed to mate with a 74Â° cone (JIC/AGJ-style) seal can be used. - Confirm the exact UNF thread nominal size and pitch of the ZJZ110 (e.g., 7/16-20 UNF, 9/16-18 UNF, 3/4-16 UNF, etc.) from the manufacturerâs dimension table. Use an adapter or port with the identical UNF thread specification and a 74Â° cone seat. - Use standard JIC/74Â° cone adapters, couplings, or fittings specified for the identified UNF size. If adapting to a different thread type (BSPP, BSPT, metric), use a suitable thread adapter that provides a female UNF port with a 74Â° cone seat. Important checks before assembly: - Verify the exact UNF thread size/pitch of ZJZ110 from technical data. - Ensure the mating fitting has a proper 74Â° cone seat and is rated for required pressure. - Use the correct crimping sleeve for the hose type and follow crimp specs. - Inspect galvanizing and compatibility with hydraulic fluid and environment. In short: compatible with hoses needing a 74Â° cone seal when paired with fittings/adapters matching the ZJZ110âs UNF thread size and a 74Â° cone seat (standard JIC/AGJ adapters).

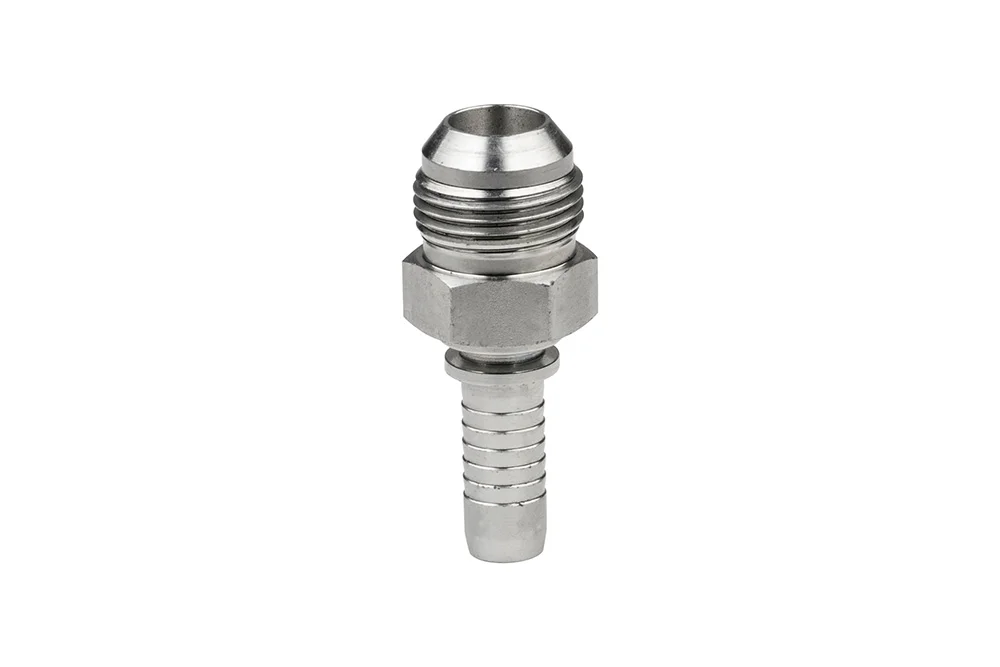

Embout hydraulique AGJ, type ZJZ110, acier carbone

Informations complémentaires

Matériau	CS – acier (fonte)
Longueur standard [m]	50

Embout hydraulique standard (type Z – avec « queue » hydraulique classique pour flexible), avec filetage UNF externe, étanchéité sur cône 74° (AGJ). Conçu pour le sertissage sur flexibles hydrauliques et industriels à l’aide d’une bague de sertissage adaptée au type de flexible. Matière : acier carbone, galvanisé.

Liste des variantes de produit

Référence article	Nom de la variante du produit	DN	BAR	Disponibilité	Actions
TI-ZJZ110-07-03	Embout JIC GZ 7/16", tuyau 3/16", cône 74°	5	-	En stock	Demande
TI-ZJZ110-07-04	Embout JIC mâle 7/16", flexible 1/4", cône 74°	6	-	En stock	Demande
TI-ZJZ110-08-04	Embout JIC mâle 1/2", tuyau 1/4", cône 74°	6	-	En stock	Demande
TI-ZJZ110-08-05	Extrémité JIC M 1/2", tuyau 5/16", cône 74°	8	-	En stock	Demande
TI-ZJZ110-09-04	Embout JIC mâle 9/16", tuyau 1/4", cône 74°	6	-	En stock	Demande
TI-ZJZ110-09-05	Embout JIC mâle 9/16", tuyau 5/16", cône 74°	8	-	En stock	Demande
TI-ZJZ110-09-06	Embout JIC mâle 9/16", tuyau 3/8", cône 74°	10	-	En stock	Demande
TI-ZJZ110-10-05	Embout JIC mâle 5/8", tuyau 5/16", cône 74°	8	-	En stock	Demande
TI-ZJZ110-10-06	Embout JIC mâle 5/8", flexible 3/8", cône 74°	10	-	En stock	Demande
TI-ZJZ110-12-04	Embout JIC mâle 3/4", flexible 1/4", cône 74°	6	-	En stock	Demande
TI-ZJZ110-12-05	Raccord terminal JIC mâle 3/4", tuyau 5/16", cône 74°	8	-	En stock	Demande
TI-ZJZ110-12-06	Embout JIC mâle 3/4", tuyau 3/8", cône 74°	10	-	En stock	Demande
TI-ZJZ110-12-08	Embout JIC mâle 3/4", tuyau 1/2", cône 74°	12	-	En stock	Demande
TI-ZJZ110-12-10	Embout JIC G mâle 3/4", tuyau 5/8", cône 74°	16	-	En stock	Demande
TI-ZJZ110-14-06	Embout JIC mâle 7/8", tuyau 3/8", cône 74°	10	-	En stock	Demande
TI-ZJZ110-14-08	Embout JIC mâle 7/8", flexible 1/2", cône 74°	12	-	En stock	Demande
TI-ZJZ110-14-10	Embout JIC mâle 7/8", tuyau 5/8", cône 74°	16	-	En stock	Demande
TI-ZJZ110-17-08	Raccord terminal JIC mâle 1,1/16", tuyau 1/2", cône 74°	12	-	En stock	Demande
TI-ZJZ110-17-10	Embout JIC mâle 1.1/16", tuyau 5/8", cône 74°	16	-	En stock	Demande
TI-ZJZ110-17-12	Embout JIC mâle 1.1/16", tuyau 3/4", cône 74°	20	-	En stock	Demande
TI-ZJZ110-19-12	Embout JIC mâle 1 3/16”, tuyau 3/4”, cône 74°	20	-	En stock	Demande
TI-ZJZ110-19-16	Embout JIC mâle 1.3/16", tuyau 1", cône 74°	25	-	En stock	Demande
TI-ZJZ110-21-12	Embout JIC mâle 1 5/16", tuyau 3/4", cône 74°	20	-	En stock	Demande
TI-ZJZ110-21-16	Extrémité JIC mâle 1 5/16", tuyau 1", cône 74°	25	-	En stock	Demande
TI-ZJZ110-26-16	Embout JIC mâle 1,5/8", tuyau 1", cône 74°	25	-	En stock	Demande
TI-ZJZ110-26-20	Raccord terminal JIC GZ 1.5/8", flexible 1.1/4", cône 74°	32	-	En stock	Demande
TI-ZJZ110-30-20	Embout JIC mâle 1.7/8", tuyau 1.1/4", cône 74°	32	-	En stock	Demande
TI-ZJZ110-30-24	Embout JIC filetage mâle 1.7/8", tuyau 1.1/2", cône 74°	38	-	En stock	Demande
TI-ZJZ110-40-32	Extrémité JIC GZ 2.1/2", tuyau 2", cône 74°	50	-	En stock	Demande

Vous avez besoin d'une plus grande quantité de produits ou d'un devis personnalisé ?

Appelez-nous : +33 679 352 568 ou envoyez-nous un e-mail : wirthjeanpierre@aol.fr

Envoyer une demande

Embout hydraulique standard (type Z – avec « queue » hydraulique classique pour flexible), avec filetage UNF externe, étanchéité sur cône 74° (AGJ). Conçu pour le sertissage sur flexibles hydrauliques et industriels à l’aide d’une bague de sertissage adaptée au type de flexible. Matière : acier carbone, galvanisé.
