Can the PUSH-ON self-clamping end with GW BSP, type YBW110, be reused after removal from the hose?

No. The PUSH-ON self-clamping end with GW BSP, type YBW110, is designed for one-time assembly with a specific PUSH-ON hose: its special groove profile and self-clamping action create a tailored mechanical grip with the hose material and braid. After removal, the grooves and hose seating will be deformed and the secure clamping fit cannot be reliably restored. Reuse, use with other hoses, or additional clamping with bands/clamps is not recommended and may damage the hose or cause leakage or failure. For safe operation, replace the end and/or hose with correctly matched, new components.

Is the PUSH-ON self-clamping end with GW BSP, type YBW110 compatible with other hose types or aftermarket clamps?

No. The PUSH-ON self-clamping end with GW BSP, type YBW110 is specifically designed for PUSH-ON self-clamping hose and features a special groove profile matched to that hoseâs material, dimensions and braid. It is mounted without clamps or bands; using other hose types or aftermarket clamps/bands is not recommended and may damage the hose. Use only with compatible PUSH-ON hoses and within the specified temperature and pressure limits.

How should the PUSH-ON self-clamping end with GW BSP, type YBW110 be stored before installation to maintain sealing performance?

To maintain sealing performance, the PUSH-ON self-clamping end with GW BSP, type YBW110 should be stored as follows: - Store clean and dry in original packaging or sealed containers to prevent contamination, dust and moisture that could damage the 60Â° cone sealing surface. - Keep in a corrosion-free environment at stable temperatures within the productâs operating range (preferably room temperature). Avoid prolonged storage above +80Â°C or below -40Â°C. - Protect sealing cone and thread from mechanical damage: avoid stacking heavy objects on ends and prevent impacts or abrasion that could deform grooves or the cone. - Prevent exposure to aggressive chemicals, solvents or salt spray that could corrode galvanized carbon steel or brass parts; if storing AISI 316 variants near corrosive media, ensure additional protection. - Keep ends separate from incompatible hoses or clamps; do not store already clamped or banded onto other hoses to avoid deformation of the special groove profile. - Rotate stock on FIFO principle and inspect before installation: check for intact cone surface, undamaged grooves, clean threads and absence of corrosion or burrs. Any damaged unit should be discarded. - If long-term storage is necessary, apply a light protective oil or desiccant inside packaging, ensuring removal and cleaning before assembly to preserve sealing integrity.

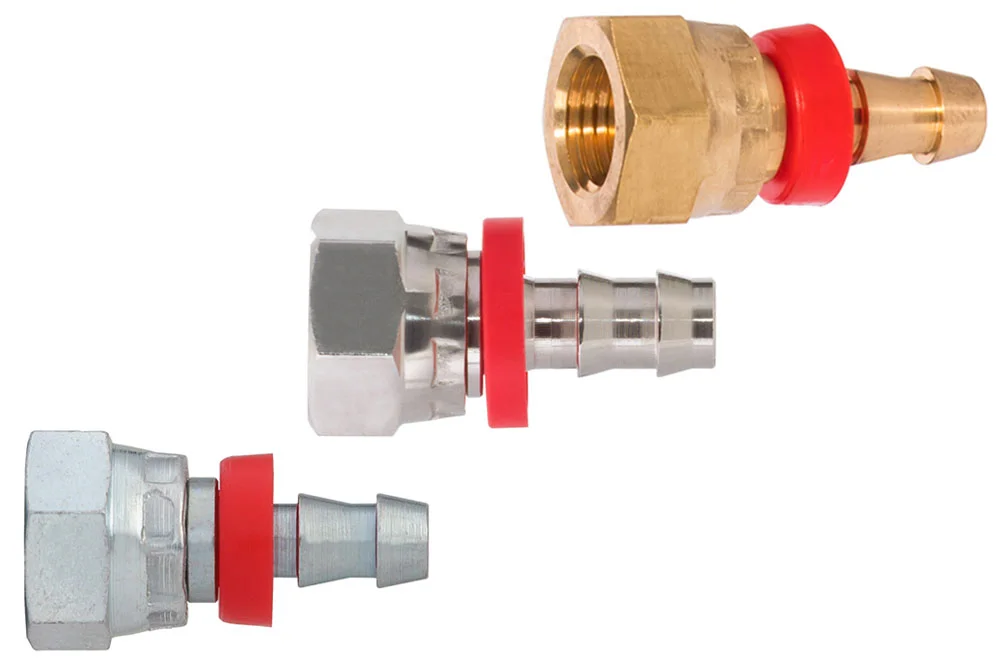

Embout auto-serrant PUSH-ON à filetage femelle BSP, type YBW110

Flexibles polyvalents, Tous les produits/

Informations complémentaires

Matériau	CS – acier (fonte)
Longueur standard [m]	100, 152.4

Embout PUSH-ON à filetage femelle BSP (étanchéité par cône 60°), type YBW110, destiné au flexible auto-serrant conçu pour ce type d’embout. Se monte sur le flexible sans utiliser de colliers ni de bandes. Il possède un profil de stries spécial, adapté au matériau et aux dimensions du flexible PUSH-ON ainsi qu’à la construction de sa tresse, qui provoque le serrage du flexible sur les stries de l’embout. L’embout ne doit pas être utilisé avec d’autres flexibles ni serré à l’aide de colliers ou de bandes, car cela risque d’endommager le flexible. Température de service : de -40°C à +80°C. Pression de service conforme à la spécification du flexible PUSH-ON. Matériau : acier au carbone galvanisé, laiton, acier AISI 316.

Liste des variantes de produit

Référence article	Nom de la variante du produit	DN	BAR	Disponibilité	Actions
TI-YBW110-04-04	Embout PUSH-ON femelle 1/4" BSP, tuyau 1/4", cône 60°	-	-	En stock	Demande
TI-YBW110-04-04-MO	Embout PUSH-ON femelle 1/4" BSP, tuyau 1/4", cône 60°, MO58	-	-	En stock	Demande
TI-YBW110-04-04-SS	Embout PUSH-ON femelle 1/4" BSP, tuyau 1/4", cône 60°, AISI 316L	-	-	En stock	Demande
TI-YBW110-06-06	Embout PUSH-ON femelle 3/8" BSP, tuyau 3/8", cône 60°	-	-	En stock	Demande
TI-YBW110-06-06-MO	Embout PUSH-ON femelle 3/8" BSP, tuyau 3/8", cône 60°, MO58	-	-	En stock	Demande
TI-YBW110-06-06-SS	Embout PUSH-ON femelle 3/8" BSP, tuyau 3/8", cône 60°, AISI 316L	-	-	En stock	Demande
TI-YBW110-08-08	Embout PUSH-ON femelle 1/2" BSP, tuyau 1/2", cône 60°	-	-	En stock	Demande
TI-YBW110-08-08-MO	Embout PUSH-ON femelle 1/2" BSP, tuyau 1/2", cône 60°, MO58	-	-	En stock	Demande
TI-YBW110-08-08-SS	Embout PUSH-ON femelle 1/2" BSP, tuyau 1/2", cône 60°, AISI 316L	-	-	En stock	Demande
TI-YBW110-10-10	Embout PUSH-ON femelle 5/8" BSP, tuyau 5/8", cône 60°	-	-	En stock	Demande
TI-YBW110-10-10-MO	Embout PUSH-ON femelle 5/8" BSP, tuyau 5/8", cône 60°, MO58	-	-	En stock	Demande
TI-YBW110-10-10-SS	Embout PUSH-ON femelle 5/8" BSP, tuyau 5/8", cône 60°, AISI 316L	-	-	En stock	Demande
TI-YBW110-12-10	Embout PUSH-ON femelle 3/4" BSP, tuyau 5/8", cône 60°	-	-	En stock	Demande
TI-YBW110-12-10-MO	Embout PUSH-ON femelle 3/4" BSP, tuyau 5/8", cône 60°, MO58	-	-	En stock	Demande
TI-YBW110-12-12	Embout PUSH-ON femelle 3/4" BSP, tuyau 3/4", cône 60°	-	-	En stock	Demande
TI-YBW110-12-12-MO	Embout PUSH-ON femelle 3/4" BSP, tuyau 3/4", cône 60°, MO58	-	-	En stock	Demande
TI-YBW110-12-12-SS	Embout PUSH-ON femelle 3/4" BSP, tuyau 3/4", cône 60°, AISI 316L	-	-	En stock	Demande
TI-YBW110-16-16	Embout PUSH-ON femelle 1" BSP, tuyau 1", cône 60°	-	-	En stock	Demande
TI-YBW110-16-16-SS	Embout PUSH-ON femelle 1" BSP, tuyau 1", cône 60°, AISI 316L	-	-	En stock	Demande

Vous avez besoin d'une plus grande quantité de produits ou d'un devis personnalisé ?

Appelez-nous : +33 679 352 568 ou envoyez-nous un e-mail : wirthjeanpierre@aol.fr

Envoyer une demande

Embout PUSH-ON à filetage femelle BSP (étanchéité par cône 60°), type YBW110, destiné au flexible auto-serrant conçu pour ce type d’embout. Se monte sur le flexible sans utiliser de colliers ni de bandes. Il possède un profil de stries spécial, adapté au matériau et aux dimensions du flexible PUSH-ON ainsi qu’à la construction de sa tresse, qui provoque le serrage du flexible sur les stries de l’embout. L’embout ne doit pas être utilisé avec d’autres flexibles ni serré à l’aide de colliers ou de bandes, car cela risque d’endommager le flexible. Température de service : de -40°C à +80°C. Pression de service conforme à la spécification du flexible PUSH-ON. Matériau : acier au carbone galvanisé, laiton, acier AISI 316.
