Can the 45Â° NON SKIVE DKOS end, heavy series, carbon steel, type NMW322 be crimped on 4SP/4SH/R13/R15 hoses with TI-N sleeve without cutting the hose rubber?

Yes. The 45Â° NON SKIVE DKOS end, heavy series, carbon steel, type NMW322 can be crimped on 4SP/4SH/R13/R15 hoses using a TI-N sleeve without cutting the hose rubber. The product is explicitly described as a 45Â° NON SKIVE end with internal metric thread, sealing on a 24Â° cone with an Oâring (DKOS 45), heavy series, intended for crimping on hose types 4SP, 4SH, R13 and R15 using the TIâN crimping sleeve, and its installation is specified as "without cutting the hose rubber." Material: carbon steel, galvanized.

Does the 45Â° NON SKIVE DKOS end, heavy series, carbon steel, type NMW322 require special tools or settings when crimped on 4SP/4SH/R13/R15 with TI-N sleeve?

The 45Â° NON SKIVE DKOS end, heavy series, carbon steel, type NMW322 does not require special tools or altered crimping settings beyond standard procedures for TIâN sleeves on 4SP/4SH/R13/R15 hoses. It is designed for crimping with a TIâN sleeve without cutting the hose rubber; use the manufacturerârecommended crimper and die set for TIâN sleeves and the hose size. Ensure correct die profile, crimp dimension and press force per the TIâN sleeve and hose specifications, and verify crimp dimensions after assembly. No additional machining or special fixtures are needed.

Is the 45Â° NON SKIVE DKOS end, heavy series, carbon steel, type NMW322 suitable for hoses with pre-installed fittings?

Yes. the 45Â° NON SKIVE DKOS end, heavy series, carbon steel, type NMW322 is suitable for hoses with pre-installed fittings, with the following conditions: - The product is a 45Â° NON SKIVE end with internal metric thread and sealing on a 24Â° cone with Oâring (DKOS 45), heavy series, intended specifically for crimping onto hoses type 4SP, 4SH, R13, and R15 using the TIâN crimping sleeve. - âNonâskiveâ and the installation note âwithout cutting the hose rubberâ mean the hose cover is not removed prior to assembly, so the fitting is designed to be crimped over the intact hose with preâinstalled fittings that are compatible with nonâskive assembly. - Compatibility requires that the hose is one of the specified types (4SP, 4SH, R13, R15), the preâinstalled fittingâs geometry matches the TIâN sleeve system, and the crimping process uses the correct TIâN sleeve and crimp dimensions for NMW322. - Material and finish (carbon steel, galvanized) are standard for these applications but do not affect the ability to use preâinstalled fittings, provided the mechanical and sealing interfaces match. Conclusion: If your hose is type 4SP/4SH/R13/R15, the preâinstalled fitting is intended for TIâN sleeve crimping, and you use the correct TIâN sleeve and crimp parameters for NMW322, then the 45Â° NON SKIVE DKOS end, heavy series, carbon steel, type NMW322 is suitable for hoses with preâinstalled fittings.

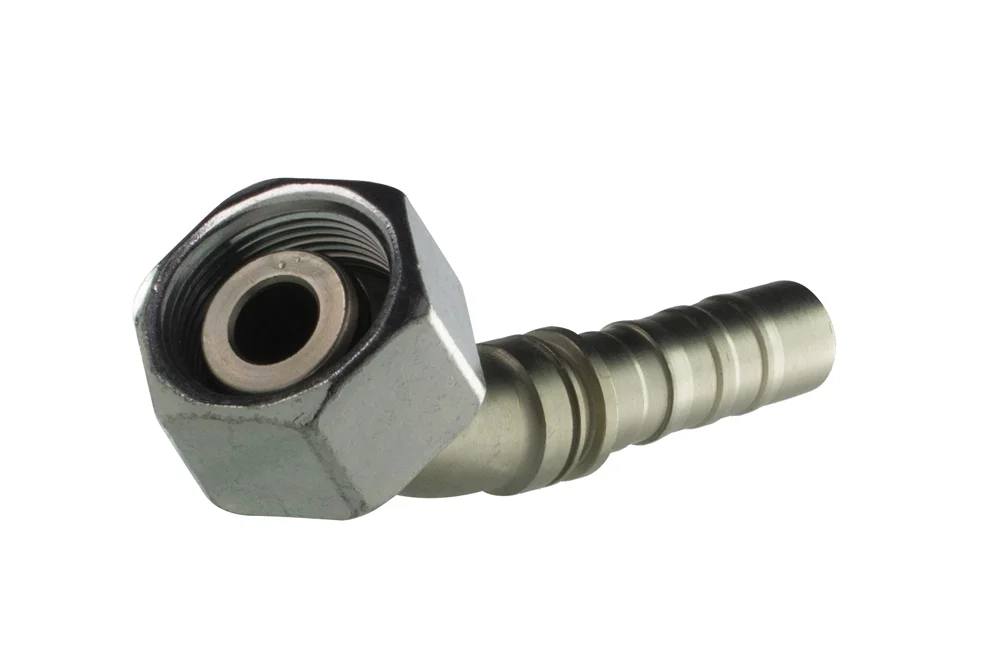

Embout 45° NON SKIVE DKOS, série lourde, acier au carbone, type NMW322

Informations complémentaires

Matériau	CS – acier (fonte)
Longueur standard [m]	3

Embout 45° NON SKIVE avec filetage intérieur métrique, étanchéité sur cône 24°, joint torique (DKOS 45), série lourde, conçu pour le sertissage sur flexibles type 4SP, 4SH, R13 et R15 avec bague de sertissage TI-N. Montage : sans découpe de la gaine du flexible. Matière : acier au carbone, galvanisé.

Liste des variantes de produit

Référence article	Nom de la variante du produit	DN	BAR	Disponibilité	Actions
TI-NMW322-30-12	Embout 45° NON SKIVE, filetage femelle M30x2, tuyau 3/4"	20	420	En stock	Demande
TI-NMW322-36-12	Embout 45° NON SKIVE femelle M36x2, tuyau 3/4	20	420	En stock	Demande
TI-NMW322-36-16	Embout 45° NON SKIVE, filetage femelle M36x2, tuyau 1"	25	380	En stock	Demande
TI-NMW322-42-16	Embout 45° NON SKIVE femelle M42x2, tuyau 1"	25	380	En stock	Demande
TI-NMW322-42-20	Embout coudé 45° NON SKIVE, filetage femelle M42x2, tuyau 1.1/4"	32	325	En stock	Demande
TI-NMW322-52-20	Raccord terminal 45° NON SKIVE femelle M52x2, tuyau 1.1/4"	32	325	En stock	Demande
TI-NMW322-52-24	Embout coudé 45° NON SKIVE, femelle M52x2, tuyau 1.1/2"	38	290	En stock	Demande

Vous avez besoin d'une plus grande quantité de produits ou d'un devis personnalisé ?

Appelez-nous : +33 679 352 568 ou envoyez-nous un e-mail : wirthjeanpierre@aol.fr

Envoyer une demande

Embout 45° NON SKIVE avec filetage intérieur métrique, étanchéité sur cône 24°, joint torique (DKOS 45), série lourde, conçu pour le sertissage sur flexibles type 4SP, 4SH, R13 et R15 avec bague de sertissage TI-N. Montage : sans découpe de la gaine du flexible. Matière : acier au carbone, galvanisé.
