Is the 90Â° elbow with external and internal BSP thread compatible with the Straight connector with GZ BSP / GW BSP, PVDF, 3F series for use in pharmaceutical and food applications?

Yes . the 90Â° elbow with external and internal BSP thread, series 3F type EM, made of PVDF (also available in polypropylene) and rated to 10 bar, is compatible with the Straight connector with GZ BSP / GW BSP, PVDF, 3F series for pharmaceutical and food applications. Both parts share the same 3F series, BSP thread standards (external/internal vs GZ/GW BSP terminology), and PVDF material, which is chemically resistant, inert and suitable for hygienic uses. Ensure matching BSP thread sizes and male/female orientation (external/internal vs GZ/GW) and verify pressure, temperature and sealing (use appropriate gaskets or PTFE tape if required) for your specific system and regulatory cleaning/sterilization requirements.

Can the 90Â° elbow with external and internal BSP thread, PVDF, 3F series be sterilized for use with the Straight connector with GZ BSP / GW BSP, PVDF, 3F series?

Yes. The 90Â° elbow with external and internal BSP thread, PVDF, 3F series can be sterilized for use with the Straight connector with GZ BSP / GW BSP, PVDF, 3F series. Both components are PVDF from the same 3F series, designed for laboratory, medical, pharmaceutical, chemical, and food applications, and can withstand typical sterilization methods compatible with PVDF (e.g., autoclaving and chemical sterilants) within the materialâs temperature and pressure limits. Ensure sterilization parameters do not exceed PVDFâs recommended temperature and that connections are assembled per manufacturer guidance to maintain seal integrity under working pressure (10 bar).

Does the 90Â° elbow with external and internal BSP thread, PVDF, 3F series meet USP/EP material standards for use with the Straight connector with GZ BSP / GW BSP, PVDF, 3F series?

Based on the provided description, the 90Â° elbow with external and internal BSP thread, PVDF, 3F series (type EM) is stated to be made of polypropylene and PVDF and intended for use in laboratories, medicine, pharmaceutical, chemical, and food industries, with a working pressure of 10 bar. However, that description does not explicitly state compliance with USP (United States Pharmacopeia) or EP (European Pharmacopeia) material standards. Therefore, you cannot assume USP/EP compliance solely from the application claims. To determine if the 90Â° elbow meets USP/EP standards for use with the Straight connector with GZ BSP / GW BSP, PVDF, 3F series Format, you need explicit manufacturer documentation certifying USP Class VI or specific USP/EP material test compliance for the PVDF used (e.g., certificates of analysis, declaration of conformity, or thirdâparty test reports). Ask the manufacturer or supplier for USP/EP compliance certificates for the PVDF component; once provided and matching the Straight connector with GZ BSP / GW BSP, PVDF, 3F series Format materials, you can confirm suitability.

Raccord droit avec filetage BSP mâle/femelle, PVDF, série 3F

Informations complémentaires

Matériau	P – matériau (plastique)

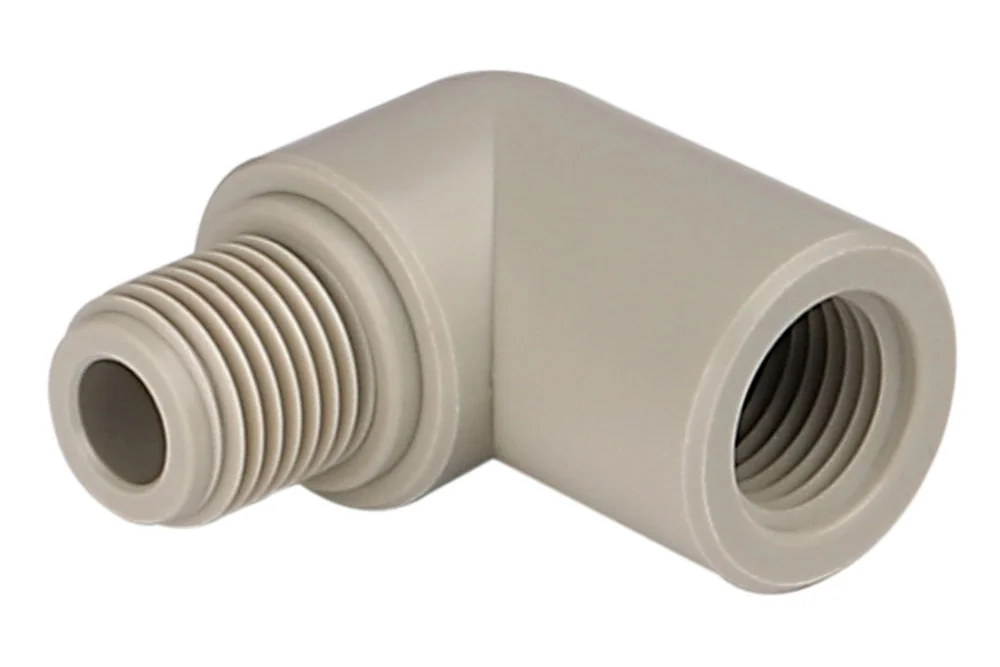

Coude à 90° avec filetage BSP mâle et femelle, série 3F type EM, largement utilisé dans les laboratoires, la médecine, l’industrie pharmaceutique, chimique et alimentaire. Matière : polypropylène, PVDF. Pression de service : 10 bar.

Liste des variantes de produit

Référence article	Nom de la variante du produit	DN	BAR	Disponibilité	Actions
EM-3F234GG12PP	Raccord à 90° (série 3F) avec filetage mâle/femelle BSP 1/2", en polypropylène	-	10	En stock	Demande
EM-3F234GG12PV	Coude 90° (série 3F) avec filetage mâle/femelle BSP 1/2", PVDF	-	10	En stock	Demande
EM-3F234GG14PP	Raccord à 90° (série 3F) avec filetage mâle/femelle BSP 1/4", polypropylène	-	10	En stock	Demande
EM-3F234GG14PV	Raccord coudé 90° (série 3F) avec filetage mâle/femelle BSP 1/4", PVDF	-	10	En stock	Demande
EM-3F234GG18PP	Raccord coudé 90° (série 3F) avec filetage mâle/femelle BSP 1/8", polypropylène	-	10	En stock	Demande
EM-3F234GG18PV	Raccord coudé 90° (série 3F) avec filetage mâle/femelle BSP 1/8", PVDF	-	10	En stock	Demande
EM-3F234GG38PP	Raccord 90° (série 3F) avec G/M-F/BSP 3/8", polypropylène	-	10	En stock	Demande
EM-3F234GG38PV	Raccord coudé 90° (série 3F) avec filetage mâle/femelle BSP 3/8", PVDF	-	10	En stock	Demande

Vous avez besoin d'une plus grande quantité de produits ou d'un devis personnalisé ?

Appelez-nous : +33 679 352 568 ou envoyez-nous un e-mail : wirthjeanpierre@aol.fr

Envoyer une demande

Coude à 90° avec filetage BSP mâle et femelle, série 3F type EM, largement utilisé dans les laboratoires, la médecine, l’industrie pharmaceutique, chimique et alimentaire. Matière : polypropylène, PVDF. Pression de service : 10 bar.
