Does the FULL-JET injector nozzle, aluminum, series 269 with 2.5 mm hole double ambient air flow at 2â8 bar while producing 90 dB noise?

Yes. The FULL-JET injector nozzle, aluminum, series 269 with a 2.5 mm hole doubles ambient air flow within the specified operating pressure range of 2â8 bar while producing a noise level of 90 dB. The product description explicitly states it draws air from the environment at an exceptionally high flow rate, doubling the air flow, and lists noise level: 90 dB, material: aluminum, and operating pressure: 2 Ã· 8 bar.

How does the FULL-JET injector nozzle, aluminum, series 269 (2.5 mm) achieve doubling of ambient air flow across 2â8 bar?

The FULL-JET injector nozzle, aluminum, series 269 (2.5 mm) doubles ambient air flow across 2â8 bar by using a high-velocity narrow jet and induced entrainment. Compressed air forced through the 2.5 mm orifice exits as a focused, wide air stream that creates a low-pressure region (Venturi effect) around the jet. This low pressure draws ambient air into the stream, entraining and mixing it with the primary flow. The nozzle geometry and aluminum construction maximize jet momentum and minimize energy loss, so for the specified pressure range the induced ambient uptake is roughly equal to the supplied compressed-air volume, resulting in about twice the total airflow. Operational limits: noise ~90 dB, temperature -10Â°C to +50Â°C.

Can the FULL-JET injector nozzle, aluminum, series 269 (2.5 mm) maintain doubled ambient air flow across -10Â°C to +50Â°C?

Yes. Based on the provided description, the FULL-JET injector nozzle, aluminum, series 269 (2.5 mm) can maintain doubled ambient air flow across the specified temperature range. The product statement explicitly notes that its wide air stream and 2.5 mm hole diameter draw air from the environment at an exceptionally high flow rate, doubling the air flow, and its operating temperature is specified as -10Â°C to +50Â°C. Assuming normal operating pressure (2â8 bar) and no additional limiting factors (installation restrictions, supply pressure variations, or severe contamination), the nozzleâs rated airflow performance applies throughout that temperature range. Noise level (90 dB) and aluminum construction do not negate the stated airflow capability within the -10Â°C to +50Â°C operating limits.

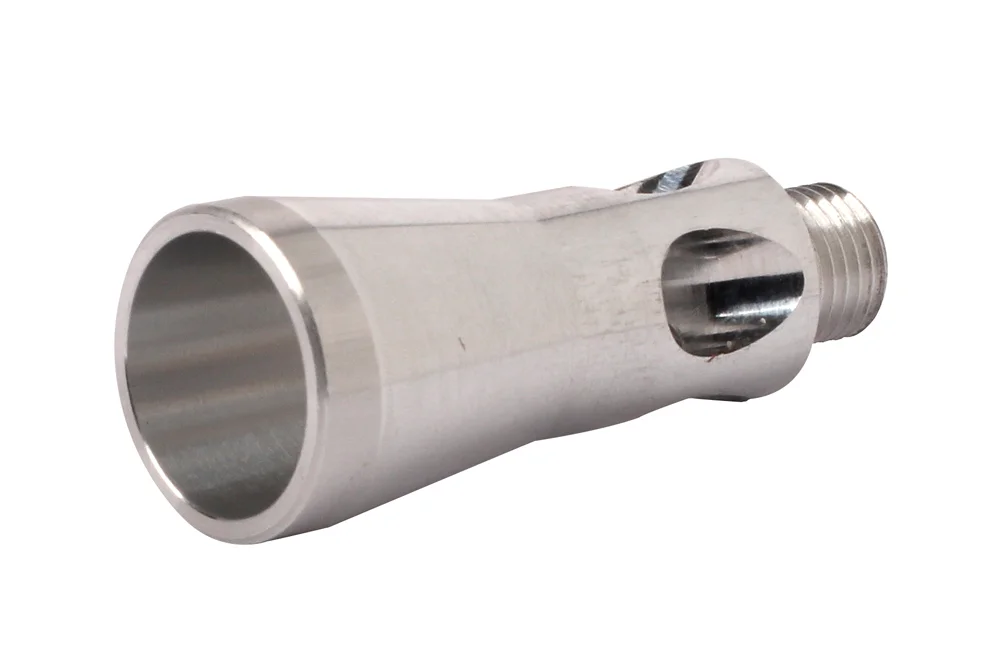

Buse à injecteur FULL-JET, aluminium, série 269

Pistolets à air, Tous les produits/

Informations complémentaires

Buse à injecteur FULL-JET avec orifice de 2,5 mm de diamètre et large jet d’air, aspire l’air ambiant avec un débit exceptionnellement élevé, doublant le débit d’air. Niveau sonore : 90 dB. Matériau : aluminium. Pression de service : 2 ÷ 8 bar. Température de service : de -10°C à +50°C.

Liste des variantes de produit

Référence article	Nom de la variante du produit	DN	BAR	Disponibilité	Prix	Quantité	Actions	Catalogue
EW-269K59	Buse injecteur Full-Jet, Ø d’orifice 2,5 mm, filetage mâle M12x1,25, aluminium	-	10	En stock	0 zł		Demande

Vous avez besoin d'une plus grande quantité de produits ou d'un devis personnalisé ?

Appelez-nous : +33 679 352 568 ou envoyez-nous un e-mail : wirthjeanpierre@aol.fr

Envoyer une demande

Buse à injecteur FULL-JET avec orifice de 2,5 mm de diamètre et large jet d’air, aspire l’air ambiant avec un débit exceptionnellement élevé, doublant le débit d’air. Niveau sonore : 90 dB. Matériau : aluminium. Pression de service : 2 ÷ 8 bar. Température de service : de -10°C à +50°C.
