Is the SAE 6000 flange end, type ZSK112, heavy series, carbon steel, zincânickel compatible with standard hydraulic crimping sleeves and hose ferrules?

Yes . the SAE 6000 flange end, type ZSK112, heavy series, carbon steel, zincânickel is compatible with standard hydraulic crimping sleeves and hose ferrules provided the sleeve and ferrule are specified for the hose construction and size. The product is expressly designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the hose type. Its carbon steel body with a zincânickel coating (6â10 Âµm) does not prevent crimping; the coating provides corrosion resistance without affecting mechanical crimp integrity when proper crimping tools, dies, and sleeve materials (matched to the hose) are used. Important considerations: - Use sleeves/ferrules sized and rated for the exact hose type and nominal diameter. - Follow the hose manufacturerâs and crimperâs recommended crimp specifications (die profile, pressure, number of crimps). - Inspect crimped assemblies for proper squeeze, no gaps, and correct dimensions. - Ensure compatibility of materials (electrochemical concerns are minimal with zincânickel over carbon steel but avoid dissimilar-metal contact issues in specific environments). When these guidelines are followed, the SAE 6000 flange end, type ZSK112, heavy series, carbon steel, zincânickel will work with standard hydraulic crimping sleeves and ferrules.

What torque specifications are recommended for assembling SAE 6000 flange end, type ZSK112, heavy series, carbon steel, zincânickel?

For SAE 6000 flange end, type ZSK112, heavy series, carbon steel, zincânickel, specific torque values for assembly are not provided in the product description. Recommended practice: follow hose manufacturer and crimping machine/sleeve supplier guidelines for crimping force and die settings rather than applying a torque to the flange itself. If bolted to a mating flange, use standard SAE flange bolting torques for the bolt size and grade specified (typical ASTM/ISO torque charts) and ensure even, crossâpattern tightening to the flange face. For critical or pressurized systems, consult the hose/flange manufacturer or engineering datasheet to obtain exact bolt torque, crimping parameters, and gasket requirements.

Can SAE 6000 flange end, type ZSK112, heavy series, carbon steel, zincânickel be used in marine or coastal environments without additional corrosion protection?

Generally yes for many coastal and moderately aggressive marine environments, but with caveats. Why: SAE 6000 flange end, type ZSK112, heavy series, carbon steel, zincânickel is coated with a zincânickel layer 6â10 Âµm thick and is specified to resist corrosion in a salt spray chamber for up to 720 hours. That level of performance indicates high corrosion resistance significantly better than plain zinc plating and suitable for many offshore/coastal applications where atmospheric salt spray and occasional wetting occur. Caveats and limitations: - 720 hours in a salt spray test (typically NSS) is a laboratory accelerated test; real marine exposure can be harsher (continuous immersion, splash zones, tidal zones, galvanic coupling, pollutants, biological fouling). - Carbon steel core remains susceptible if coating is damaged, scratched or worn during installation or service. Seams, cut edges and crimped areas can be vulnerable. - Contact with dissimilar metals can create galvanic corrosion if electrical continuity to seawater exists; zincânickel is more noble than pure zinc and changes galvanic behavior. - Continuous immersion (submerged service) or immersion in highly corrosive/industrial marine environments may exceed the coatingâs protection. - High mechanical abrasion, heavy chemical exposure (acids, bases, solvents) or elevated temperatures can reduce coating life. Recommendations: - For atmosphere-exposed coastal service and protected marine equipment, SAE 6000 flange end, type ZSK112, heavy series, carbon steel, zincânickel will often be acceptable without extra protection. - For splash/tidal zones, continuous immersion, highly corrosive ports or critical installations, add supplementary protection: sealing of cut/crimped edges, protective overcoatings (paints, sealants), sacrificial anodes or use of stainless/duplex materials. - Inspect coating integrity after crimping/installation and implement periodic corrosion inspections. Conclusion: Use without additional corrosion protection is reasonable for many coastal/marine atmospheres given the 720âhour salt spray performance, but assess exposure severity, mechanical damage risk and galvanic coupling. For highârisk marine conditions, apply additional protection or choose more corrosionâresistant base materials.

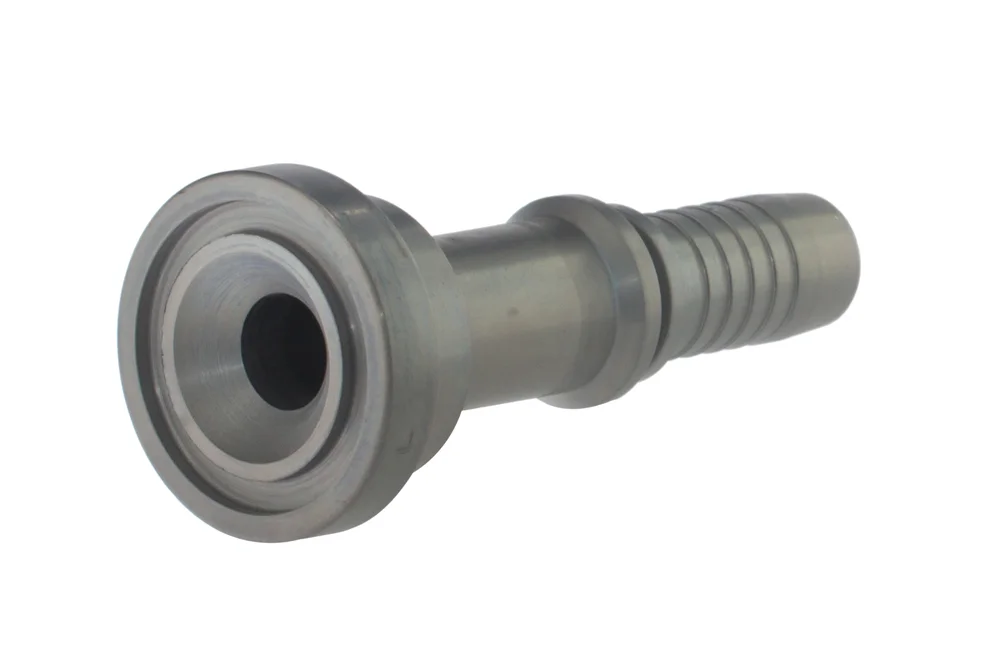

Embout à bride SAE 6000, type ZSK112, série lourde, acier au carbone, zinc-nickel.

Informations complémentaires

Matériau	CS – acier (fonte)
Longueur standard [m]	50

Embout à bride SAE 6000 (SFL), série lourde. Conçu pour le sertissage sur flexibles hydrauliques et industriels à l’aide d’une bague de sertissage adaptée au type de flexible. Revêtement de surface zinc-nickel d’une épaisseur de 6 à 10 µm, caractérisé par une très haute résistance à la corrosion (jusqu’à 720 heures sans corrosion en chambre de brouillard salin). Matière : acier au carbone, zinc-nickel.

Liste des variantes de produit

Référence article	Nom de la variante du produit	DN	BAR	Disponibilité	Actions
TI-ZSK112-08-08-CN	Embout à bride SAE 1/2", tuyau 1/2", lourd, Zn-Ni	12	-	En stock	Demande
TI-ZSK112-12-08-CN	Embout à bride SAE 3/4", tuyau 1/2", lourd, Zn-Ni	12	-	En stock	Demande
TI-ZSK112-12-10-CN	Embout à bride SAE 3/4", tuyau 5/8", lourd, Zn-Ni	16	-	En stock	Demande
TI-ZSK112-12-12-CN	Embout à bride SAE 3/4", tuyau 3/4", version lourde, Zn-Ni	20	-	En stock	Demande
TI-ZSK112-16-12-CN	Embout à bride SAE 1", flexible 3/4", lourd, Zn-Ni	20	-	En stock	Demande
TI-ZSK112-16-16-CN	Embout à bride SAE 1", flexible 1", lourd, Zn-Ni	25	-	En stock	Demande
TI-ZSK112-20-16-CN	Embout coudé SAE 1.1/4", tuyau 1", lourd, Zn-Ni	25	-	En stock	Demande
TI-ZSK112-20-20-CN	Raccord coudé SAE 1.1/4", flexible 1.1/4", lourd, Zn-Ni	32	-	En stock	Demande
TI-ZSK112-24-20-CN	Embout à bride SAE 1 1/2", flexible 1 1/4", lourd, Zn-Ni	32	-	En stock	Demande
TI-ZSK112-24-24-CN	Embout à bride SAE 1.1/2", flexible 1.1/2", lourd, Zn-Ni	38	-	En stock	Demande
TI-ZSK112-32-24-CN	Embout à bride SAE 2", tuyau 1 1/2", lourd, Zn-Ni	38	-	En stock	Demande
TI-ZSK112-32-32-CN	Embout à bride SAE 2", flexible 2", lourd, Zn-Ni	50	-	En stock	Demande

Vous avez besoin d'une plus grande quantité de produits ou d'un devis personnalisé ?

Appelez-nous : +33 679 352 568 ou envoyez-nous un e-mail : wirthjeanpierre@aol.fr

Envoyer une demande

Embout à bride SAE 6000 (SFL), série lourde. Conçu pour le sertissage sur flexibles hydrauliques et industriels à l’aide d’une bague de sertissage adaptée au type de flexible. Revêtement de surface zinc-nickel d’une épaisseur de 6 à 10 µm, caractérisé par une très haute résistance à la corrosion (jusqu’à 720 heures sans corrosion en chambre de brouillard salin). Matière : acier au carbone, zinc-nickel.
