Is the PN16 fixed flange for hose, carbon steel, type CNWF compatible with both rubber and plastic industrial hoses and installed using straps or clamp bands?

Yes. The PN16 fixed flange for hose, carbon steel, type CNWF is compatible with both rubber and plastic industrial hoses. It features a âtailâ designed to receive hose ends and is intended to be secured with straps or clamp bands. Material: carbon steel, galvanized.

Can the PN16 fixed flange for hose, carbon steel, type CNWF be used with high-temperature or oil-resistant hoses?

PN16 fixed flange for hose, carbon steel, type CNWF is designed for rubber and plastic industrial hoses and is installed using straps or clamp bands. Because itâs made of carbon steel (galvanized) and intended for general rubber/plastic hoses, it is not specifically rated for high-temperature or oil-resistant hoses. High-temperature or oil-resistant applications often require specialized materials (stainless steel, heat-resistant alloys, or specific coatings) and seals compatible with fluids and temperatures involved. Using PN16 fixed flange for hose, carbon steel, type CNWF with such hoses may risk premature corrosion, loss of seal, or mechanical failure. Consult hose and flange manufacturers for compatibility or choose flanges and fittings specified for high-temp/oil service.

Does the PN16 fixed flange for hose, carbon steel, type CNWF require specific clamp band sizes for secure installation?

Yes. the PN16 fixed flange for hose, carbon steel, type CNWF requires appropriately sized clamp bands (straps) for a secure installation. Because the flange has a hose âtailâ and is intended for rubber and plastic industrial hoses, the clamp bands must match both the outer diameter of the hose over the tail and the hose wall thickness to ensure an even, firm compression without cutting into the hose material. Use corrosion-resistant clamps compatible with galvanized carbon steel to avoid galvanic issues and ensure durability. Practical recommendations: - Select clamp bands rated for industrial hose applications and able to deliver sufficient tightening torque for PN16 pressure levels. - Match clamp inner diameter range to the hose outer diameter over the tail; if the hose OD falls between sizes, choose the next larger clamp and tighten per manufacturer torque specs. - Prefer wide-band or multiple clamps for larger diameters to distribute pressure and prevent hose deformation or leaks. - Verify clamp material compatibility (stainless steel is commonly recommended) and follow the hose and flange manufacturerâs installation and torque guidelines. In short: yes. choose clamp bands sized to the hose OD and suited to industrial service to ensure a secure, leak-free installation of the PN16 fixed flange for hose, carbon steel, type CNWF.

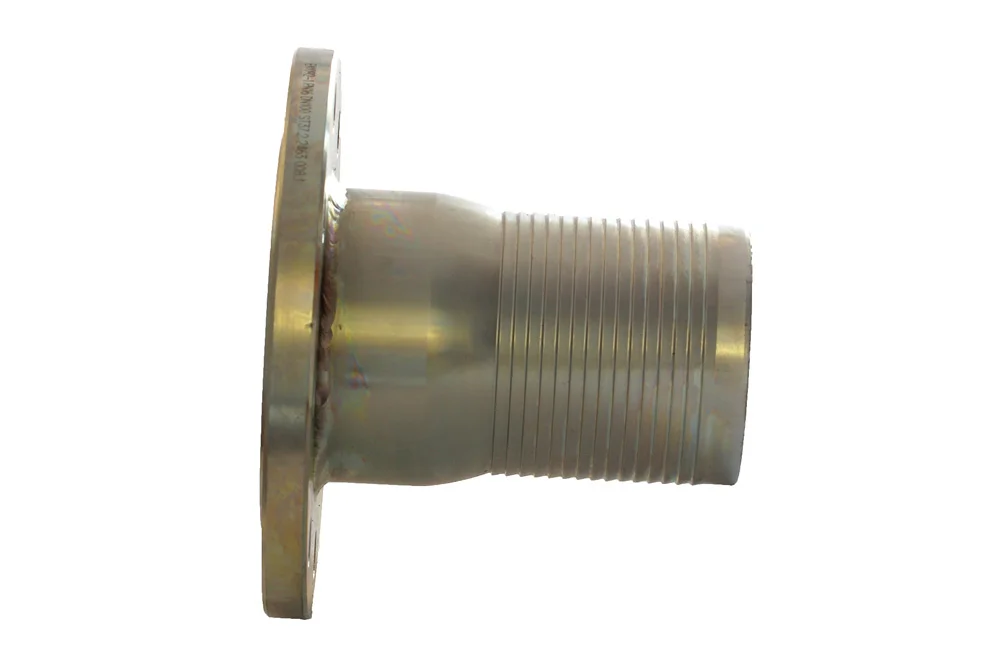

Bride fixe PN16 pour flexible, acier carbone, type CNWF

Informations complémentaires

Matériau	CS – acier (fonte)

Bride fixe PN16 type CNWF en acier carbone avec « queue » pour flexibles. Conçue pour les flexibles industriels en caoutchouc et en plastique. Montage à l’aide de colliers ou de bandes de serrage. Matière : acier carbone, galvanisé.

Liste des variantes de produit

Référence article	Nom de la variante du produit	DN	BAR	Disponibilité	Actions
AC-CNWF-015	Bride fixe PN16 DN15, pour tuyau DN15, acier galvanisé	16	-	En stock	Demande
AC-CNWF-020	Bride fixe PN16 DN20, pour tuyau DN20, acier galvanisé	20	-	En stock	Demande
AC-CNWF-025	Bride fixe PN16 DN25, pour tuyau DN25, acier galvanisé	25	-	En stock	Demande
AC-CNWF-032	Bride fixe PN16 DN32, pour tuyau DN32, acier galvanisé	32	-	En stock	Demande
AC-CNWF-040	Bride fixe PN16 DN40, pour tuyau DN40, acier galvanisé	40	-	En stock	Demande
AC-CNWF-050	Bride fixe PN16 DN50, pour tuyau DN50, acier galvanisé	50	-	En stock	Demande
AC-CNWF-065	Bride fixe PN16 DN65, pour tuyau DN65, acier galvanisé	65	-	En stock	Demande
AC-CNWF-080	Bride fixe PN16 DN80, pour tuyau DN80, acier galvanisé	80	-	En stock	Demande
AC-CNWF-100	Bride fixe PN16 DN100, pour tuyau DN100, acier galvanisé	100	-	En stock	Demande

Vous avez besoin d'une plus grande quantité de produits ou d'un devis personnalisé ?

Appelez-nous : +33 679 352 568 ou envoyez-nous un e-mail : wirthjeanpierre@aol.fr

Envoyer une demande

Bride fixe PN16 type CNWF en acier carbone avec « queue » pour flexibles. Conçue pour les flexibles industriels en caoutchouc et en plastique. Montage à l’aide de colliers ou de bandes de serrage. Matière : acier carbone, galvanisé.
