Does the CF1 oil filter device support filtration down to 10 Âµm and how do I change the filter element?

Yes. The CF1 oil filter device supports filtration down to 10 Âµm . its standard filter is 25 Âµm, but 10 Âµm and 20 Âµm elements are also available. To change the filter element: stop and isolate the unit, disconnect power, relieve system pressure and close suction/discharge lines; remove the filter housing cover, extract the used cartridge, fit the replacement element (ensure correct orientation and sealing), reassemble the housing and secure the cover, open lines, restore power and run the device briefly to check for leaks and proper flow. Follow any manufacturer safety instructions and dispose of used filters per local regulations.

Can the CF1 oil filter device handle high-viscosity oils and what are the recommended operating adjustments?

Yes - the CF1 oil filter device can handle higherâviscosity oils, but you should apply operating adjustments to maintain flow and avoid overloading the drive. Recommendations: - Expect reduced flow versus the nominal 39 l/min as viscosity rises; monitor actual flow and pressure. - Use the 125 Âµm suction filter to reduce suction restriction with thick oils; avoid finer suction elements. - If fine filtration is still required, keep the main filter at 25 Âµm (or 20/10 Âµm only if pump capacity allows) but be prepared for higher differential pressure and slower throughput. - Warm the oil (within safe temperature limits) to lower viscosity before pumping - this is the most effective measure. - Monitor motor load (0.55 kW, 400 V) and temperature; if motor strains or flow drops excessively, reduce duty cycle or use a lower-viscosity preâtreatment. - Keep suction lines short, straight and fully primed to minimize cavitation and resistance.

What maintenance interval is recommended for the CF1 oil filter device under continuous operation?

For continuous operation, the CF1 oil filter device should undergo routine maintenance at the following intervals: - Daily: Visual inspection of the unit, check for leaks, abnormal noises, and proper operation of the pump and electrical connections. Verify oil flow and pressure are within normal ranges. - Weekly: Clean the external surfaces and check hoses, fittings, and seals for wear or damage. Ensure the suction filter (125 Âµm) is free from large debris. - Monthly: Inspect and, if necessary, clean or replace the suction filter element. Check electrical motor mounting and belt/drive condition. - Every 250â500 operating hours (or every 1â2 months under heavy continuous use): Replace or service the main filter element (25 Âµm). If the system handles particularly contaminated oil or finer filtration is used (10 or 20 Âµm), shorten this interval to every 250 hours. - Every 1,000 operating hours (or as manufacturer prescribes): Perform a comprehensive serviceâreplace filter elements, inspect and test pump performance, check motor and electrical system, inspect and replace seals/gaskets as needed, and verify flow rate (39 l/min) and filtration efficiency. Adjust intervals based on actual contamination levels and operating conditions; use shorter intervals for higher contamination or when using finer filters. Regular record-keeping of operating hours and maintenance actions is recommended to optimize service frequency.

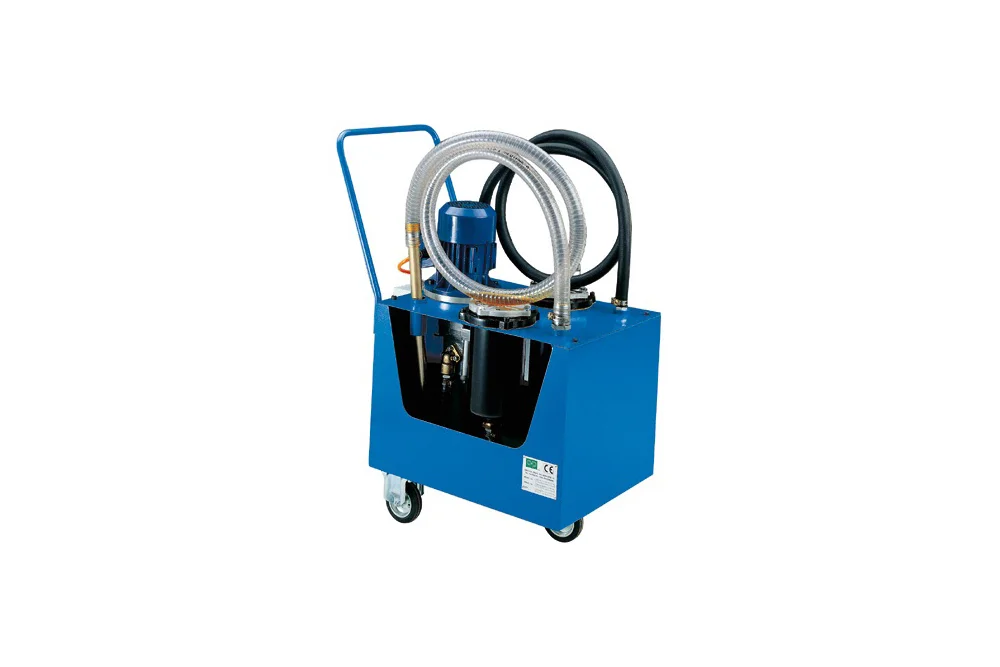

Appareil de filtration d’huile CF1

Autres dispositifs, Tous les produits/

Informations complémentaires

Appareil pour le remplissage, l’aspiration et la filtration de l’huile des réservoirs de presses, machines et installations hydrauliques. Paramètres : entraînement électrique 0,55 kW, 400V ; pompe 39 l/min ; filtre 25 µm (également disponible en 10 et 20 µm) ; filtre d’aspiration 125 µm. Poids : 60 kg.

Liste des variantes de produit

Référence article	Nom de la variante du produit	DN	BAR	Disponibilité	Prix	Quantité	Actions	Catalogue
OP-CF1	Dispositif de filtration d’huile CF1	-	-	En stock	0 zł		Demande

Vous avez besoin d'une plus grande quantité de produits ou d'un devis personnalisé ?

Appelez-nous : +33 679 352 568 ou envoyez-nous un e-mail : wirthjeanpierre@aol.fr

Envoyer une demande

Appareil pour le remplissage, l’aspiration et la filtration de l’huile des réservoirs de presses, machines et installations hydrauliques. Paramètres : entraînement électrique 0,55 kW, 400V ; pompe 39 l/min ; filtre 25 µm (également disponible en 10 et 20 µm) ; filtre d’aspiration 125 µm. Poids : 60 kg.
