Is the ADVANSTAR CWP multi-pass hydraulic hose - 350 BAR compatible with standard hydraulic fittings and flanges used in large construction machinery?

Yes. The ADVANSTAR CWP multi-pass hydraulic hose - 350 BAR is compatible with standard hydraulic fittings and flanges used in large construction machinery. Reasoning: - It is designed for hydraulic power systems of large construction machinery and hydraulic-driven equipment, so its construction and dimensions target those applications. - Rated working pressure 350 bar and built to ISO 18752 CLASS 350 CC, which aligns with common industrial hydraulic fitting pressure classes. - Construction (inner synthetic rubber, four layers of spiral steel wire reinforcement, outer rubber) matches the expectations for hoses that use standard crimped, swaged, or flange-type fittings. - Operating temperature range (-40Â°C to +120Â°C) and MSHA flame-resistant outer layer meet typical environmental and safety requirements for heavy machinery installations. Note: Confirm compatibility by matching hose nominal diameter and end-termination specification to the exact fitting/flange standard (thread type, bore size, crimp profile or flange type) used on your equipment.

How does ADVANSTAR CWP multi-pass hydraulic hose - 350 BAR perform under extreme temperature variations in heavy machinery applications?

ADVANSTAR CWP multi-pass hydraulic hose - 350 BAR performs reliably across extreme temperature variations typical in heavy machinery applications. Its rated operating range of -40Â°C to +120Â°C for hydraulic oil means materials (black synthetic rubber inner and outer layers) remain flexible and chemically stable from deep cold to high heat. Four layers of spiral steel wire reinforcement maintain structural integrity and working pressure of 350 bar even when temperatures fluctuate. Increased flexibility (50% better bending radius) reduces stress at fittings in cold starts and confined routing, while MSHA flame-resistant outer layer adds thermal safety in hot environments. Lifespan validated by 500,000 impulse cycles further confirms durability under thermal and pressure cycling in large construction and hydraulic-driven equipment.

Can ADVANSTAR CWP multi-pass hydraulic hose - 350 BAR withstand abrasive environments and resist external wear?

ADVANSTAR CWP multi-pass hydraulic hose - 350 BAR offers several features that improve durability in demanding environments, but its resistance to abrasive external wear is limited by typical rubber outer layers. Why it performs well: - Reinforcement: four layers of spiral steel wire provide excellent structural strength and resistance to internal fatigue and pressure-related damage. - Proven durability: life confirmed to 500,000 impulse cycles indicates high resistance to internal wear and cyclic stress. - Operating range: wide temperature tolerance (â40Â°C to +120Â°C) supports use in varied climates without outerâlayer embrittlement. - Flame resistance (MSHA) of the outer layer adds protection against heat and ignition hazards. Limitations versus abrasion: - Outer layer material is black synthetic rubber, which offers general protection but is not described as specifically abrasionâresistant (e.g., no mention of specialized abrasion compounds or additional protective covers). - In heavily abrasive external environments (sharp rocks, constant rubbing, sand/grit exposure, metal-to-metal contact), the standard rubber outer cover may wear faster unless additional protection is applied. Recommendation: For abrasive conditions, use ADVANSTAR CWP multi-pass hydraulic hose - 350 BAR with supplemental protection such as abrasion sleeves, spiral guards, hose wraps, or routing changes to minimize contact and wear. For continuous heavy abrasion, consider hoses or covers specifically rated for high abrasion resistance.

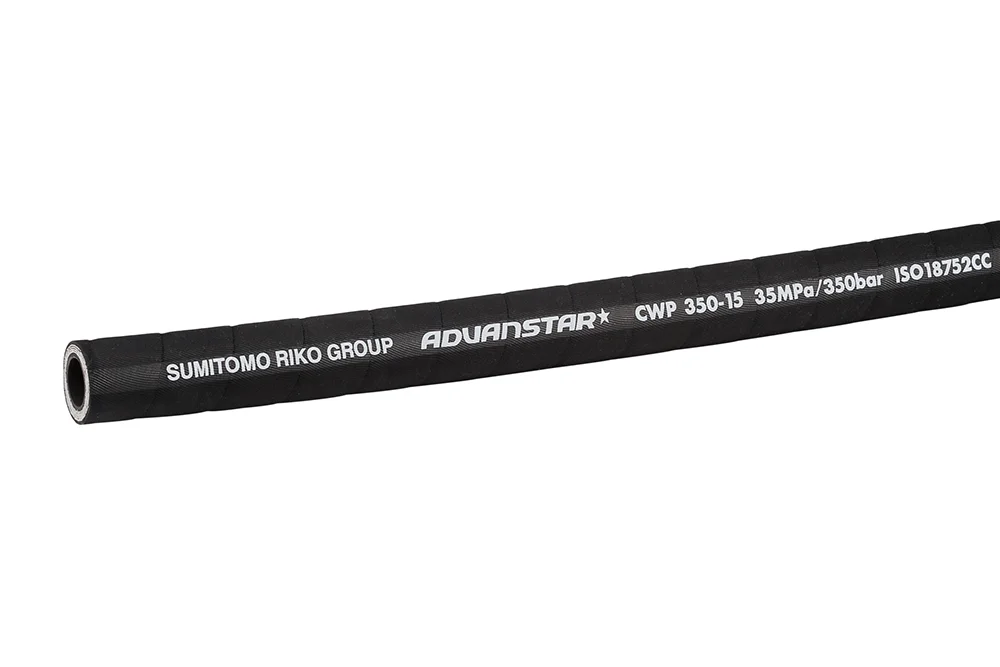

Flexible hydraulique ADVANSTAR CWP multi-passes – 350 BAR

Flexibles hydrauliques en caoutchouc, Tous les produits/

Informations complémentaires

Matériau	caoutchouc synthétique
Température maximale de service [°C]	120
Température de service minimale [°C]	-40
Renfort	4 tresses en acier

Flexible hydraulique multi-tresses pour pression élevée et constante, tous diamètres. Flexible à flexibilité accrue (rayon de courbure 50 % supérieur à la norme standard). Durée de vie confirmée par un test de 500 000 cycles d’impulsions. Couche extérieure résistante à la flamme (MSHA). Utilisé dans les systèmes hydrauliques des engins de chantier de grande taille et tout type d’équipement à entraînement hydraulique. Normes : ISO 18752 CLASSE 350 CC. Couche intérieure : caoutchouc synthétique noir. Renfort : quatre couches de fil d’acier spiralé. Couche extérieure : caoutchouc synthétique noir. Pression de service : 350 bar. Température de service : de -40°C à +120°C (huile hydraulique).

Liste des variantes de produit

Référence article	Nom de la variante du produit	DN	BAR	Disponibilité	Actions
HW-CWP-350-13	Flexible hydraulique ADVANSTAR CWP 350 bar 1/2" MSHA	12	350	En stock	Demande
HW-CWP-350-16	Tuyau hydraulique ADVANSTAR CWP 350 bar 5/8" MSHA	16	350	En stock	Demande
HW-CWP-350-19	Tuyau hydraulique ADVANSTAR CWP 350 bar 3/4" MSHA	20	350	En stock	Demande
HW-CWP-350-25	Flexible hydraulique ADVANSTAR CWP 350 bar 1" MSHA	25	350	En stock	Demande
HW-CWP-350-32	Flexible hydraulique ADVANSTAR CWP 350 bar 1.1/4" MSHA	32	350	En stock	Demande

Vous avez besoin d'une plus grande quantité de produits ou d'un devis personnalisé ?

Appelez-nous : +33 679 352 568 ou envoyez-nous un e-mail : wirthjeanpierre@aol.fr

Envoyer une demande

Flexible hydraulique multi-tresses pour pression élevée et constante, tous diamètres. Flexible à flexibilité accrue (rayon de courbure 50 % supérieur à la norme standard). Durée de vie confirmée par un test de 500 000 cycles d’impulsions. Couche extérieure résistante à la flamme (MSHA). Utilisé dans les systèmes hydrauliques des engins de chantier de grande taille et tout type d’équipement à entraînement hydraulique. Normes : ISO 18752 CLASSE 350 CC. Couche intérieure : caoutchouc synthétique noir. Renfort : quatre couches de fil d’acier spiralé. Couche extérieure : caoutchouc synthétique noir. Pression de service : 350 bar. Température de service : de -40°C à +120°C (huile hydraulique).
