Is the Reducing adapter with BSPT male/ BSP female thread, stainless steel, type 62040 suitable for use at 140 bar and temperatures between -20Â°C and +225Â°C?

Yes. The Reducing adapter with BSPT male/ BSP female thread, stainless steel, type 62040 is suitable for use at 140 bar and temperatures between -20Â°C and +225Â°C. The product description specifies material AISI 316L, an operating temperature range of -20Â°C to +225Â°C, and a working pressure of 140 bar, which match the conditions you stated. Ensure compatibility with your systemâs media and thread sealing method before installation.

Can the Reducing adapter with BSPT male/ BSP female thread, stainless steel, type 62040 be used in corrosive environments at 225Â°C?

Yes. The Reducing adapter with BSPT male/ BSP female thread, stainless steel, type 62040 (AISI 316L) is rated for operation up to +225Â°C and a working pressure of 140 bar, so it can be used in corrosive environments at 225Â°C provided AISI 316L is chemically compatible with the specific corrosive media and concentrations involved. Verify compatibility for your exact chemicals, concentrations, and exposure duration (localized corrosion, pitting, crevice corrosion, chlorides, etc.), and ensure assembly, seals and any mating components are also suitable for 225Â°C and the corrosive conditions.

Does the Reducing adapter with BSPT male/ BSP female thread, stainless steel, type 62040 support pressure spikes above 140 bar?

Reducing adapter with BSPT male/ BSP female thread, stainless steel, type 62040 is specified with a working pressure of 140 bar. This value represents the maximum continuous operating pressure for which the component is rated under normal service conditions and within the stated temperature range (-20Â°C to +225Â°C). It is not a guarantee that the adapter will withstand pressure spikes significantly above 140 bar. Pressure spikes (transients) can produce short-duration loads exceeding the working pressure; whether the adapter tolerates such spikes depends on factors not provided in the description, including spike magnitude, duration, frequency, system dynamics, joint and installation quality, presence of hydraulic shock suppression, and safety factors used in design. Material AISI 316L and stainless-steel construction provide good strength and corrosion resistance, but the safe transient capacity must be determined by the manufacturerâs fatigue and burst-pressure data or relevant standards/testing (e.g., burst pressure, proof testing, and certification). Recommendation: Do not assume safe operation above 140 bar. Contact the manufacturer or supplier for explicit information on allowable pressure spikes, burst pressure, proof-test values, and any applicable safety factors or certifications. If spikes above 140 bar are expected, use pressure dampening devices or select a component rated for the higher peak pressures.

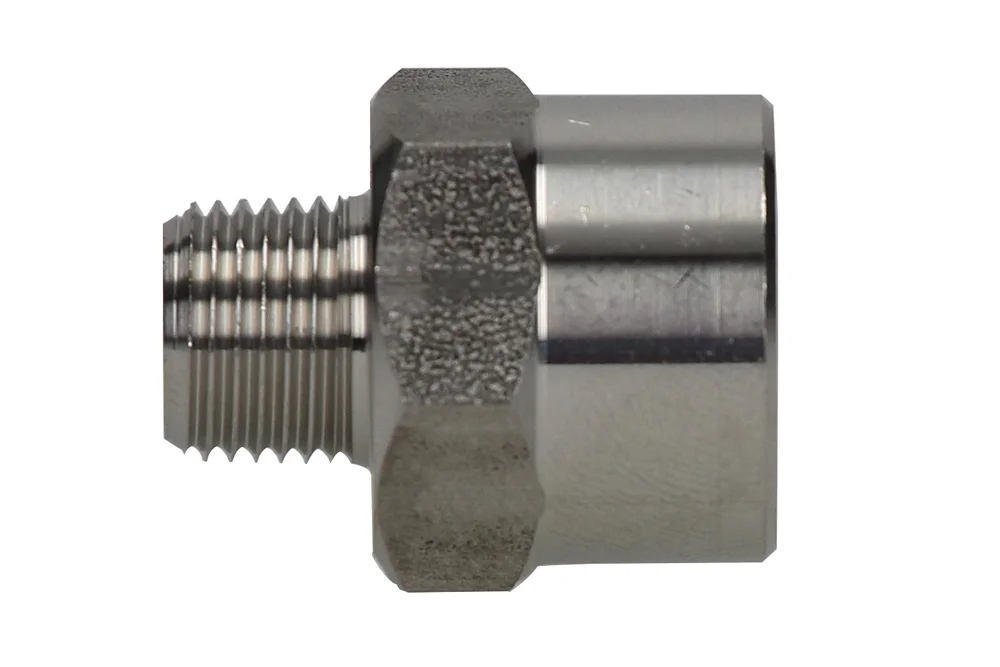

Adaptateur réducteur avec filetage mâle BSPT / femelle BSP, acier inoxydable, type 62040

Raccords pneumatiques filetés, Tous les produits/

Informations complémentaires

Matériau	SS – acier inoxydable

Adaptateur réducteur en acier inoxydable type 62040 avec filetage externe BSPT et filetage interne BSP. Matière : acier AISI 316L. Température de service : de -20°C à +225°C. Pression de service : 140 bar.

Liste des variantes de produit

Référence article	Nom de la variante du produit	DN	BAR	Disponibilité	Actions
AI-62040-02-04	Réduction GZ 1/8" BSPT / GW 1/4" BSP, AISI 316L	-	140	En stock	Demande
AI-62040-04-06	Réduction M 1/4" BSPT / F 3/8" BSP, AISI 316L	-	140	En stock	Demande
AI-62040-04-08	Réduction mâle 1/4" BSPT / femelle 1/2" BSP, AISI 316L	-	140	En stock	Demande
AI-62040-06-08	Réduction mâle 3/8" BSPT / femelle 1/2" BSP, AISI 316L	-	140	En stock	Demande
AI-62040-08-12	Raccord réducteur mâle 1/2" BSPT / femelle 3/4" BSP, AISI 316L	-	140	En stock	Demande

Vous avez besoin d'une plus grande quantité de produits ou d'un devis personnalisé ?

Appelez-nous : +33 679 352 568 ou envoyez-nous un e-mail : wirthjeanpierre@aol.fr

Envoyer une demande

Adaptateur réducteur en acier inoxydable type 62040 avec filetage externe BSPT et filetage interne BSP. Matière : acier AISI 316L. Température de service : de -20°C à +225°C. Pression de service : 140 bar.
