Can Nickel-plated brass adaptor with GZ BSPT/GW BSP, type A4 be used with Teflon tape for tapered threads and washers for cylindrical threads to ensure leak-free pneumatic connections at 60 bar?

Yes . Nickel-plated brass adaptor with GZ BSPT/GW BSP, type A4 can be used with PTFE (Teflon) tape on tapered (BSPT) threads and with metal washers (aluminum or copper) on cylindrical (BSP) threads to achieve leak-free pneumatic connections at up to 60 bar, provided proper installation practice is followed. Key points for reliable sealing: - Use PTFE tape or a compatible thread sealant on the tapered (GZ BSPT) male threads only. Wrap 3â5 turns clockwise (looking at the male thread) and avoid overfilling so mating threads engage fully. - Use flat aluminum or copper washers on the cylindrical (GW BSP) joints where the seal is achieved by a face contact; choose washer thickness and diameter matching the fitting specifications. - Tighten to the manufacturer-recommended torque or hand-tight plus a defined wrench turn; avoid over-torquing brass to prevent thread damage or distortion that can cause leaks. - Inspect fittings and washers for damage, clean mating surfaces, and ensure threads are compatible (BSPT vs BSP). Nickel plating aids corrosion resistance but does not replace proper seals. - For critical or high-cycle applications at 60 bar, consider pressure-testing the assembly and, if needed, use thread sealants rated for pneumatic high-pressure service or consult the component supplier for validation. When these guidelines are followed, the Nickel-plated brass adaptor with GZ BSPT/GW BSP, type A4 is suitable for achieving leak-free connections at the specified working pressure.

Is the Nickel-plated brass adaptor with GZ BSPT/GW BSP, type A4 suitable for 60 bar pneumatic use with Teflon tape on tapered threads and washers on cylindrical threads?

Yes. The Nickel-plated brass adaptor with GZ BSPT/GW BSP, type A4 is specified for pneumatic use with a working pressure of 60 bar. Use Teflon tape or thread sealant on the tapered (BSPT) male threads and aluminum/copper washers on the cylindrical (BSP) female threads to achieve proper sealing. Ensure threads are correctly engaged and avoid over-tightening to prevent damage to nickel-plated brass. For critical or high-cycle applications, verify compatibility with media, temperature range and consult application-specific safety factors or supplier guidance.

Can I use Nickel-plated brass adaptor with GZ BSPT/GW BSP, type A4 with tape on tapered threads and washers on cylindrical ones for pneumatic 60 bar?

Yes. Nickel-plated brass adaptor with GZ BSPT/GW BSP, type A4 can be used for pneumatic service up to 60 bar provided you follow correct sealing practice and installation precautions. Key points: - The adapter is specified for pneumatic connections and rated to 60 bar, so the base material and design are suitable for that pressure. - For tapered (BSPT) external threads use appropriate PTFE (Teflon) tape or a suitable thread sealant rated for pneumatic use; wrap correctly (clockwise looking at the end) and avoid over-wrapping which can prevent full engagement. - For cylindrical (BSP/GW) internal threads rely on flat washers (aluminum or copper) as recommended; ensure the correct washer size and that it is properly compressed to form a metal-to-metal seal. - Inspect components: ensure mating threads are undamaged and compatible (BSPT to BSPT taper, BSP cylindrical to BSP parallel), and that hose fittings and ferrules are rated for 60 bar. - Torque and assembly: tighten to manufacturer-recommended torque or to a secure fit without distortion; over-tightening can deform washers or threads and under-tightening risks leaks. - Safety checks: pressure-test the assembled system at working pressure or slightly above in a controlled manner, and check for leaks with a suitable method (soapy water, leak detector). - Consider environment and media: nickel-plated brass is generally corrosion-resistant, but verify compatibility with the specific gas, temperature range, and any contaminants. If any component in the assembly (hoses, fittings, washers, sealant) is rated below 60 bar, replace it with appropriately rated parts before pressurizing.

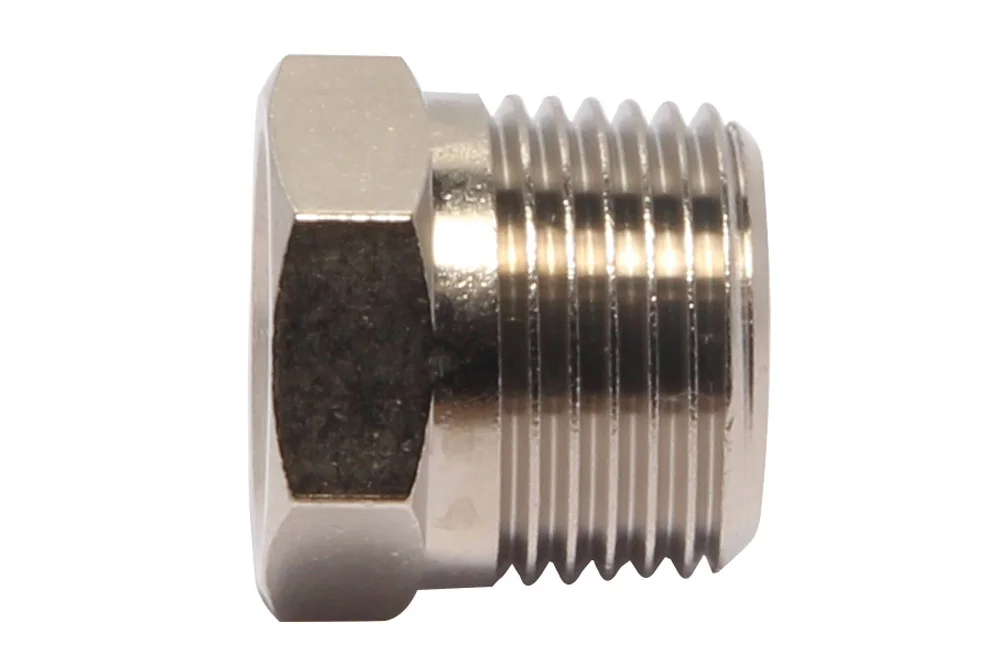

Adaptateur en laiton nickelé avec GZ BSPT/GW BSP, type A4

Raccords pneumatiques filetés, Tous les produits/

Informations complémentaires

Matériau	B – laiton (bronze)

Adaptateur filetage BSPT externe/BSP interne type A4, destiné à l’assemblage de composants pneumatiques (y compris des flexibles). L’étanchéité de la connexion nécessite généralement l’utilisation de joints supplémentaires. En cas de filetage conique, on utilise du ruban PTFE ou un produit d’étanchéité ; pour un filetage cylindrique, des rondelles en aluminium ou en cuivre sont utilisées. Matière : laiton nickelé. Pression de service : 60 bar.

Liste des variantes de produit

Référence article	Nom de la variante du produit	DN	BAR	Disponibilité	Actions
MW-2104001	Adaptateur A4, femelle BSP 1/8" / mâle BSPT 1/4"	-	60	En stock	Demande
MW-2104002	Adaptateur A4, BSP femelle 1/8" / BSPT mâle 3/8"	-	60	En stock	Demande
MW-2104003	Adaptateur A4, femelle BSP 1/4" / mâle BSPT 3/8"	-	60	En stock	Demande
MW-2104004	Adaptateur A4, femelle BSP 1/4" / mâle BSPT 1/2"	-	60	En stock	Demande
MW-2104005	Adaptateur A4, femelle BSP 3/8" / mâle conique BSPT 1/2"	-	60	En stock	Demande
MW-2104006	Adaptateur A4, femelle BSP 1/2" / mâle BSPT 3/4"	-	60	En stock	Demande

Vous avez besoin d'une plus grande quantité de produits ou d'un devis personnalisé ?

Appelez-nous : +33 679 352 568 ou envoyez-nous un e-mail : wirthjeanpierre@aol.fr

Envoyer une demande

Adaptateur filetage BSPT externe/BSP interne type A4, destiné à l’assemblage de composants pneumatiques (y compris des flexibles). L’étanchéité de la connexion nécessite généralement l’utilisation de joints supplémentaires. En cas de filetage conique, on utilise du ruban PTFE ou un produit d’étanchéité ; pour un filetage cylindrique, des rondelles en aluminium ou en cuivre sont utilisées. Matière : laiton nickelé. Pression de service : 60 bar.
