Is the Adaptor - JIS Komatsu plug with GZ METRIC, carbon steel, type A506 compatible with Komatsu high-pressure systems requiring a 60Â° inverted cone seal?

Yes. The Adaptor - JIS Komatsu plug with GZ METRIC, carbon steel, type A506 is described as a high-pressure plug JIS type A506 with external metric thread and sealing inverted cone 60Â° for KOMATSU. That specification matches Komatsu high-pressure systems that require a 60Â° inverted cone seal, so this Adaptor - JIS Komatsu plug with GZ METRIC, carbon steel, type A506 is compatible.

Does the Adaptor - JIS Komatsu plug with GZ METRIC, carbon steel, type A506 require a torque specification for proper 60Â° inverted cone sealing?

Yes. Adaptor - JIS Komatsu plug with GZ METRIC, carbon steel, type A506 requires a torque specification to achieve proper 60Â° inverted cone metal-to-metal sealing. The sealing depends on correct axial compression and thread engagement; insufficient torque risks leaks, excessive torque risks damage to the cone or threads. Use the manufacturerâs recommended torque values for the specific plug size and thread class, or calculate based on material (galvanized carbon steel), thread pitch, and lubrication. If no manufacturer data is available, determine torque via controlled assembly tests to confirm leak-free sealing without overstressing components.

Can the Adaptor - JIS Komatsu plug with GZ METRIC, carbon steel, type A506 be used with hydraulic fluids other than mineral oil?

Adaptor - JIS Komatsu plug with GZ METRIC, carbon steel, type A506 is designed primarily as a mechanical sealing component (external metric thread, inverted cone 60Â°) made of carbon steel with galvanised surface treatment. Compatibility with hydraulic fluids depends on two main factors: material compatibility (carbon steel + galvanization) and the seal system used in the hydraulic circuit (if any elastomers are present at the joint). 1. Carbon steel base: Carbon steel itself is generally compatible with a wide range of hydraulic fluids including mineral oils, many synthetic esters, and some polyalphaolefins (PAOs). However, corrosion resistance varies; galvanisation improves corrosion protection but can be attacked by certain fluids, additives, or prolonged exposure to water-contaminated fluids. 2. Galvanised coating: Zinc coating resists corrosion in many environments but can react with aggressive fluids (some phosphate esters, certain fire-resistant fluids, water-glycol mixes with high pH or contaminants) leading to degradation of the coating and potential galvanic issues. 3. Sealing considerations: The plug seals by metal-to-metal inverted cone (60Â°). If the system uses additional elastomer seals (O-rings, washers) near the plug, compatibility of those elastomers with non-mineral fluids must be checked separately. Fire-resistant fluids (phosphate esters, water-glycol, some synthetic fluids) often require specific seal materials and corrosion-resistant metals (stainless steels, special coatings). Conclusion: Adaptor - JIS Komatsu plug with GZ METRIC, carbon steel, type A506 can be used with many hydraulic fluids beyond mineral oil (e.g., some synthetics like PAOs and certain esters) but compatibility is not universal. Avoid or verify use with aggressive or fire-resistant fluids (phosphate esters, some water-based fluids) without consulting the fluid and coating manufacturers. For critical applications, test for corrosion and sealing performance or choose a plug/material specified for the intended fluid (stainless steel or approved coatings and compatible seal materials).

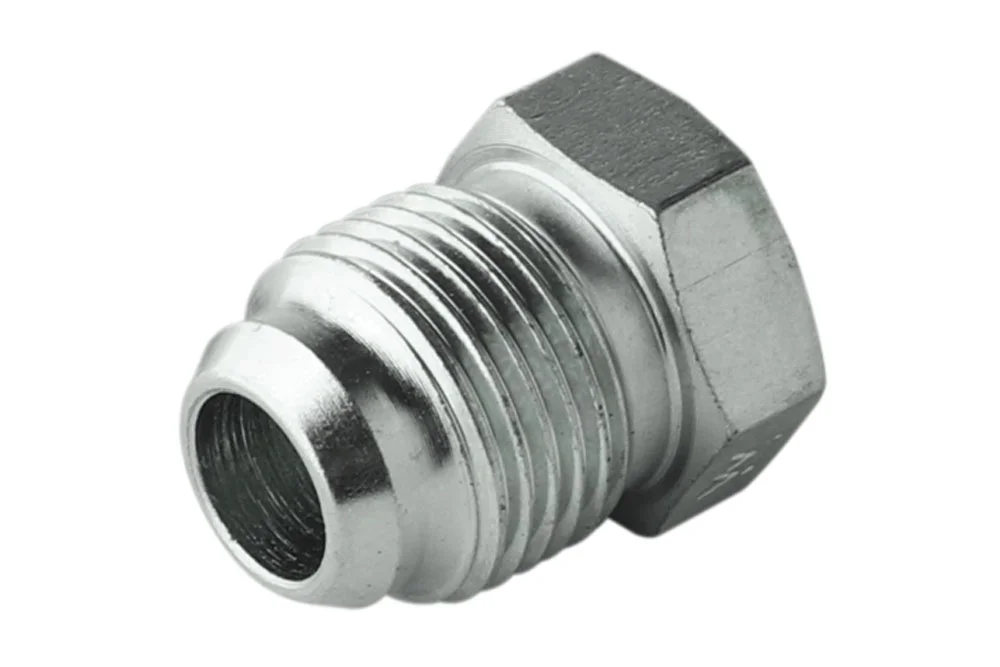

Adaptateur – bouchon JIS Komatsu filetage mâle MÉTRIQUE, acier au carbone, type A506

Adaptateurs haute pression, Tous les produits/

Informations complémentaires

Matériau	CS – acier (fonte)

Adaptateur – bouchon haute pression JIS type A506 avec filetage mâle métrique (étanchéité par cône inversé 60°) – KOMATSU. Matière : acier au carbone, galvanisé.

Liste des variantes de produit

Référence article	Nom de la variante du produit	DN	BAR	Disponibilité	Actions
TI-A506-14	Bouchon filetage mâle M14x1,5 JIS	-	345	En stock	Demande
TI-A506-16	Bouchon filetage mâle M16x1,5 JIS	-	345	En stock	Demande
TI-A506-18	Bouchon filetage mâle M18x1,5 JIS	-	345	En stock	Demande
TI-A506-22	Bouchon filetage mâle M22x1,5 JIS	-	345	En stock	Demande
TI-A506-24	Bouchon filetage mâle M24x1,5 JIS	-	275	En stock	Demande
TI-A506-30	Bouchon filetage mâle M30x1,5 JIS	-	205	En stock	Demande
TI-A506-33	Bouchon filetage mâle M33x1,5 JIS	-	205	En stock	Demande

Vous avez besoin d'une plus grande quantité de produits ou d'un devis personnalisé ?

Appelez-nous : +33 679 352 568 ou envoyez-nous un e-mail : wirthjeanpierre@aol.fr

Envoyer une demande

Adaptateur – bouchon haute pression JIS type A506 avec filetage mâle métrique (étanchéité par cône inversé 60°) – KOMATSU. Matière : acier au carbone, galvanisé.
