Is the Hydraulic adapter - JIS Toyota reduction with swivel nut GW BSP x GZ BSPT, carbon steel, type A404 compatible with standard BSP and BSPT hose fittings?

Yes. Hydraulic adapter - JIS Toyota reduction with swivel nut GW BSP x GZ BSPT, carbon steel, type A404 is compatible with standard BSP and BSPT hose fittings. Its design includes an internal BSP thread (sealing on an inverted 60Â° cone) and an external BSPT thread (sealing on the thread), specifically intended to join hydraulic hoses and pipes to pumps, valves, quick couplings and other installation components. It allows reduction of thread type and size while maintaining proper sealing methods for BSP (cone) and BSPT (tapered thread), and is made of carbon steel with galvanised finish for typical hydraulic system use. Ensure matching thread sizes and sealing faces on the mating fittings when installing.

Can the Hydraulic adapter - JIS Toyota reduction with swivel nut GW BSP x GZ BSPT, carbon steel, type A404 be used in high-pressure hydraulic systems?

Yes. The Hydraulic adapter - JIS Toyota reduction with swivel nut GW BSP x GZ BSPT, carbon steel, type A404 is designed for highâpressure hydraulic systems. Its construction (carbon steel, galvanized) and JIS A404 design with internal BSP (60Â° inverted cone) and external BSPT (thread sealing) make it suitable for connecting hoses, pipes and components like pumps, valves and quick couplings under high pressure. Ensure you match the adapterâs size, thread types and pressure rating to your system specifications and follow manufacturer pressure limits and installation torque to maintain safe, leakâfree operation.

Does the Hydraulic adapter - JIS Toyota reduction with swivel nut GW BSP x GZ BSPT, carbon steel, type A404 require a specific sealing compound?

Hydraulic adapter - JIS Toyota reduction with swivel nut GW BSP x GZ BSPT, carbon steel, type A404 does not normally require an additional sealing compound for the internal BSP (inverted cone 60Â°) mating face because that connection seals metal-to-metal at the inverted cone. The external BSPT thread, however, seals on the thread; BSPT is a taper thread that typically relies on either thread deformation or a thread sealant/tape to ensure leak-free performance. Good practice: - Do not apply sealant to the inverted cone sealing surface; keep it clean and undamaged. - For the BSPT (external taper) thread, use an appropriate thread sealant compatible with hydraulic oil and carbon steel, or use PTFE tape rated for hydraulic service, applied sparingly and not contaminating the sealing cone. - Use sealants approved for the systemâs fluid, pressure and temperature (avoid sealants that could harden, degrade, or introduce particles). - Follow manufacturer or system guidelines for torque and sealing methods. If in doubt, consult the adapter or system manufacturer for recommended sealants and installation procedures.

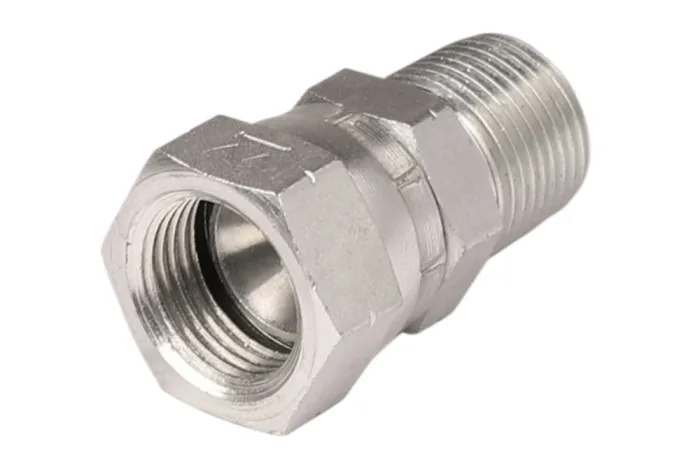

Adaptateur hydraulique – réduction JIS Toyota avec écrou tournant filetage femelle BSP x filetage mâle BSPT, acier au carbone, type A404

Adaptateurs haute pression, Tous les produits/

Informations complémentaires

Matériau	CS – acier (fonte)

Adaptateur haute pression JIS type A404 avec filetage femelle BSP (étanchéité par cône inversé 60°) – TOYOTA et avec filetage mâle BSPT (étanchéité sur le filetage). Utilisé dans les installations d’hydraulique de puissance pour raccorder des conduites hydrauliques flexibles et des tubes à d’autres éléments de l’installation (pompes, vannes, raccords rapides, etc.). Permet la réduction du type et de la taille, conformément aux raccordements des éléments assemblés. Matière : acier au carbone, galvanisé.

Liste des variantes de produit

Référence article	Nom de la variante du produit	DN	BAR	Disponibilité	Actions
TI-A404-04-04	Adaptateur femelle BSP 1/4" JIS / mâle BSPT 1/4"	-	345	En stock	Demande
TI-A404-06-06	Adaptateur femelle BSP 3/8" JIS / mâle BSPT 3/8"	-	250	En stock	Demande
TI-A404-08-08	Adaptateur femelle BSP 1/2" JIS / mâle BSPT 1/2"	-	225	En stock	Demande
TI-A404-12-12	Adaptateur femelle BSP 3/4" JIS / mâle BSPT 3/4"	-	200	En stock	Demande
TI-A404-16-16	Adaptateur femelle BSP 1" JIS / mâle BSPT 1"	-	160	En stock	Demande

Vous avez besoin d'une plus grande quantité de produits ou d'un devis personnalisé ?

Appelez-nous : +33 679 352 568 ou envoyez-nous un e-mail : wirthjeanpierre@aol.fr

Envoyer une demande

Adaptateur haute pression JIS type A404 avec filetage femelle BSP (étanchéité par cône inversé 60°) – TOYOTA et avec filetage mâle BSPT (étanchéité sur le filetage). Utilisé dans les installations d’hydraulique de puissance pour raccorder des conduites hydrauliques flexibles et des tubes à d’autres éléments de l’installation (pompes, vannes, raccords rapides, etc.). Permet la réduction du type et de la taille, conformément aux raccordements des éléments assemblés. Matière : acier au carbone, galvanisé.
