Does the Adaptor - nipple GZ BSP x GZ METRIC, carbon steel, type A601 support both 60Â° cone seal BSP and metric external threads under high pressure?

Yes. The Adaptor - nipple GZ BSP x GZ METRIC, carbon steel, type A601 is designed with external BSP threads and external metric threads, both featuring 60Â° cone seals, and is specified as a high-pressure adaptor made of galvanized carbon steel. Therefore it supports both 60Â° cone seal BSP and 60Â° cone seal metric external threads under high-pressure conditions.

Is the Adaptor - nipple GZ BSP x GZ METRIC, carbon steel, type A601 suitable for high-pressure systems using 60Â° cone seal BSP and metric external threads?

Yes. Adaptor - nipple GZ BSP x GZ METRIC, carbon steel, type A601 is suitable for high-pressure systems that use 60Â° cone seal BSP and metric external threads. It features external BSP (60Â° cone) and external metric (60Â° cone) threads and is made of galvanized carbon steel, which provides the strength and corrosion resistance required for high-pressure applications. Ensure thread sizes, pressure ratings, and compatibility with system media and temperature are matched to your specific system specifications before installation.

Can the Adaptor - nipple GZ BSP x GZ METRIC, carbon steel, type A601 be used with 60Â° cone seal fittings in corrosive environments?

Adaptor - nipple GZ BSP x GZ METRIC, carbon steel, type A601 is designed for 60Â° cone seal fittings (both BSP and metric external threads). However, its materialâcarbon steel, galvanizedâlimits suitability in corrosive environments. Zinc galvanizing provides some corrosion resistance for mild conditions, but it is generally inadequate for aggressive chemical, marine, or high-humidity environments where pitting, galvanic corrosion, or rapid coating breakdown can occur. Additionally, the effectiveness of the 60Â° cone seal depends on precise surface integrity; corrosion can compromise sealing surfaces and lead to leaks. Recommendation: - For mildly corrosive atmospheres and intermittent exposure, it may be acceptable with regular inspection and maintenance. - For persistent, aggressive, or marine corrosive environments, choose corrosion-resistant materials (stainless steel grades like 316/316L, duplex, or specially coated options) rated for the specific media and conditions. - Verify compatibility with the fluid, temperature, pressure, and any regulatory requirements; perform corrosion allowance calculations or consult manufacturer datasheets for long-term use. In summary, Adaptor - nipple GZ BSP x GZ METRIC, carbon steel, type A601 can be used with 60Â° cone seal fittings but is not recommended for corrosive environments without additional protective measures or alternative materials.

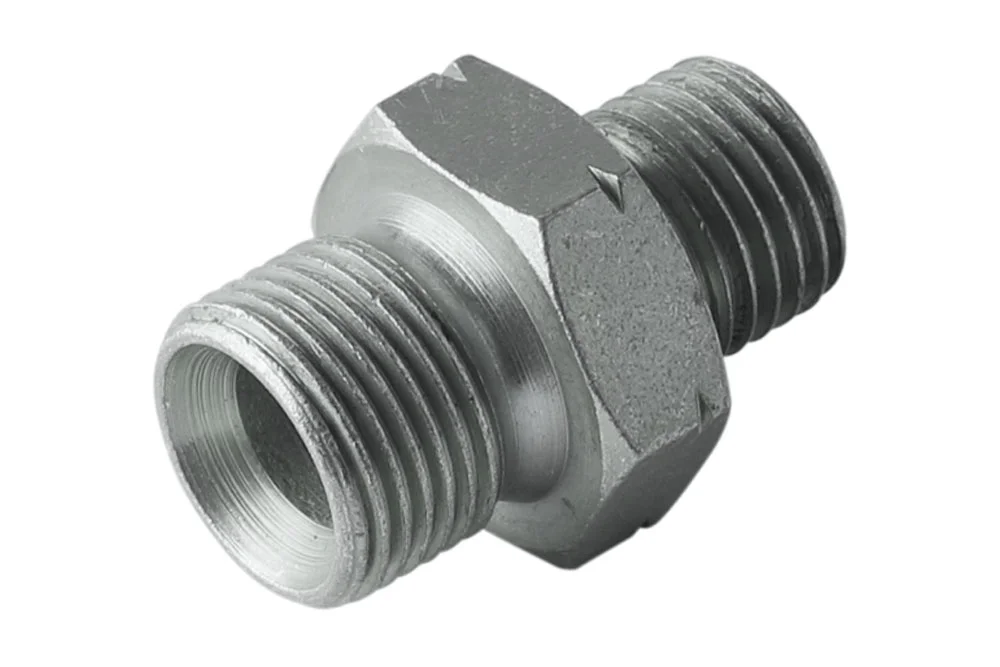

Adaptateur – mamelon mâle BSP x mâle métrique, acier au carbone, type A601

Adaptateurs haute pression, Tous les produits/

Informations complémentaires

Matériau	CS – acier (fonte)
Longueur standard [m]	10, 2

Adaptateur haute pression type A601 avec filetage mâle BSP (étanchéité par cône 60°) et filetage mâle métrique (étanchéité par cône 60°). Matériau : acier au carbone, galvanisé.

Liste des variantes de produit

Référence article	Nom de la variante du produit	DN	BAR	Disponibilité	Actions
TI-A601-04-12	Adaptateur filetage mâle BSP 1/4" / filetage mâle M12x1,5	-	400	En stock	Demande
TI-A601-04-14	Adaptateur filetage mâle BSP 1/4" / filetage mâle M14x1,5	-	400	En stock	Demande
TI-A601-06-14	Adaptateur filetage mâle BSP 3/8" / filetage mâle M14x1,5	-	400	En stock	Demande
TI-A601-06-16	Adaptateur filetage mâle BSP 3/8" / filetage mâle M16x1,5	-	400	En stock	Demande
TI-A601-06-18	Adaptateur filetage mâle BSP 3/8" / filetage mâle M18x1,5	-	400	En stock	Demande
TI-A601-08-18	Adaptateur filetage mâle BSP 1/2" / filetage mâle M18x1,5	-	350	En stock	Demande
TI-A601-08-20	Adaptateur filetage mâle BSP 1/2" / filetage mâle M20x1,5	-	350	En stock	Demande
TI-A601-08-22	Adaptateur filetage mâle BSP 1/2" / filetage mâle M22x1,5	-	350	En stock	Demande
TI-A601-12-22	Adaptateur filetage mâle BSP 3/4" / filetage mâle M22x1,5	-	315	En stock	Demande
TI-A601-12-24	Adaptateur filetage mâle BSP 3/4" / filetage mâle M24x1,5	-	315	En stock	Demande
TI-A601-12-26	Adaptateur filetage mâle BSP 3/4" / filetage mâle M26x1,5	-	315	En stock	Demande
TI-A601-16-30	Adaptateur filetage mâle BSP 1" / filetage mâle M30x1,5	-	250	En stock	Demande
TI-A601-16-38	Adaptateur filetage mâle BSP 1" / filetage mâle M38x1,5	-	200	En stock	Demande

Vous avez besoin d'une plus grande quantité de produits ou d'un devis personnalisé ?

Appelez-nous : +33 679 352 568 ou envoyez-nous un e-mail : wirthjeanpierre@aol.fr

Envoyer une demande

Adaptateur haute pression type A601 avec filetage mâle BSP (étanchéité par cône 60°) et filetage mâle métrique (étanchéité par cône 60°). Matériau : acier au carbone, galvanisé.
