Is the Adaptor 90Â°, compact, with GZ BSP/GW BSP, stainless steel, type A114C compatible with standard BSPP hydraulic ports and do both 60Â° cone seals require separate sealing?

Yes . the Adaptor 90Â°, compact, with GZ BSP/GW BSP, stainless steel, type A114C is compatible with standard BSPP (BSP parallel) hydraulic ports only if those ports are designed to accept 60Â° cone sealing (i.e., BSP with 60Â° cone seat). This adaptor has an external BSP thread with a 60Â° cone sealing and an internal BSP thread with a 60Â° cone sealing plus a swivel nut; it is intended for cone-seat (60Â°) BSP connections rather than plain parallel-thread seals that rely on an Oâring or bonded seal. Both 60Â° cone seals require proper mating cone seats on the counterpart components to achieve metalâtoâmetal sealing. Each cone (male and female) forms its own seal at the 60Â° seating surfaces, so you must ensure both mating faces are present and undamaged. No additional separate soft seals (Oârings) are required for the cone seals themselves, but if your BSPP ports expect an Oâring (BSPP with Oâring face seal), this adaptor is not suitable without an appropriate counterpart or adapter.

Does the Adaptor 90Â°, compact, with GZ BSP/GW BSP, stainless steel, type A114C support swivel nut tightening torque specifications for safe installation?

Adaptor 90Â°, compact, with GZ BSP/GW BSP, stainless steel, type A114C does not include specific swivel nut tightening torque specifications in the provided description. The description lists geometry (90Â°), sealing type (60Â° cone), thread types (external and internal BSP), swivel nut presence, compact version, and material (AISI 316L), but gives no torque values or installation torque guidance. For safe installation, follow manufacturer documentation or standard torque tables for BSP cone fittings in stainless steel, and use proper tools, leak testing and, if available, supplier-recommended torque to avoid overstressing threads or compromising the 60Â° cone seal.

Can Adaptor 90Â°, compact, with GZ BSP/GW BSP, stainless steel, type A114C be used with hoses of differing BSP sizes?

Yes. Adaptor 90Â°, compact, with GZ BSP/GW BSP, stainless steel, type A114C can be used to join hoses or components with differing BSP sizes, but only within certain limits and with correct matching: - The fitting has an external BSP thread (60Â° cone sealing) and an internal BSP thread with a swivel nut (60Â° cone sealing). It is designed to connect two BSP-threaded ports, typically of different diameters, so long as both sides are the appropriate BSP male/female types shown in the product configuration. - You must ensure the thread types are both BSP (BSPP/BSPT as specified). The 60Â° cone sealing indicates a British Standard for tapered/sealed connections. verify whether the hose ends or mating fittings are compatible with 60Â° cone BSP sealing (not all BSP variants or hose fittings use the same sealing style). - Pressure rating, hose bore, and flow restrictions: using mismatched diameters will create a restriction at the adapter. Confirm the adapterâs pressure rating and that the reduced diameter side still meets system pressure and flow requirements. - Material compatibility: AISI 316L stainless steel is suitable for many fluids and environments; ensure chemical compatibility with your media. - Assembly: proper thread engagement, use of correct sealing (if required), and tightening torque are essential for leak-free operation. If one side requires an O-ring or different sealing method, donât mix incompatible sealing systems. In summary: Adaptor 90Â°, compact, with GZ BSP/GW BSP, stainless steel, type A114C can connect differing BSP sizes provided both ends are BSP-compatible (with 60Â° cone sealing as required), pressure/flow and material compatibility are verified, and proper assembly procedures are followed. If unsure, consult the manufacturerâs size/pressure specifications or a hydraulic specialist.

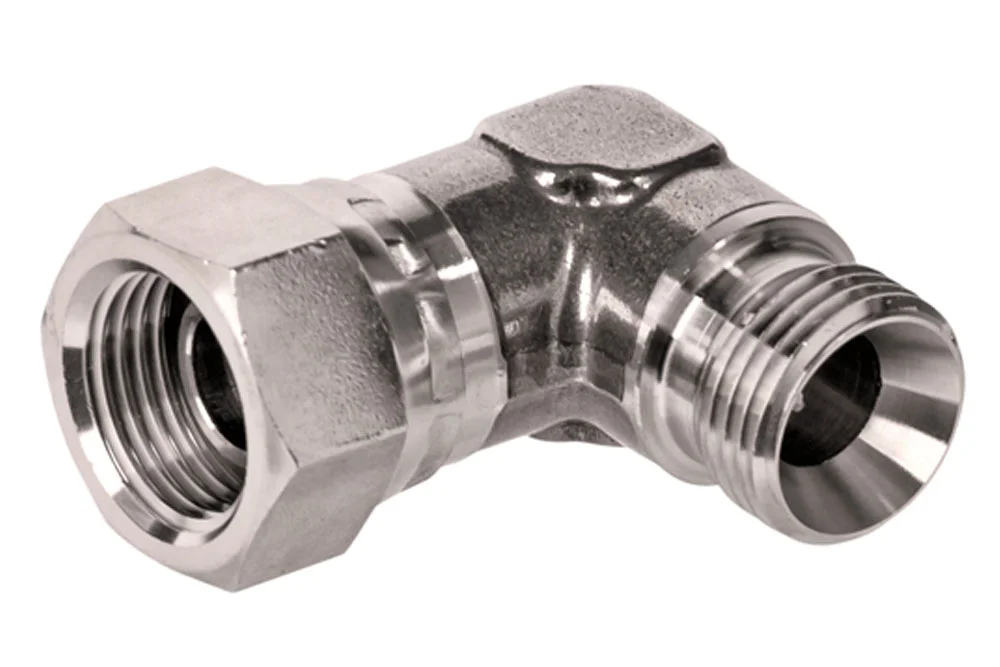

Adaptateur 90°, compact, mâle BSP / femelle BSP, acier inoxydable, type A114C

Adaptateurs haute pression, Tous les produits/

Informations complémentaires

Matériau	SS – acier inoxydable

Adaptateur 90° haute pression type A114C avec filetage mâle BSP (étanchéité par cône 60°) et filetage femelle BSP, avec écrou tournant (étanchéité par cône 60°), version « compacte ». Matériau : acier AISI 316L.

Liste des variantes de produit

Référence article	Nom de la variante du produit	DN	BAR	Disponibilité	Actions
TI-A114C-02-SS	Adaptateur 90° filetage mâle BSP 1/8" / filetage femelle BSP 1/8", AISI 316	-	400	En stock	Demande
TI-A114C-04-SS	Adaptateur 90° filetage mâle BSP 1/4" / filetage femelle BSP 1/4", AISI 316	-	400	En stock	Demande
TI-A114C-06-SS	Adaptateur 90° filetage mâle BSP 3/8" / filetage femelle BSP 3/8", AISI 316	-	400	En stock	Demande
TI-A114C-08-SS	Adaptateur 90° filetage mâle BSP 1/2" / filetage femelle BSP 1/2", AISI 316	-	350	En stock	Demande
TI-A114C-12-SS	Adaptateur 90° filetage mâle BSP 3/4" / filetage femelle BSP 3/4", AISI 316	-	315	En stock	Demande
TI-A114C-16-SS	Adaptateur 90° filetage mâle BSP 1" / filetage femelle BSP 1", AISI 316	-	250	En stock	Demande
TI-A114C-20-SS	Adaptateur 90° filetage mâle BSP 1.1/4" / filetage femelle BSP 1.1/4", AISI 316	-	200	En stock	Demande
TI-A114C-24-SS	Adaptateur 90° filetage mâle BSP 1.1/2" / filetage femelle BSP 1.1/2", AISI 316	-	160	En stock	Demande

Vous avez besoin d'une plus grande quantité de produits ou d'un devis personnalisé ?

Appelez-nous : +33 679 352 568 ou envoyez-nous un e-mail : wirthjeanpierre@aol.fr

Envoyer une demande

Adaptateur 90° haute pression type A114C avec filetage mâle BSP (étanchéité par cône 60°) et filetage femelle BSP, avec écrou tournant (étanchéité par cône 60°), version « compacte ». Matériau : acier AISI 316L.
