Does the Adaptor 90Â° from GZ BSP/GZ NPT, stainless steel, type A206 support sealing with both 60Â° cone (BSP) and thread sealing (NPT)?

Yes. The Adaptor 90Â° from GZ BSP/GZ NPT, stainless steel, type A206 supports both sealing methods: the external BSP (GZ BSP) side uses 60Â° cone (metal-to-metal) sealing, while the external NPT (GZ NPT) side uses thread sealing. The adapter is made of AISI 316L stainless steel and is designed for high-pressure applications, providing cone sealing on the BSP end and pressure-tight thread sealing on the NPT end.

Can Adaptor 90Â° from GZ BSP/GZ NPT, stainless steel, type A206 be used in high-pressure systems with AISI 316L corrosion resistance?

Yes. Adaptor 90Â° from GZ BSP/GZ NPT, stainless steel, type A206, made of AISI 316L, is suitable for high-pressure systems where corrosion resistance is required. The adapter combines a 60Â° cone BSP external thread (metal-to-metal sealing) and an NPT external thread (thread sealing), and AISI 316L provides excellent corrosion resistance and good mechanical strength for many high-pressure applications. Ensure that the systemâs maximum operating pressure, temperature, and media compatibility match the adapterâs rated specifications and that proper installation (thread sealant/torking and cone seating) is performed to achieve leak-free operation.

Is Adaptor 90Â° from GZ BSP/GZ NPT, stainless steel, type A206 compatible with standard BSP and NPT torque specifications?

Yes. Adaptor 90Â° from GZ BSP/GZ NPT, stainless steel, type A206 is compatible with standard BSP and NPT torque specifications, with the following clarifications: - The adaptor features an external BSP thread with 60Â° cone sealing and an external NPT thread relying on thread (taper) sealing. These are two different sealing methods and require adherence to the appropriate torque/installation practices for each type. - For the BSP (60Â° cone) end: torque should be applied to achieve metal-to-metal cone compression without over-tightening. Follow standard BSP torque ranges for the specific thread size and material (AISI 316L) and use a calibrated torque wrench. Proper thread engagement and the cone seat must be clean and undamaged. - For the NPT (taper) end: torque is applied to create a pressure-tight thread seal; typical NPT practice may also call for a compatible sealant (PTFE tape or pipe dope) unless manufacturer instructions prohibit it. Use standard NPT torque values for the given thread size and consider the effect of sealant on required torque (sealant can lower friction and change torque-to-seal relationship). - Material (AISI 316L) is suitable for applying standard torque values but be mindful of galling; for stainless steel threads, use proper lubrication or anti-seize where recommended to prevent galling and ensure repeatable torque. - Always consult the adaptorâs manufacturer torque recommendations, the thread standard tables for the exact thread sizes, and relevant pressure ratings. If manufacturer-specific torque data is not provided, use standard torque charts for BSP/NPT in stainless steel and adjust for sealants and thread condition. In summary: Adaptor 90Â° from GZ BSP/GZ NPT, stainless steel, type A206 can be installed using standard BSP and NPT torque specifications when you follow the appropriate torque charts, use correct sealing methods for each thread type, and take precautions for stainless-steel threads (lubrication/anti-seize).

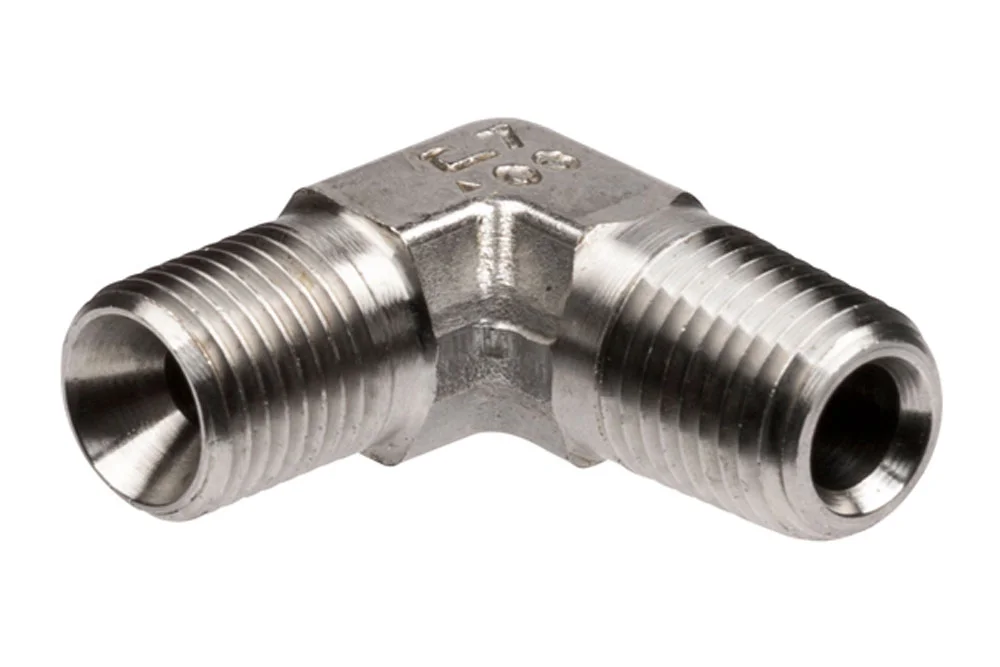

Adaptateur 90° à filetage mâle BSP/filetage mâle NPT, acier inoxydable, type A206

Adaptateurs haute pression, Tous les produits/

Informations complémentaires

Matériau	SS – acier inoxydable

Adaptateur haute pression 90° type A206 à filetage mâle BSP (étanchéité cône 60°) et à filetage mâle NPT (étanchéité sur le filetage). Matière : acier AISI 316L.

Liste des variantes de produit

Référence article	Nom de la variante du produit	DN	BAR	Disponibilité	Prix	Quantité	Actions	Catalogue
TI-A206-04-04-SS	Adaptateur 90° filetage mâle BSP 1/4" / filetage mâle NPT 1/4", AISI 316	-	345	En stock	0 zł		Demande
TI-A206-06-06-SS	Adaptateur 90° filetage mâle BSP 3/8" / filetage mâle NPT 3/8", AISI 316	-	276	En stock	0 zł		Demande

Vous avez besoin d'une plus grande quantité de produits ou d'un devis personnalisé ?

Appelez-nous : +33 679 352 568 ou envoyez-nous un e-mail : wirthjeanpierre@aol.fr

Envoyer une demande

Adaptateur haute pression 90° type A206 à filetage mâle BSP (étanchéité cône 60°) et à filetage mâle NPT (étanchéité sur le filetage). Matière : acier AISI 316L.
